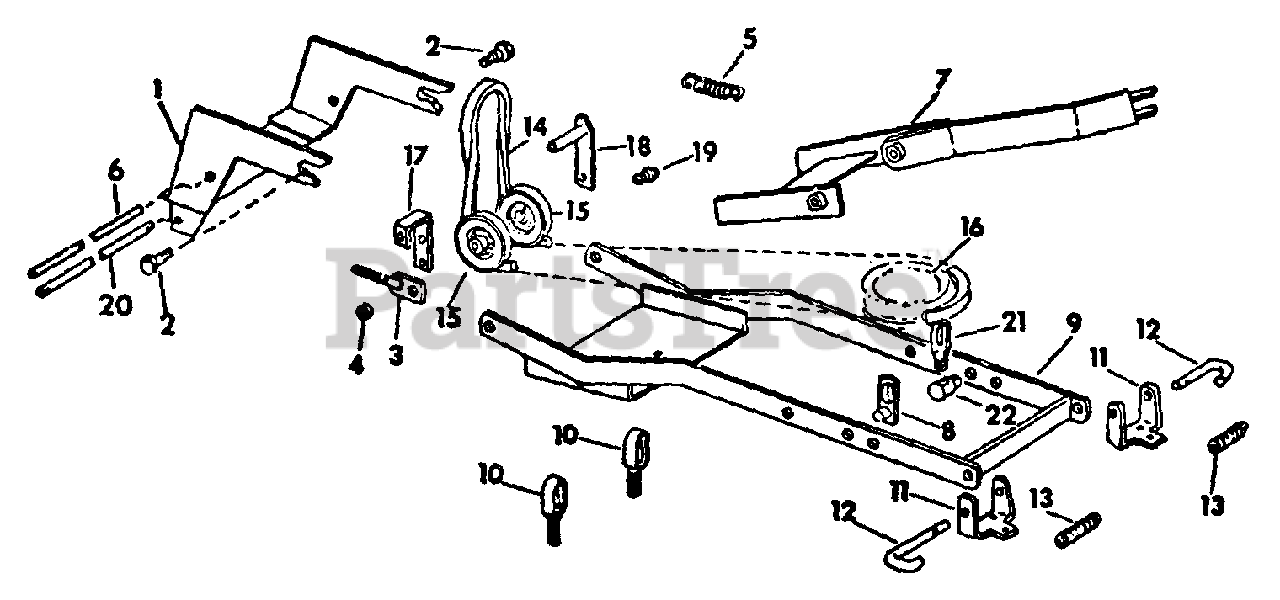

Accessory - Cub Cadet 38" Deck Quick Attach Hitch w/Quick Attachment -38" Blade- Parts Diagram

38" Deck Quick Attach

Hitch w/Quick Attachment -38" Blade- Parts Diagram

  • Title

1

Cub Cadet IH-545681-R1

HANGER ASSY, FRONT

$

$

Currently unavailable

2

NOT USED IN THIS APPLICATION

$

$

Not available

3

Cub Cadet IH-489375-R1

BRACKET ASSY, IDLER ADJUSTING
(Superseded to 959-3092)

$118.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-411597-R1

NUT, 5/16-18 NYLON INSERT LOCK
(Superseded to 912-0429)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

WASHER, 11/32 x 11/16 x .065 C-Z
(Superseded to 936-0275)

$

$

Not available

4

Cub Cadet IH-545687-R1

SPACER IDLER ADJUSTING

$

$

Not available

Cub Cadet IH-180128

SCREW, 3/8-16 x 1-3/4 ZND HEX-HD CAP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120394

WASHER. 13/32 x 13/16 x .065 C-Z
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120382

WASHER. 3/8 ZND REG LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT. 3/8-16 ZND HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

5

Cub Cadet IH-489607-R4

SPRING, MULE DR. EXTENSION

$

$

Not available

6

Cub Cadet IH-545685-R1

SHAFT, IDLER PIVOT

$

$

Not available

Cub Cadet IH-137185

PIN. 1/8 X 1 C-Z COTTER
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-178373-R1

WASHER, 17/32 x 1 x 16 GA C-Z
(Superseded to 936-0160)

$4.49

$

In Stock, Qty 9

0

Cub Cadet IH-20869-R1

WASHER, .531 x .875 x .054
(Superseded to 736-3068)

$6.99

$

In Stock, only 2 left!

0

7

Cub Cadet IH-545693-R1

FRAME ASSY, CENTER

$

$

Not available

Cub Cadet IH-178373-R1

WASHER, 17/32 X 1 x 16 GA C-Z
(Superseded to 936-0160)

$4.49

$

In Stock, Qty 9

0

Cub Cadet IH-26204-R1

PIN, 1/2 x 2.250 HD TYPE 5
(Superseded to 711-0761)

$19.99

$

In Stock, only 4 left!

0

18481-R1

PIN, 3/16 x 1 C-Z COTTER

$

$

Not available

8

Cub Cadet IH-545703-R1

LINK ASSY, LIFT
(Superseded to 759-3097-0498)

$

$

Not available

Cub Cadet IH-473443-R1

PIN, QUICK ATTACHABLE COTTER
(Superseded to 914-3003)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet IH-23042-R1

WASHER 531 x 1.000 x 027
(Superseded to 736-3013)

$4.49

$

In Stock, only 3 left!

0

18481-R1

PIN, 3/16 x 1 C-Z COTTER

$

$

Not available

Cub Cadet IH-178373-R1

WASHER, 17/32 x 1 x 16 GA
(Superseded to 936-0160)

$4.49

$

In Stock, Qty 9

0

9

Cub Cadet IH-545699-R3

FRAME ASSY, OUTER LIFT

$

$

Not available

10

Cub Cadet IH-549992-R1

HANGER, MOWER SUPPORT FRONT
(Superseded to 919-3009)

$69.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-124847

NUT, 5/8-11 HEX JAM
(Superseded to 912-3015)

$4.99

$

In Stock, only 2 left!

0

Cub Cadet IH-20033-R1

NUT, 5/8-11 NYLON LOCK
(Superseded to 712-3016)

$6.99

$

In Stock, Qty 13

0

11

Cub Cadet IH-544100-R4

BRACKET, MOWER SUPPORT
(Superseded to 703-0101-0498)

$

$

Not available

12

Cub Cadet IH-489387-R2

PIN, MOWER SUPPORT
(Superseded to 747-3013)

$22.99

$

In Stock, only 2 left!

0

Cub Cadet IH-19928-R1

PIN, 3/16 x 3/4 HV COILED SPRING
(Superseded to 715-3003)

$6.99

$

In Stock, Qty 7

0

Cub Cadet IH-120396

WASHER, 17/32 x 1-1/16 x .070 C-Z
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet IH-489388-R1

SPRING, MOWER SUPPORT PIN
(Superseded to 932-3007)

$

$

Not available

180123

BOLT 3/8 x 1-1/8 TYPE 5

$

$

Not available

Cub Cadet IH-120394

WASHER, 7/32 x 13/16 x .065 C-Z
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 20377

NUT, 3/8-16 C-Z HEX.

$

$

Currently unavailable

14

Cub Cadet IH-490489-R2

BELT, MULE DRIVE

Note: FOR TRACTORS W/SERIAL NO.529,999 AND BELOW

$44.99

$

In Stock, only 2 left!

0

Cub Cadet IH-473462-R4

BELT, MULE DRIVE

Note: FOR TRACTOR W/SERIAL NO. 530,000 AND ABOVE (EXCEPT 1100 TRACTOR)

$48.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-140024-C1

BELT, MULE DRIVE

$61.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-172451

SCREW, 5/16 x 5/8 H/HD TAP
(Superseded to 710-3021)

$

$

Not available

15

Cub Cadet IH-61176-C92

PULLEY, DRIVE BELT IDLER

$38.99

$

In Stock, only 2 left!

0

16

PULLEY, CENTER

Note: REFER TO MAIN FRAME AND KNIFE UNITS

$

$

Not available

17

Cub Cadet IH-545686-R1

ARM, IDLER LH
(Superseded to 759-3068-0499)

$

$

Not available

18

Cub Cadet IH-545690-R1

ARM ASSY, IDLER RH
(Superseded to 759-3107-0499)

$

$

Not available

19

Cub Cadet 1545688-R1

SPACER, SPRING

$

$

Currently unavailable

180134

SCREW, 3/8-16 x 2-1/2 ZND HEX-HD CAP

$

$

Not available

Cub Cadet IH-18253-R1

NUT, 3/8-16 NYLON INSERT LOCK
(Superseded to 912-0181)

$

$

Not available

20

Cub Cadet IH-545689-R1

SHAFT FRONT HANGER

$

$

Not available

18481-R1

PIN 16 x 1 C-Z COTTER

$

$

Not available

Cub Cadet IH-178373-R1

WASHER, 17/32 x 1 x 16 GA C-Z
(Superseded to 936-0160)

$4.49

$

In Stock, Qty 9

0

21

IH-58773-Cl

LINK, ADJUSTABLE

$

$

Not available

Cub Cadet IH-473443-R1

PIN, QUICK ATTACHABLE COTTER
(Superseded to 914-3003)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet IH-23042-R1

WASHER, .531 x 1.000 x .027
(Superseded to 736-3013)

$4.49

$

In Stock, only 3 left!

0

18481-R1

PIN, 3/16 x 1 C-Z COTTER

$

$

Not available

Cub Cadet IH-178373-R1

WASHER, 17/32 x 1 x 16 GA
(Superseded to 936-0160)

$4.49

$

In Stock, Qty 9

0

22

IH-58774-Cl

BLOCK, ADJUSTING

$

$

Not available
