Accessory - Cub Cadet 38", 42", 48" Quick Attach Hitch att 3 Spindle - Hitch, W/quick Attachment Parts Diagram

38", 42", 48" Quick Attach Hitch

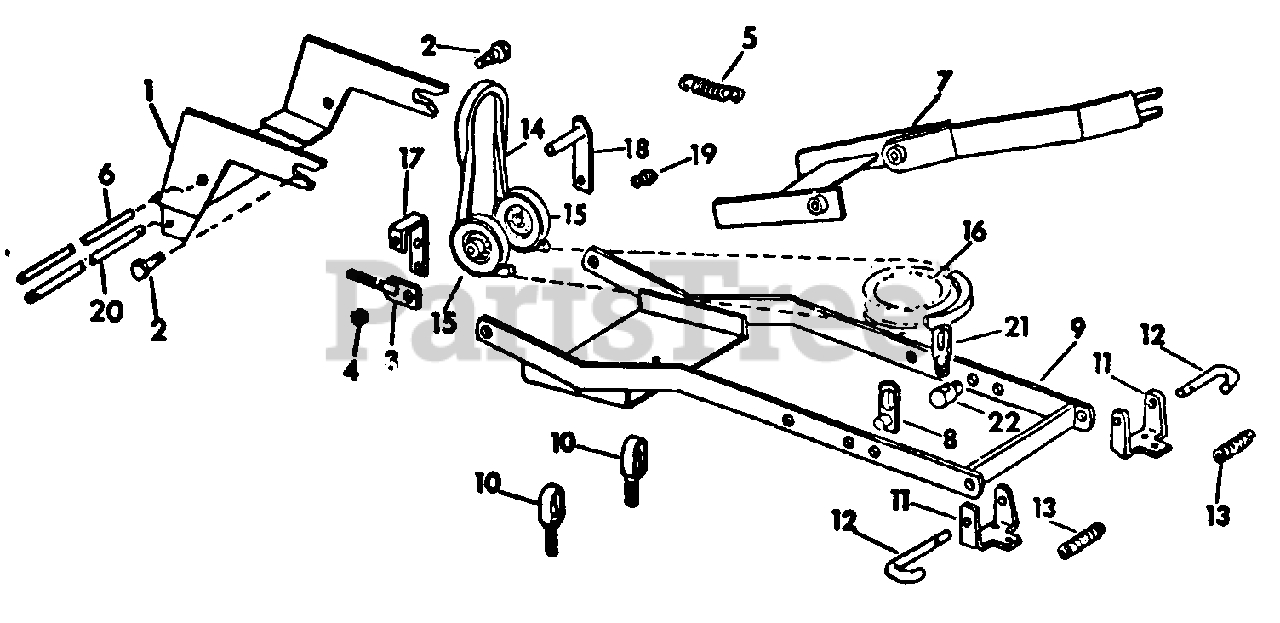

3 Spindle - Hitch, W/quick Attachment Parts Diagram

  • Title

1

Cub Cadet 545-681-R1

Hanger Assy, Front

$

$

Currently unavailable

Cub Cadet 364-436-R1

Pin, 3/16 X 1 Hv Coiled Spring

$

$

Currently unavailable

2

Cub Cadet 489-374-R1

Bolt, Shoulder

$

$

Currently unavailable

Cub Cadet HI-120396

Washer, 17/32 X 1-1/16 X .095

$

$

Currently unavailable

3

Cub Cadet 489-375-R1

Bracket Assy, Idler Adj

$

$

Currently unavailable

Cub Cadet 411-597-R1

Nut, 5/16-18 Nylon Insert Lock

$

$

Currently unavailable

Cub Cadet IH-120393

Washer, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

4

Cub Cadet 545-687-R1

Spacer, Idler Adj

$

$

Currently unavailable

Cub Cadet IH-180128

Screw, 3/8-16 X 1-3/4 Znd Hex-Hd Cap
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120394

Washer, 13/32 X 13/16 X .065 C-Z
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120382

Washer, 3/8 Znd Reg Lock
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 6

0

5

Cub Cadet 489-607-R4

Spring, Mule Drive Extension

$

$

Currently unavailable

6

Cub Cadet 545-685-R1

Shaft, Idler Pivot

$

$

Currently unavailable

Cub Cadet IH-137185

Pin, 1/8 X 1 C-Z Cotter
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 178-373-R1

Washer, 17/32 X 1 X 16 Ga C-Z

$

$

Currently unavailable

Cub Cadet 20-869-R1

Washer, 17/32 X 7/8 X 16 Ga C-Z

$

$

Currently unavailable

7

Cub Cadet 545-693-R1

Frame Assy, Center

$

$

Currently unavailable

Cub Cadet 178-373-R1

Washer, 17/32 X 1 X .065 C-Z

$

$

Currently unavailable

Cub Cadet 21-932-R1

Pin, 1/2 X 2 C-Z Std-Hd

$

$

Currently unavailable

Cub Cadet 18-481-R1

Pin, 3/16 X 1 C-Z Cot

$

$

Currently unavailable

8

Cub Cadet 545-703-R1

Link Assy, Lift

$

$

Currently unavailable

Cub Cadet 473-443-R1

Pin, Quick Attachable Cotter

$

$

Currently unavailable

Cub Cadet 23-042-R1

Washer, 17/32 X 1 X 22 Ga

$

$

Currently unavailable

Cub Cadet 18-481-R1

Pin, 3/16 X 1 C-Z Cotter

$

$

Currently unavailable

Cub Cadet 178-373-R1

Washer, 17/32 X 1 X 16 Ga

$

$

Currently unavailable

9

Cub Cadet 545-699-R3

Frame Assy, Outer Lift

$

$

Currently unavailable

10

Cub Cadet 549-992-R1

Hanger, Mower Support Frt

$

$

Currently unavailable

Cub Cadet IH-124847

Nut, 5/8-11 Hex Jam
(Superseded to 912-3015)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 20-033-R1

Nut, 5/8-11 Nylon Lock

$

$

Currently unavailable

11

Cub Cadet 544-100-R4

Bracket, Mower Support

$

$

Currently unavailable

12

Cub Cadet 489-387-R2

Pin, Mower Support

$

$

Currently unavailable

Cub Cadet 19-928-R1

Pin, 3/16 X 3/4 Hv Coiled Spring

$

$

Currently unavailable

Cub Cadet HI-120396

Washer, 17/32 X 1-1/16 X .070 C-Z

$

$

Currently unavailable

13

Cub Cadet 489-388-R1

Spring, Mower Support Pin

$

$

Currently unavailable

Cub Cadet IH-180124

Screw, 3/8-16 X 1-1/4 C-Z Hex-Hd Cap
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120394

Washer, 17/32 X 13/16 X .065 C-Z
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120382

Washer, 3/8 C-Z Med Lock
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8-16 C-Z Hex
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 6

0

14

Cub Cadet 490-489-R2

Belt, Mule Drive -38 & 42 In. Blade

$

$

Currently unavailable

Cub Cadet IH-172451

Screw, 5/16 X 5/8 H/Hd Tap
(Superseded to 710-3021)

$

$

Not available

15

Cub Cadet 61-176-C92

Pulley, Drive Belt Idler

$

$

Currently unavailable

16

Pulley, Center -Refer to Main Frame and Knife Units

$

$

Not available

17

Cub Cadet 545-686-R1

Arm, Idler LH

$

$

Currently unavailable

18

Cub Cadet 545-690-R1

Arm Assy, Idler RH

$

$

Currently unavailable

19

Cub Cadet 545-688-R1

Spacer, Spring

$

$

Currently unavailable

Cub Cadet 180-134

Screw, 3/8-16 X 2-1/2 Znd Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet 18-253-R1

Nut, 3/8-16 Nylon Insert Lock

$

$

Currently unavailable

20

Cub Cadet 545-689-R1

Shaft, Frt Hanger

$

$

Currently unavailable

Cub Cadet 18-481-R1

Pin, 3/16 X 1 C-Z Cot

$

$

Currently unavailable

Cub Cadet 178-373-R1

Washer, 17/32 X 1 X 16 Ga C-Z

$

$

Currently unavailable

21

Cub Cadet 58-773-C1

Link, Adjustable

$

$

Currently unavailable

Cub Cadet 23-042-R1

Washer, .531 X 1.000 X .027

$

$

Currently unavailable

Cub Cadet 178-373-R1

Washer, 17/32 X 1 X 16 Ga

$

$

Currently unavailable

22

Cub Cadet 58-774-C1

Block, Adjusting

$

$

Currently unavailable
