AC 23460 AWS (7800544) - Allis-Chalmers 46" Lawn Tractor, 23hp, Canada Fuel Tank Group (7501309) Parts Diagram

46" Lawn Tractor, 23hp, Canada

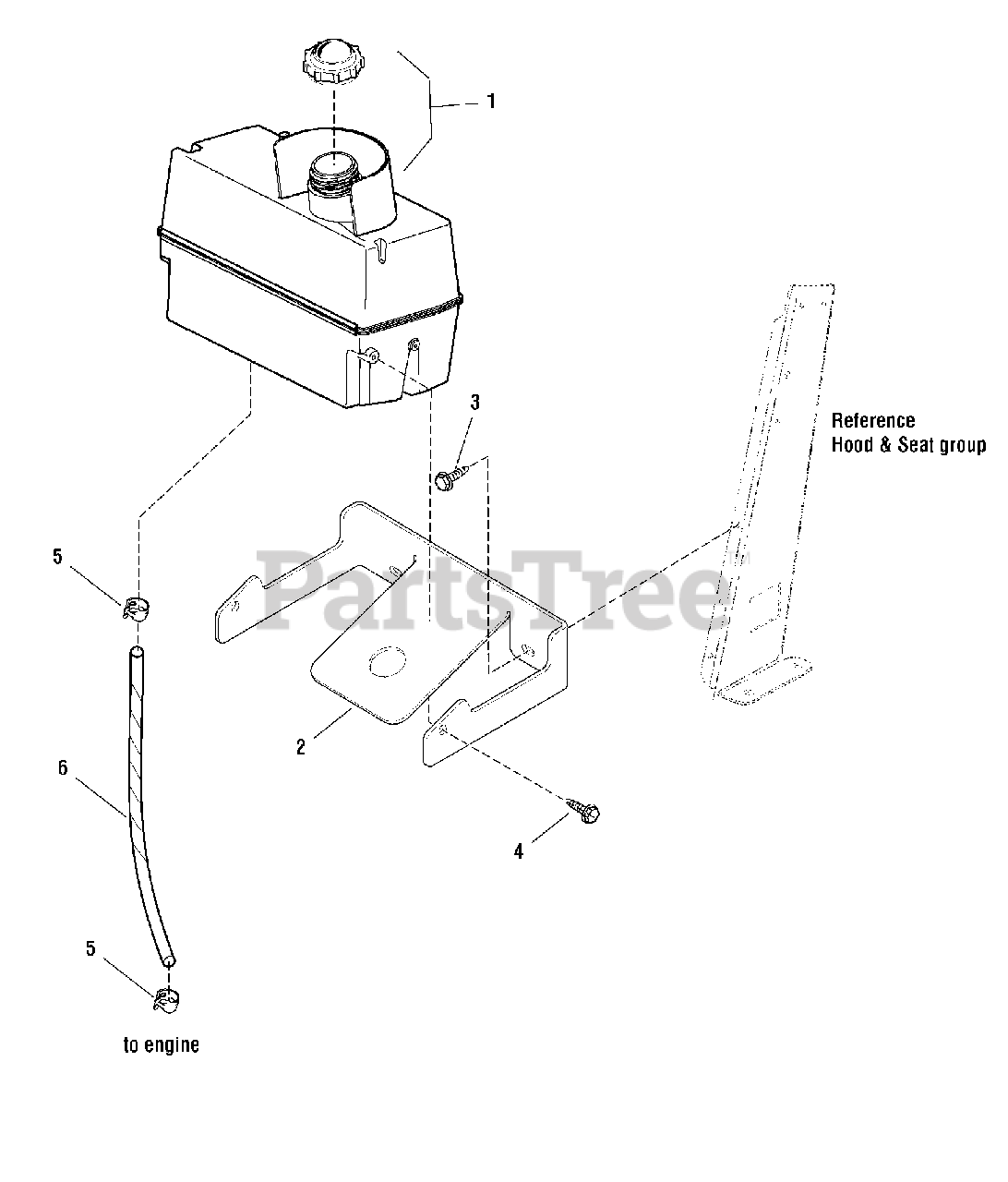

Fuel Tank Group (7501309) Parts Diagram

  • Title
1

Simplicity 7101521YP

FUEL TANK, w/ Cap

$192.99

$

Usually ships in 2-12 days

0

2

Simplicity 7300653BMYP

BRACKET, Tank

$33.99

$

Usually ships in 2-12 days

0

3

Simplicity 7091579SM

SCREW, 1/4-20 x 1/2

$3.99

$

In Stock, only 3 left!

0

4

Simplicity 7091016YP

SCREW, Self Tap, 1/4-20 X 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

5

Simplicity 095197MA

HOSE CLAMP
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1734981SM

HOSE, Fuel, Low Perm 17 in
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0
