AC 23460 AWS (7800511) - Allis-Chalmers 46" Lawn Tractor, 23hp Steering Group (7501308) Parts Diagram

46" Lawn Tractor, 23hp

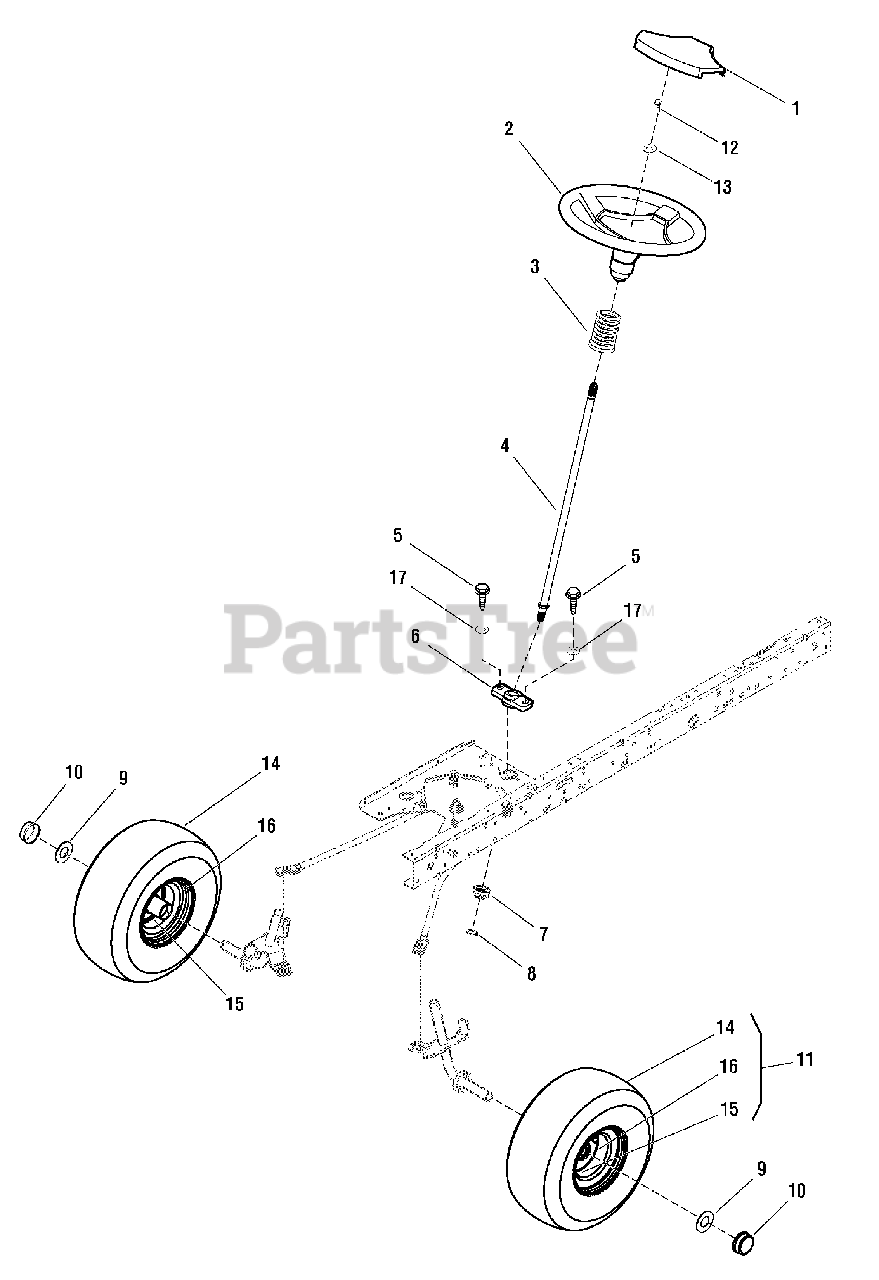

Steering Group (7501308) Parts Diagram

  • Title

1

Simplicity 1001982MA

COVER, Integra

$24.99

$

In Stock, only 1 left!

0

2

Simplicity 1001981MA

STEERING WHEEL

$146.99

$

Usually ships in 2-12 days

0

3

Simplicity 092059MA

BELLOWS

$9.49

$

Usually ships in 2-12 days

0

4

Simplicity 7101525YP

POST, Steering

$97.99

$

Usually ships in 2-12 days

0

5

Simplicity 26X267MA

SCREW, 5/16-18 x 7/8

$4.99

$

In Stock, Qty 20+

0

6

Simplicity 094124MA

BEARING, Lower

$14.99

$

In Stock, only 1 left!

0

7

Simplicity 1001893MA

GEAR, Pinion
(Superseded to 690183MA)

$

$

Not available

8

Simplicity 011X25MA

SNAP RING

$4.49

$

In Stock, Qty 5

0

9

Simplicity 17X195MA

WASHER, Flat

$4.99

$

In Stock, only 4 left!

0

10

Simplicity 094618MA

HUB CAP

$5.99

$

In Stock, only 4 left!

0

11

Simplicity 7101557YP

WHEEL & TIRE ASSY, 15X6.0-6

Note: (Includes Ref Nos 14, 15 & 16)

$182.99

$

Usually ships in 2-12 days

0

12

Simplicity 0025X3MA

SCREW, Thread Forming, 1/4-20 x 1

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 17X146MA

WASHER, FLAT, .344-1.20-.12

$5.49

$

Usually ships in 2-12 days

0

14

Simplicity 7101556YP

TIRE, 15 x 6 2 Ply K358
(Superseded to 1731951SM)

$131.99

$

In Stock, Qty 8

0

15

Simplicity 7012234SM

VALVE STEM, TR412

$6.49

$

Usually ships in 2-12 days

0

16

Simplicity 7046430YP

FITTING, Grease

$9.99

$

Usually ships in 2-12 days

0

17

Simplicity 17X160MA

WASHER, Flat, 1-1/4

$4.99

$

In Stock, Qty 20+

0
