AC 23460 AWS (7800511) - Allis-Chalmers 46" Lawn Tractor, 23hp Hood, Grille & Dash Group (7501425) Parts Diagram

46" Lawn Tractor, 23hp

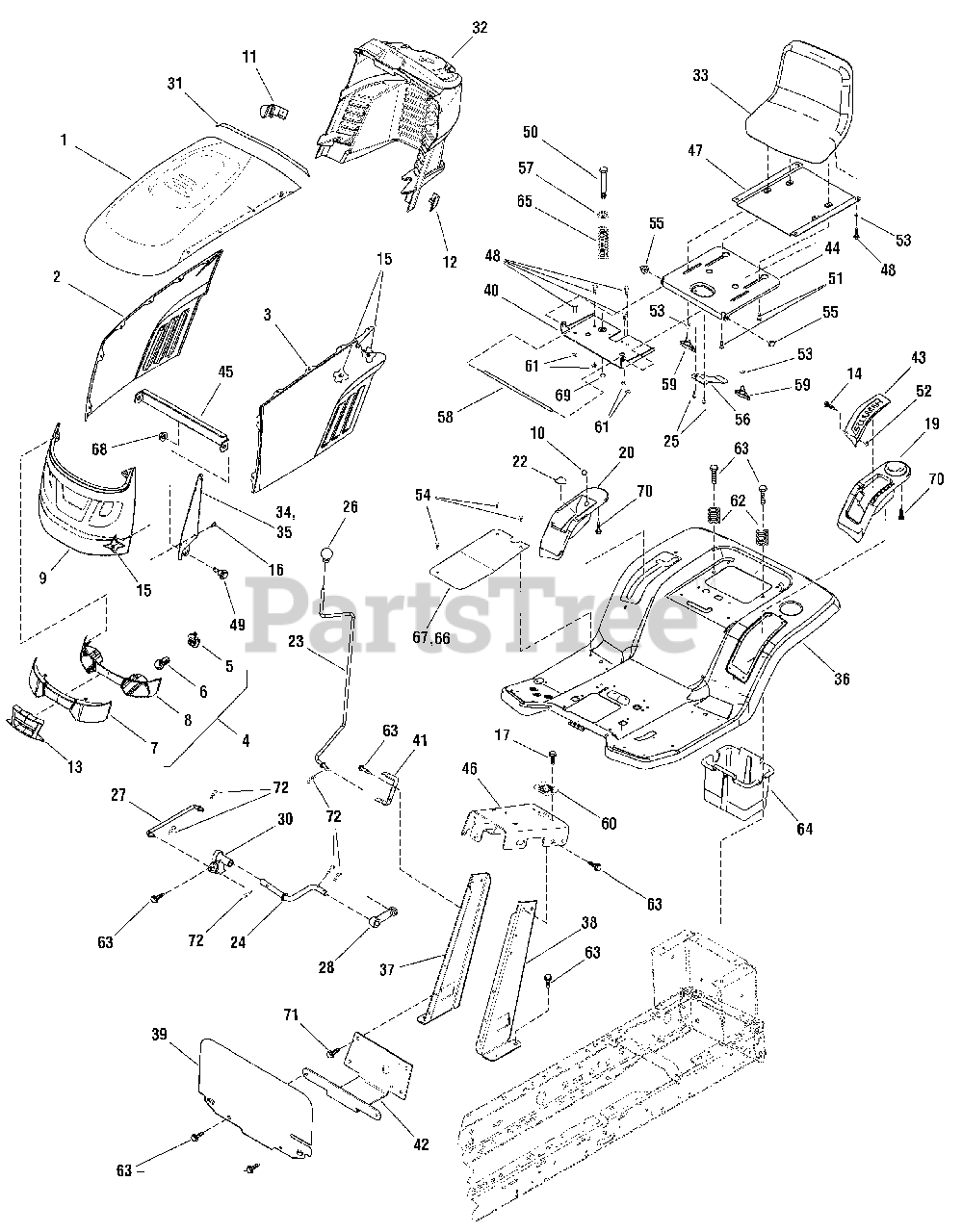

Hood, Grille & Dash Group (7501425) Parts Diagram

  • Title

1

Simplicity 1722110BFYP

HOOD, 3 Louvers
(Superseded to 1722110ZYP)

$141.99

$

Usually ships in 2-12 days

0

2

Simplicity 1727294BFYP

PANEL, Side, Right

$148.99

$

Usually ships in 2-12 days

0

3

Simplicity 1727295BFYP

PANEL, Side, Left

$137.99

$

Usually ships in 2-12 days

0

4

Simplicity 1727296SM

HEADLIGHT ASSEMBLY

$237.99

$

In Stock, Qty 7

0

5

Simplicity 1723451SM

SOCKET

$28.99

$

In Stock, only 1 left!

0

6

Simplicity 1677371SM

BULB

$30.99

$

In Stock, only 1 left!

0

7

Simplicity 1728974SM

LENS
(Superseded to 1727296SM)

$237.99

$

In Stock, Qty 7

0

8

Simplicity 1728973SM

REFLECTOR
(Superseded to 1727296SM)

$237.99

$

In Stock, Qty 7

0

9

Simplicity 1728059BFYP

GRILLE

$148.99

$

Usually ships in 2-12 days

0

10

Simplicity 1732007SM

PLUG, Hole

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 1732030SM

GUIDE, Hood, Left

$7.49

$

In Stock, only 2 left!

0

12

Simplicity 1732031SM

GUIDE, Hood, Right

$7.49

$

In Stock, Qty 5

0

13

Simplicity 1737032YP

INSERT, Lightbar

$4.99

$

In Stock, only 2 left!

0

14

Simplicity 1929477SM

SCREW, Hex, Taptit #10C x 1/2

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 1930641SM

NUT-Hex Flange 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1960295SM

SCREW, Hex Flange Lock 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

17

Simplicity 7091246YP

SCREW, Self Tap, 1/4-20 x 3/4
(Superseded to 770003)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 7101406YP

POD, With Cup Holder

$51.99

$

Usually ships in 2-12 days

0

20

Simplicity 7101407YP

POD, With Compartment

$45.99

$

Usually ships in 2-12 days

0

22

Simplicity 7101493YP

INDICATOR, Cutting Height

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 7101891YP

ACTUATOR, Cruise

$35.99

$

Usually ships in 2-12 days

0

24

Simplicity 7101894YP

ROD, Pivot Cruise

$21.99

$

Usually ships in 2-12 days

0

25

Simplicity 7102073YP

SCREW, 1/4-16

$3.99

$

Usually ships in 2-12 days

0

26

Simplicity 7102074YP

KNOB, Pull, 1/4-20

$5.99

$

Usually ships in 2-12 days

0

27

Simplicity 7102076YP

LINK, Cruise Rod

$14.99

$

Usually ships in 2-12 days

0

28

Simplicity 7102156YP

LINK, Cruise

$6.99

$

Usually ships in 2-12 days

0

30

Simplicity 7102350YP

LATCH, Cruise

$11.99

$

Usually ships in 2-12 days

0

31

Simplicity 7102404YP

STRIP, Trim

$6.99

$

Usually ships in 2-12 days

0

32

Simplicity 7102976YP

CONSOLE

$104.99

$

Usually ships in 2-12 days

0

33

Simplicity 7103142YP

SEAT, Low Back

$307.99

$

Usually ships in 2-12 days

0

34

Simplicity 7300657BMYP

BRACKET, Pivot Hood, Right

$49.99

$

Usually ships in 2-12 days

0

35

Simplicity 7300658BMYP

BRACKET, Pivot Hood, Left

$80.99

$

Usually ships in 2-12 days

0

36

Simplicity 7300677CYP

DECK, Seat
(Superseded to 7300677ZYP)

$444.99

$

Usually ships in 2-12 days

0

37

Simplicity 7300696BMYP

BRACKET, Dash Support, Right

$59.99

$

Usually ships in 2-12 days

0

38

Simplicity 7300697BMYP

BRACKET, Dash Support, Left

$59.99

$

Usually ships in 2-12 days

0

39

Simplicity 7300772BMYP

BULKHEAD

$53.99

$

Usually ships in 2-12 days

0

40

Simplicity 7300794CYP

BRACKET, Seat Pivot
(Superseded to 7300794BMYP)

$33.99

$

Usually ships in 2-12 days

0

41

Simplicity 7300810BMYP

BRACKET, Support, Cruise

$7.49

$

Usually ships in 2-12 days

0

42

Simplicity 7300818BMYP

STIFFENER, Steering

$35.99

$

Usually ships in 2-12 days

0

43

Simplicity 7300865BMYP

INDEX PLATE

$22.99

$

Usually ships in 2-12 days

0

44

Simplicity 7300875CYP

SUPPORT, Seat

$34.99

$

Usually ships in 2-12 days

0

45

Simplicity 7300998BMYP

BRACKET, Hood Stiffener

$15.99

$

Usually ships in 2-12 days

0

46

Simplicity 7400252BMYP

CLUTCH ROD SUPPORT

$60.99

$

Usually ships in 2-12 days

0

47

Simplicity 7400302BMYP

ADAPTOR PLATE, Seat

$61.99

$

Usually ships in 2-12 days

0

48

Simplicity 001X45MA

BOLT, HEX, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

49

Simplicity 009X51MA

BOLT, Shoulder, 3/8-16

$4.99

$

In Stock, only 2 left!

0

50

Simplicity 009X55MA

BOLT, Shoulder, 1/4-20 x 5/16

$3.49

$

Usually ships in 2-12 days

0

51

Simplicity 009X56MA

BOLT, Shoulder, 5/16-18

$3.49

$

Usually ships in 2-12 days

0

52

Simplicity 015X81MA

NUT, Mclean #10-24

$4.99

$

Usually ships in 2-12 days

0

53

Simplicity 017X47MA

WASHER, Flat, 5/8
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

54

Simplicity 0193X1MA

FASTENER, Panel

$3.99

$

In Stock, only 1 left!

0

55

Simplicity 028X23MA

CAP, Push-on
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

56

Simplicity 094057MA

SPRING, Leaf

$5.99

$

Usually ships in 2-12 days

0

57

Simplicity 094155MA

WASHER, Cup
(Superseded to 094155ZMA)

$3.99

$

Usually ships in 2-12 days

0

58

Simplicity 094156ZMA

ROD, Pivot

$7.99

$

Usually ships in 2-12 days

0

59

Simplicity 1001054MA

BOLT, Wing

$6.99

$

Usually ships in 2-12 days

0

60

Simplicity 1001491MA

BEARING, Steering

$5.49

$

Usually ships in 2-12 days

0

61

Simplicity 15X123MA

NUT, Nylock, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

62

Simplicity 164X30MA

SPRING, Compression

$15.99

$

Usually ships in 2-12 days

0

63

Simplicity 26X249MA

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

64

Simplicity 690424MA

CONTAINER, Battery

$45.99

$

In Stock, only 1 left!

0

65

Simplicity 164X31MA

SPRING, Compression

$7.99

$

In Stock, only 2 left!

0

66

Simplicity 095408MA

MAT, Molded, Left

$30.99

$

Usually ships in 2-12 days

0

67

Simplicity 095409MA

MAT, Molded, Right

$32.99

$

Usually ships in 2-12 days

0

68

Simplicity 015X84MA

NUT, Hex Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

69

Simplicity 015X89MA

NUT, Hex Flange, 1/4-20

$4.49

$

Usually ships in 2-12 days

0

70

Simplicity 7090952YP

SCREW, 1/4-20 x 1/2

$4.99

$

Usually ships in 2-12 days

0

71

Simplicity 7091084YP

SCREW, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

72

Simplicity 1722460SM

HAIRPIN
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!
