AC 23460 AWS (7800511) - Allis-Chalmers 46" Lawn Tractor, 23hp Frame Group (7400296BM) Parts Diagram

46" Lawn Tractor, 23hp

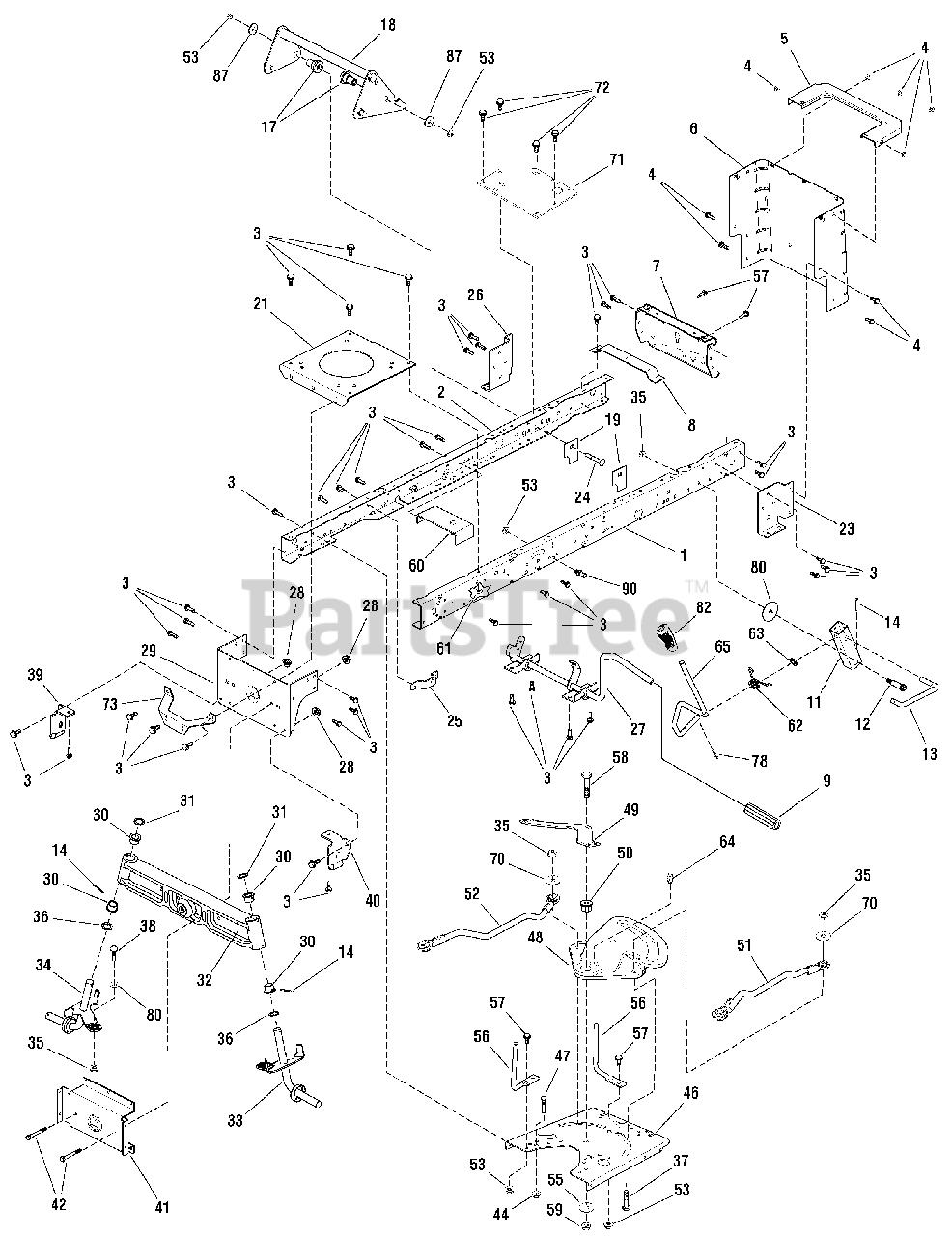

Frame Group (7400296BM) Parts Diagram

  • Title

1

Simplicity 7300870ZMA

RAIL, Frame, Right

$43.99

$

In Stock, only 2 left!

0

2

Simplicity 7301062BMYP

RAIL, Frame, Left

$83.99

$

Usually ships in 2-12 days

0

3

Simplicity 26X249MA

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

4

Simplicity 7091286YP

SCREW, Self tap, SEMS, #10C x 1/2

$4.99

$

In Stock, Qty 14

0

5

Simplicity 7300876ZMA

TOP, Rear Plate
(Superseded to 7300876ZYP)

$25.99

$

Usually ships in 2-12 days

0

6

Simplicity 7300866ZMA

PLATE, Rear
(Superseded to 7300866ZYP)

$74.99

$

Usually ships in 2-12 days

0

7

Simplicity 7300864BMYP

PLATE, Hitch
(Superseded to 7300864ZMA)

$41.99

$

Usually ships in 2-12 days

0

8

Simplicity 7300741ZMA

BRACKET, Battery Support

$10.99

$

Usually ships in 2-12 days

0

9

Simplicity 021544MA

PEDAL, Clutch and Brake
(Superseded to 1727261SM)

$9.99

$

In Stock, Qty 5

0

11

Simplicity 7300819ZMA

BRACKET, Pivot

$12.99

$

Usually ships in 2-12 days

0

12

Simplicity 009X53MA

BOLT, Shoulder, 3/8-16 x 1/2

$6.99

$

Usually ships in 2-12 days

0

13

Simplicity 7300877BMYP

LINK, Lift Handle
(Superseded to 7300877ZMA)

$19.99

$

Usually ships in 2-12 days

0

14

Simplicity 7091809YP

COTTER PIN, 1/8 x 1-1/4

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 690151MA

SPACER, Lifter

$6.99

$

Usually ships in 2-12 days

0

18

Simplicity 7500525BMYP

LIFTER ASSEMBLY
(Superseded to 7500525ZMA)

$102.99

$

Usually ships in 2-12 days

0

19

Simplicity 7300868ZMA

PLATE, Stiffening

$12.99

$

Usually ships in 2-12 days

0

21

Simplicity 7300863ZMA

PLATE, Engine

$34.99

$

Usually ships in 2-12 days

0

23

Simplicity 1001890E701MA

BRACKET, Transaxle Mount, Left

$40.99

$

Usually ships in 2-12 days

0

24

Simplicity 7091008YP

BOLT, Carriage, 3/8-16 x 2 1/2

$4.99

$

In Stock, only 1 left!

0

25

Simplicity 7300796BMYP

BRACKET, Bellcrank

$

$

Not available

26

Simplicity 1001891E701MA

BRACKET, Transaxle Mount, Right

$40.99

$

Usually ships in 2-12 days

0

27

Simplicity 7400287BMYP

BRAKE LEVER

$

$

Not available

28

Simplicity 7092081YP

NUT, Hex Flange, 5/16F
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 7300751ZMA

BRACKET, Rear Hanger

$54.99

$

Usually ships in 2-12 days

0

30

Simplicity 690150MA

BEARING, Spindle, LT

$8.99

$

In Stock, only 2 left!

0

31

Simplicity 7010935SM

WASHER, Flat, 1

$3.99

$

In Stock, Qty 20+

0

32

Simplicity 690232E701MA

AXLE, Cast Iron

$161.99

$

In Stock, only 1 left!

0

33

Simplicity 1001173E701MA

SPINDLE ASSEMBLY, Left

$271.99

$

In Stock, only 1 left!

0

34

Simplicity 1001175E701MA

SPINDLE ASSEMBLY, Right
(Superseded to 721440BMYP)

$228.99

$

In Stock, only 1 left!

0

35

Simplicity 015X84MA

NUT, Hex Flange, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

36

Simplicity 017X53MA

WASHER, Flat, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0

37

Simplicity 009X62MA

BOLT, Shoulder, 3/8-16 X 1

$4.49

$

Usually ships in 2-12 days

0

39

Simplicity 7300861ZMA

HANGER, Deck, Right

$10.99

$

Usually ships in 2-12 days

0

40

Simplicity 7300860ZMA

HANGER, Deck, Left

$

$

Not available

41

Simplicity 7300742ZMA

AXLE, Hanger

$37.99

$

Usually ships in 2-12 days

0

42

Simplicity 01X146MA

BOLT, Hex, 5/16-24 x 2-3/4

$3.99

$

Usually ships in 2-12 days

0

44

Simplicity 7090585MA

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 7

0

46

Simplicity 7300867BMYP

PLATE, Steering Mount
(Superseded to 7300867ZMA)

$

$

Not available

47

Simplicity 094384MA

SCREW, Guide

$4.49

$

Usually ships in 2-12 days

0

48

Simplicity 1001889E701MA

STEERING CAM

$109.99

$

Usually ships in 2-12 days

0

49

Simplicity 1001939E701MA

SECTOR, Gear Support

$67.99

$

Usually ships in 2-12 days

0

50

Simplicity 1001888MA

BEARING, Sector Gear

$9.49

$

Usually ships in 2-12 days

0

51

Simplicity 1001177E701MA

LINK, Drag, Left

$91.99

$

Usually ships in 2-12 days

0

52

Simplicity 1001178E701MA

LINK, Drag, Right

$85.99

$

Usually ships in 2-12 days

0

53

Simplicity 7091619SM

NUT, Hex Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

55

Simplicity 17X146MA

WASHER, FLAT, 1-1/4

$5.49

$

Usually ships in 2-12 days

0

56

Simplicity 091797ZMA

ROD, Belt Guide

$20.99

$

Usually ships in 2-12 days

0

57

Simplicity 025X15MA

SCREW, 3/8-16
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

58

Simplicity 7091908YP

CAPSCREW, Hex Head, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

59

Simplicity 7090951SM

NUT, Flange Lock, 5/16-18
(Superseded to 704001)

$4.49

$

In Stock, Qty 17

0

60

Simplicity 7500601BMYP

IDLER BRACKET ASSEMBLY, Secondary
(Superseded to 7500601ZYP)

$40.99

$

Usually ships in 2-12 days

0

61

Simplicity 7091601SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

62

Simplicity 166X40MA

SPRING, Torsion

$6.49

$

Usually ships in 2-12 days

0

63

Simplicity 17X103MA

WASHER, FLAT, 1

$4.99

$

In Stock, only 2 left!

0

64

Simplicity 092530MA

FITTING, Lube 1/4-28 Taper, Thread Forming

$5.49

$

Usually ships in 2-12 days

0

65

Simplicity 690533MA

HANDLE, Lift

$40.99

$

In Stock, only 1 left!

0

70

Simplicity 17X168ZMA

WASHER, Flat 1-1/4

$6.49

$

Usually ships in 2-12 days

0

71

Simplicity 1001108E701MA

BRACKET, Idler Pivot

$24.99

$

Usually ships in 2-12 days

0

72

Simplicity 26X277MA

SCREW, 5/16-18 X .50

$4.99

$

Usually ships in 2-12 days

0

73

Simplicity 7300817BMYP

BRACKET, Muffler Mounting

$18.99

$

Usually ships in 2-12 days

0

78

Simplicity 0031X4MA

HAIR PIN
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

80

Simplicity 17X191MA

WASHER, Flat, 2-1/4

$3.99

$

Usually ships in 2-12 days

0

82

Simplicity 094497MA

GRIP

$6.49

$

Usually ships in 2-12 days

0

87

Simplicity 7013866YP

WASHER, Flat, 3/4

$6.49

$

Usually ships in 2-12 days

0

90

Simplicity 094067MA

PIN,Threaded Shoulder 3/8-16 x 1-1/2
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0
