AC 23460 AWS (7800511) - Allis-Chalmers 46" Lawn Tractor, 23hp Electrical Group (7500507) Parts Diagram

46" Lawn Tractor, 23hp

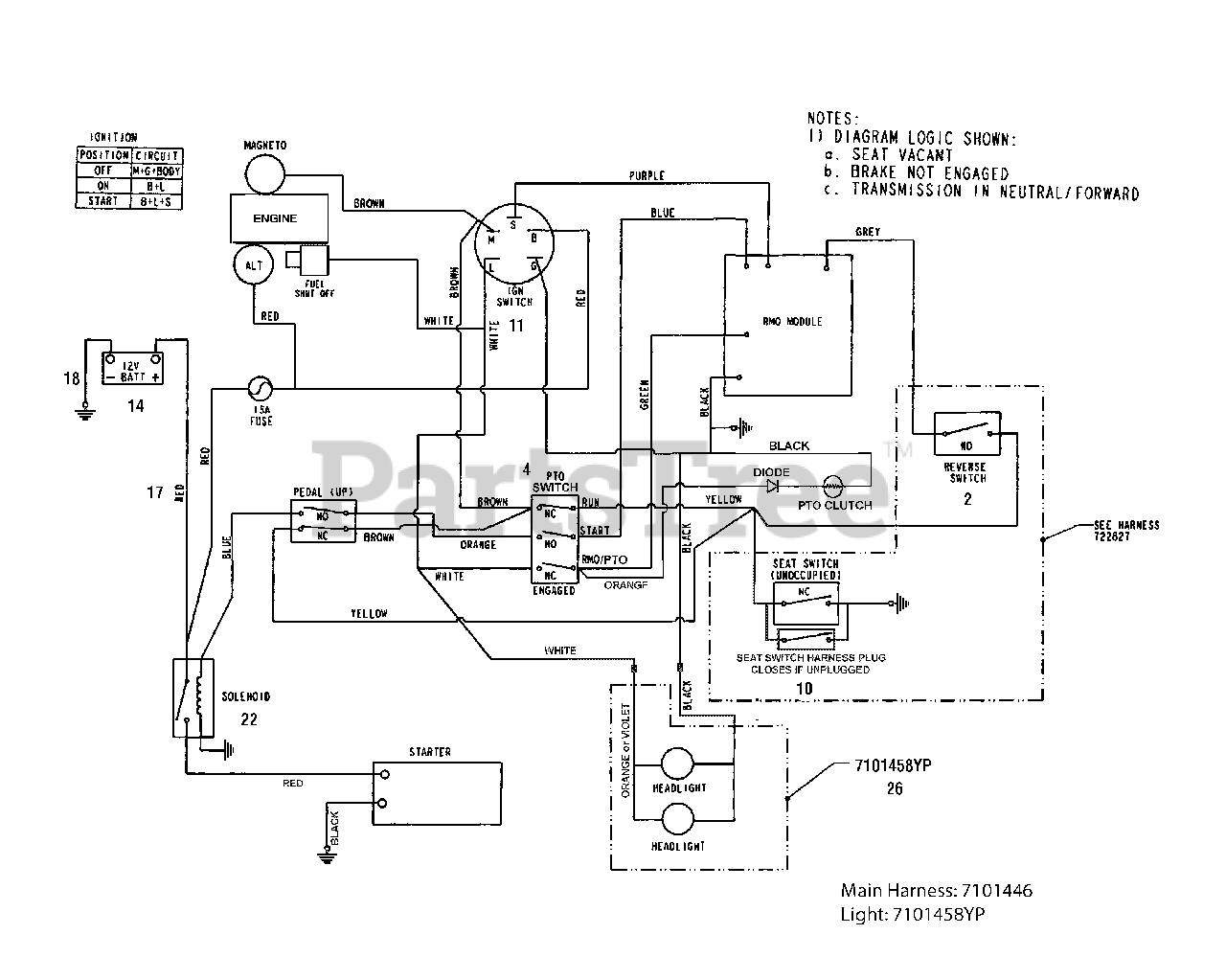

Electrical Group (7500507) Parts Diagram

  • Title
1

Simplicity 1717163SM

KEY, Ignition, Indak, Set of 2

$8.99

$

In Stock, Qty 20+

0

2

Simplicity 1726556SM

SWITCH, RMO Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

3

Simplicity 1726557SM

KEY, RMO Module, Plastic

$5.49

$

In Stock, Qty 20+

0

4

Simplicity 1722887SM

SWITCH, Push Button, Electric PTO

$33.99

$

In Stock, Qty 20+

0

5

Simplicity 1727185SM

KEY, W/Hang Tag, RMO
(Superseded to 1726557SM)

$5.49

$

In Stock, Qty 20+

0

6

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

8

Simplicity 2821319SM

WASHER, 5/8
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 2823341SM

CAPSCREW, Hex 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

10

Simplicity 7023354YP

SWITCH, Seat

$12.99

$

In Stock, Qty 20+

0

11

Simplicity 7026343SM

SWITCH, Ignition

$38.99

$

In Stock, Qty 18

0

12

Simplicity 7100329YP

NUT, 5/8-32, ES
(Superseded to 703995)

$5.99

$

Usually ships in 2-12 days

0

$6.99

$

Usually ships in 2-12 days

0

14

Simplicity 7100449SM

BATTERY, 12 VOLT, 230 CCA
(Superseded to 1685215SM)

$

$

Not available

15

Simplicity 7101446YP

WIRING HARNESS, Hydro Tractor, Electricl PTO

$96.99

$

Usually ships in 2-12 days

0

17

Simplicity 024X31MA

CABLE, Battery, 8 Gauge, Red

$7.49

$

In Stock, only 1 left!

0

18

Simplicity 024X32MA

CABLE, Battery, 8 Gauge, Black

$8.49

$

Usually ships in 2-12 days

0

19

Simplicity 690604MA

BOOT, Battery, Positive

$5.99

$

Usually ships in 2-12 days

0

20

Simplicity 094136MA

SWITCH, LIMIT, NO / NC, Snap-in

$12.99

$

Usually ships in 2-12 days

0

21

Simplicity 1001575MA

SWITCH, LIMIT, NO, Snap-in

$9.99

$

In Stock, only 1 left!

0

22

Simplicity 1002004MA

SOLENOID, 3 Pole
(Superseded to 7701100MA)

$27.99

$

In Stock, only 3 left!

0

23

Simplicity 15X116MA

NUT, Hex Nylock 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 26X229MA

SCREW, 1/4-14 x 3/8

$4.49

$

In Stock, only 1 left!

0

25

Simplicity 250X149MA

WIRING HARNESS, Seat Switch

$23.99

$

Usually ships in 2-12 days

0

26

Simplicity 7101458YP

HARNESS, Headlight

$10.99

$

Usually ships in 2-12 days

0
