AC 23420 (2690995) - Allis-Chalmers 42" Lawn Tractor, 23hp Lift Group - Manual Parts Diagram

42" Lawn Tractor, 23hp

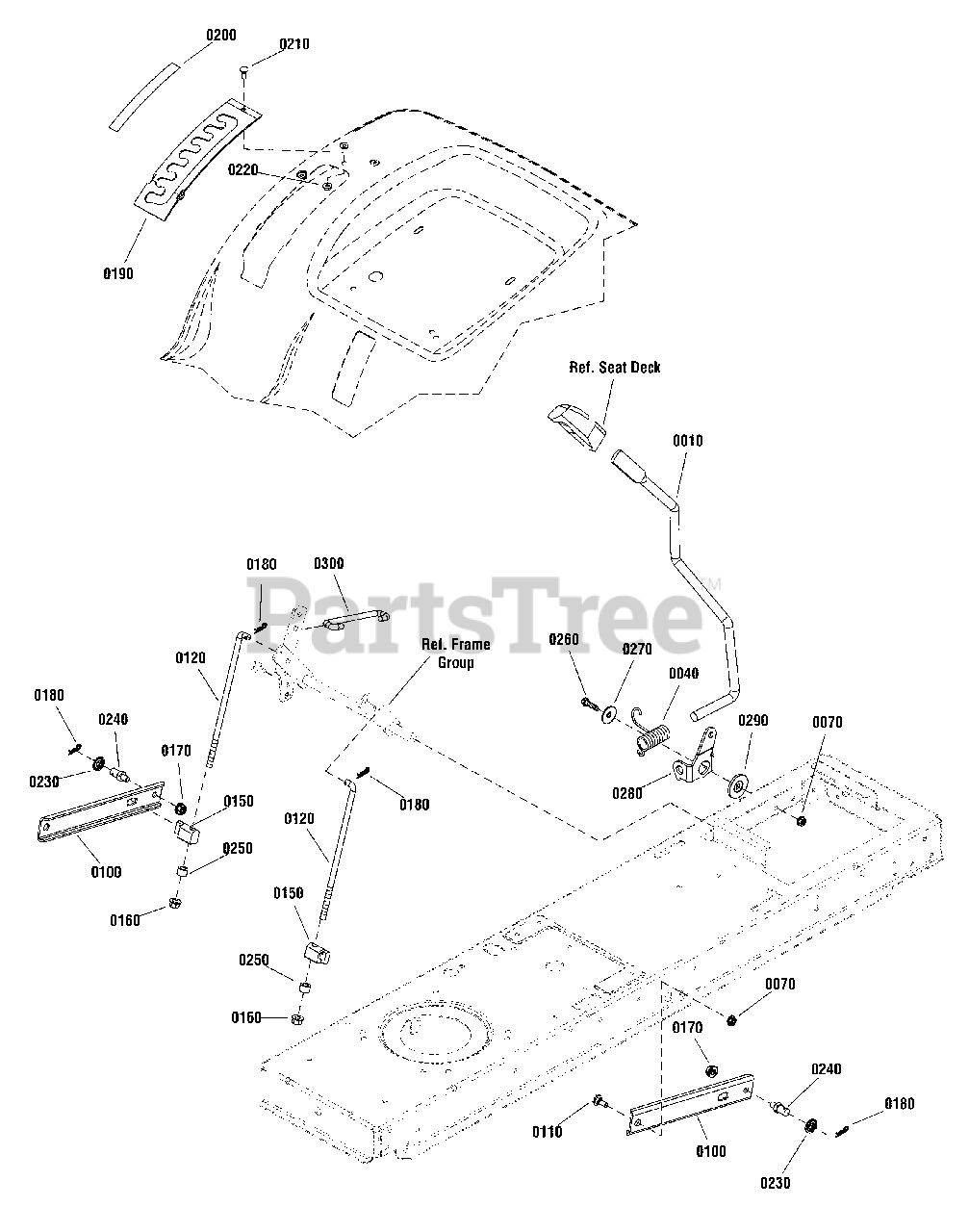

Lift Group - Manual Parts Diagram

  • Title
0010

Simplicity 1728070SM

ROD, Lift Handle, 17.7

$40.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1729652SM

SPRING, Torsion, 2.12 Inch

$6.49

$

In Stock, only 1 left!

0

0070

Simplicity 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0100

Simplicity 1731417SM

ARM, Rear Lift
(Superseded to 1731417BMYP)

$14.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1732426SM

BOLT, Shoulder

$4.49

$

In Stock, only 1 left!

0

0120

Simplicity 1727955SM

ROD, Lower Lift, 10.00 LG

$18.99

$

In Stock, Qty 7

0

0150

$9.99

$

In Stock, only 3 left!

0

0160

Simplicity 1960687SM

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0170

Simplicity 1931211SM

NUT, Hex, Flange Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0180

Simplicity 1960074SM

CLIP, Spring
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0190

Simplicity 1727985SM

QUADRANT, Lift Height
(Superseded to 1727985BMYP)

$12.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1730264SM

DECAL, Height Of Cut

$8.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1960252SM

BOLT, Carriage, 1/4-20 x 5/8, G5

$3.99

$

In Stock, only 1 left!

0

0220

Simplicity 1930641SM

NUT, Hex Flange Whiz, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0230

Simplicity 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0240

Simplicity 094067MA

PIN, Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

0250

$4.99

$

In Stock, Qty 20+

0

0260

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1960044SM

WASHER, Plain, 21/64 x 1-1/4

$4.49

$

In Stock, only 3 left!

0

0280

Simplicity 1728990ASM

CLEVIS, Lift

$11.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1727935SM

SPACER, Pivot, 5/16 ID, 1-3/4 OD

$5.99

$

In Stock, only 1 left!

0

0300

Simplicity 1727954SM

ROD, Lift, 5.43 LG

$6.99

$

Usually ships in 2-12 days

0
