AC 23420 (2690995) - Allis-Chalmers 42" Lawn Tractor, 23hp Engine Group - 19.5HP Single & 23HP Twin Parts Diagram

42" Lawn Tractor, 23hp

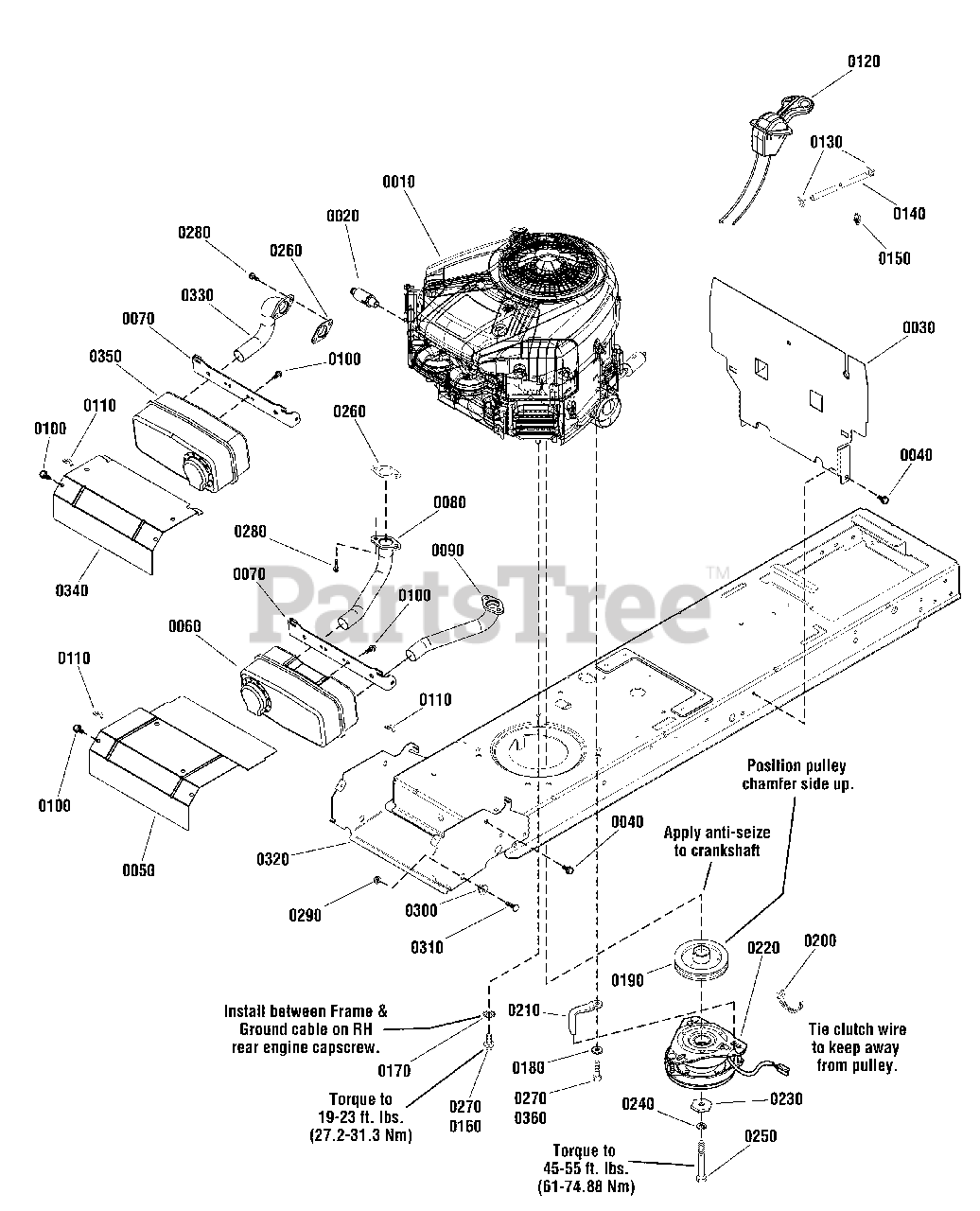

Engine Group - 19.5HP Single & 23HP Twin Parts Diagram

  • Title

0010

Simplicity 44L777-0110-G5

* ENGINE, 23HP Briggs & Stratton V-Twin

Note: (Engine Model: 44L777-0110-G5)

$

$

Not available

0010

Simplicity 44M7772-2166-G5

** ENGINE, 24 HP Kohler Courage Twin Spec #PS-SV720-0031

Note: (Engine Model: 44M7772-2166-G5)

$

$

Not available

0020

Simplicity 1717473

VALVE, Shut Off Oil drain
(Superseded to 1750159YP)

$15.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1728058A

HEAT SHIELD, Engine
(Superseded to 1728058SM)

$42.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1930601

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0050

Simplicity 1737269A

HEAT SHIELD, Twin
(Superseded to 1737269AYP)

Note: 23 HP Model

$173.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1727994

MUFFLER, Twin
(Superseded to 1727994SM)

Note: 23 HP Model

$98.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1727976A

SUPPORT, Heat Shield, Muffler
(Superseded to 1727976BMYP)

Note: 19.5 HP Model

$14.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1737270A

SUPPORT, Heat Shield, Muffler
(Superseded to 1737270AYP)

Note: 23 HP Model

$12.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1736852

EXHAUST PIPE, R.H.
(Superseded to 1736852YP)

Note: 23 HP Model

$33.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1736853

EXHAUST PIPE, L.H.
(Superseded to 1736853YP)

Note: 23 HP Model

$33.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1925003

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

0110

Simplicity 2834683

WIRE CLIP
(Superseded to 703176)

$3.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1734504

THROTTLE CONTROL
(Superseded to 1734504SM)

Note: 19.5 HP Model

$93.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1737766

DUAL CONTROL ASSEMBLY
(Superseded to 1737766YP)

Note: 23 HP Model

$93.99

$

Usually ships in 2-12 days

0

0130

Simplicity 93053

HOSE CLAMP
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

0140

Simplicity 1734993

HOSE, Fuel, 55"
(Superseded to 845503)

$35.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1730268

CLIP, Hose, Plastic
(Superseded to 1730268SM)

$3.99

$

Usually ships in 2-12 days

0

0160

Simplicity 2827187

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1
(Superseded to 1927187SM)

$4.49

$

In Stock, only 4 left!

0

0170

Simplicity 2820427

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

0180

Simplicity 1924940

WASHER, 3/8 x 7/8 OD
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0190

Simplicity 1732576

PULLEY & HUB ASSEMBLY
(Superseded to 1732576SM)

$42.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1701011

TIE, Self Locking, 7.31LG
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0210

Simplicity 1737421A

GUIDE, Belt
(Superseded to 1737421AYP)

$12.99

$

In Stock, Qty 10

0

0220

Simplicity 1736105

CLUTCH, Electric
(Superseded to 1736105SM)

$387.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1708264

WASHER, Hex, 7/16 x 1-1/2 OD
(Superseded to 1708264SM)

$8.99

$

In Stock, Qty 5

0

0240

Simplicity 1918199

LOCKWSHER, Spring, .7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

0250

Simplicity 1960649

CAPSCREW, Hex Head, 7/16-20 x 3-1/2, G5
(Superseded to 1960649SM)

$7.49

$

In Stock, only 1 left!

0

0260

Simplicity 1731214

GASKET, Exhaust
(Superseded to 1731214SM)

Note: 19.5 HP Model

$4.99

$

Usually ships in 2-12 days

0

0270

Simplicity 2828635

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

0280

Simplicity 94480

CAPSCREW, Hex SEMS Lock Washer Head, Taptite, 5/16-18 x 7/8
(Superseded to 690341)

Note: 19.5 HP Model

$5.99

$

In Stock, only 3 left!

0

0290

Simplicity 1931277

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0300

Simplicity 1728086

PIVOT, Hood
(Superseded to 1728086SM)

$5.99

$

In Stock, Qty 7

0

0310

Simplicity 1931335

BOLT, Carriage, 5/16-18 x 1 G5
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0320

Simplicity 1727982A

SUPPORT, Muffler & Hood Pivot
(Superseded to 1727982ASM)

$70.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1728959

EXHAUST PIPE
(Superseded to 1728959SM)

$34.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1727996A

HEAT SHIELD, Single
(Superseded to 7300918ASM)

Note: 19.5 HP Model

$48.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1727993

MUFFLER, Single
(Superseded to 1727993SM)

Note: 19.5 HP Model

$93.99

$

In Stock, only 1 left!

0

0360

Simplicity 704010

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/2

Note: 23 HP Model

$4.99

$

Usually ships in 2-12 days

0
