AC 23420 (2690874) - Allis-Chalmers 42" Lawn Tractor, 23hp Frame & Front Axle Group Parts Diagram

42" Lawn Tractor, 23hp

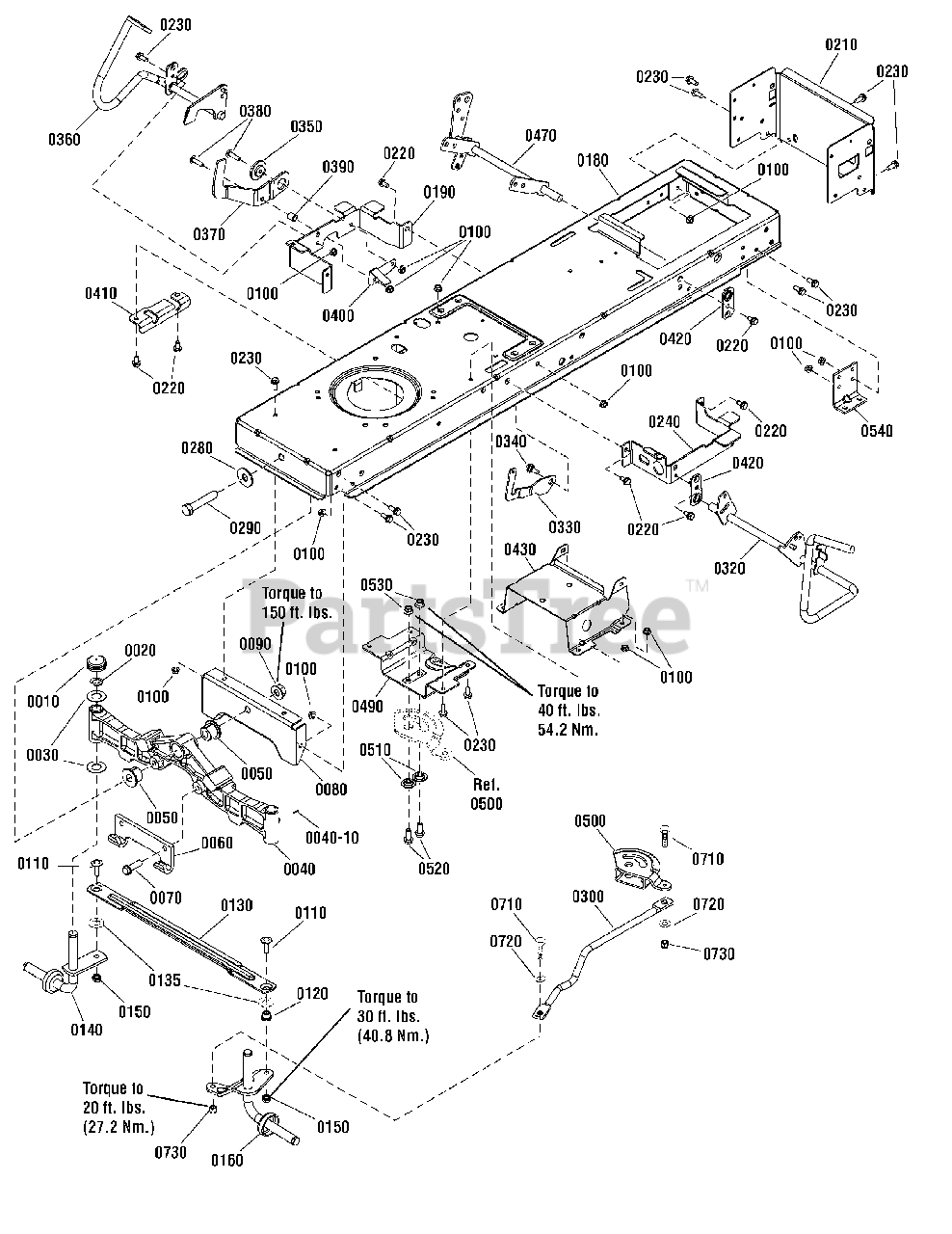

Frame & Front Axle Group Parts Diagram

  • Title

0010

Simplicity 1734135

CAP, Hub
(Superseded to 1734135SM)

$5.99

$

In Stock, Qty 20+

0

0020

Simplicity 1611710

RING, Klipring Extension
(Superseded to 1611710SM)

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 2860183

WASHER, 3/4
(Superseded to 2860183SM)

$4.99

$

In Stock, Qty 20+

0

0040

Simplicity 1728018

AXLE, Front Iron Casting Machined
(Superseded to 1756386YP)

$185.99

$

In Stock, only 1 left!

0

0040-10

Simplicity 1704314

FITTING, Zerk
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

0050

Simplicity 1730186

BUSHING, Axle Pivot
(Superseded to 1730186SM)

$6.99

$

In Stock, Qty 12

0

0060

Simplicity 1721918A

HOOK, "J"
(Superseded to 1721918ASM)

$31.99

$

In Stock, Qty 9

0

0070

Simplicity 1960652

CAPSCREW, 7/16-14 x 1-1/2
(Superseded to 1960652SM)

$5.49

$

In Stock, Qty 8

0

0080

Simplicity 1727902

PLATE, Axle Support
(Superseded to 1727902SM)

$43.99

$

Usually ships in 2-12 days

0

0090

Simplicity 2860646

NUT, Hex Flange Two-Way Lock, 5/8-11
(Superseded to 2860646SM)

$10.99

$

In Stock, Qty 6

0

0100

Simplicity 1931277

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0110

Simplicity 1960032

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, .141 Thread G5
(Superseded to 1960032SM)

$5.49

$

In Stock, only 1 left!

0

0120

Simplicity 1731912

BUSHING, Powdered Metal
(Superseded to 1731912SM)

$4.49

$

In Stock, Qty 20+

0

0130

Simplicity 1751964

ROD, Tie
(Superseded to 1751964BMYP)

$32.99

$

In Stock, Qty 5

0

0135

Simplicity 1960703

WASHER, 5/8, 1 O.D.
(Superseded to 1960703SM)

$4.49

$

In Stock, only 2 left!

0

0140

Simplicity 1727872A

SPINDLE & CUP ASSEMBLY, R.H.
(Superseded to 1727872ASM)

$98.99

$

In Stock, Qty 20+

0

0150

Simplicity 1930645

NUT, Hex, Flange, Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0160

Simplicity 1751922

SPINDLE & STEERING ARM ASSEMBLY, L.H.
(Superseded to 1751922YP)

$109.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1750275

FRAME
(Superseded to 1750275YP)

Note: (Not A Serviceable Part)

$222.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1727904

SUPPORT, Front Footrest R.H.
(Superseded to 1759842BMYP)

$39.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1750989

SUPPORT, Rear Frame
(Superseded to 1750989YP)

$35.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1930601

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0230

Simplicity 1930591

CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 14

0

0240

Simplicity 885536

SUPPORT, Front Footrest L.H.
(Superseded to 885536AYP)

$25.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1960035

WASHER, Flat, 5/8
(Superseded to 1960035SM)

$4.49

$

In Stock, only 2 left!

0

0290

Simplicity 2860744

CAPSCREW, Hex Head, 5/8-11 x 3-1/4 G5
(Superseded to 2860744SM)

$8.49

$

Usually ships in 2-12 days

0

0300

Simplicity 1738051

LINK, Drag
(Superseded to 1738051YP)

$60.99

$

In Stock, Qty 12

0

0320

Simplicity 1736404A

PEDAL ASSEMBLY, Brake
(Superseded to 772383)

$98.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1735595A

LATCH, Brake Lock
(Superseded to 1735595ASM)

$10.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1729576

BOLT, Shoulder, 5/16-18 x 1-1/8
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0350

Simplicity 1727935

SPACER, Pivot
(Superseded to 1727935SM)

$5.99

$

In Stock, only 1 left!

0

0360

Simplicity 1736714A

PEDAL ASSEMBLY, Forward
(Superseded to 1736714AYP)

$89.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1727246

PEDAL, Reverse
(Superseded to 1727246SM)

$20.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1960223

BOLT, Carriage, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

0390

Simplicity 1728024

SPACER, Foot Pedal
(Superseded to 1728024SM)

$4.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1728025

ACTUATOR, RMO Switch
(Superseded to 1728025BMYP)

$6.49

$

Usually ships in 2-12 days

0

0410

Simplicity 1727909

BRACKET, Pedal Pivot
(Superseded to 885591YP)

$22.99

$

Usually ships in 2-12 days

0

0420

Simplicity 1727911A

PLATE, Bearing
(Superseded to 1727911ASM)

$12.99

$

Usually ships in 2-12 days

0

0430

Simplicity 1727282

SUPPORT, Battery
(Superseded to 1727282SM)

$

$

Not available

0470

Simplicity 1737957

LIFT SHAFT ASSEMBLY
(Superseded to 1737957YP)

$59.99

$

Usually ships in 2-12 days

0

0490

Simplicity 1727940

BRACKET, Sector Support
(Superseded to 1727940SM)

$

$

Not available

0500

Simplicity 1751110

GEAR, Steering
(Superseded to 1751110YP)

$34.99

$

In Stock, Qty 20+

0

0510

Simplicity 1728122

SPACER, Sector Gear
(Superseded to 1728122SM)

$5.49

$

In Stock, Qty 10

0

0520

Simplicity 1934654

SCREW, Hex Flange, Whiz Lock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

0530

Simplicity 1930645

NUT, Hex Flange, Two-Way Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0540

Simplicity 1727903

SUPPORT, Transmission
(Superseded to 1727903SM)

$10.99

$

In Stock, Qty 12

0

0710

Simplicity 1921977

CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G5
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

0720

Simplicity 1924874

WASHER, 5/16 x 7/8 O.D.
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

0730

Simplicity 1935048

NUT, Hex Flange, Two Way Locking, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0
