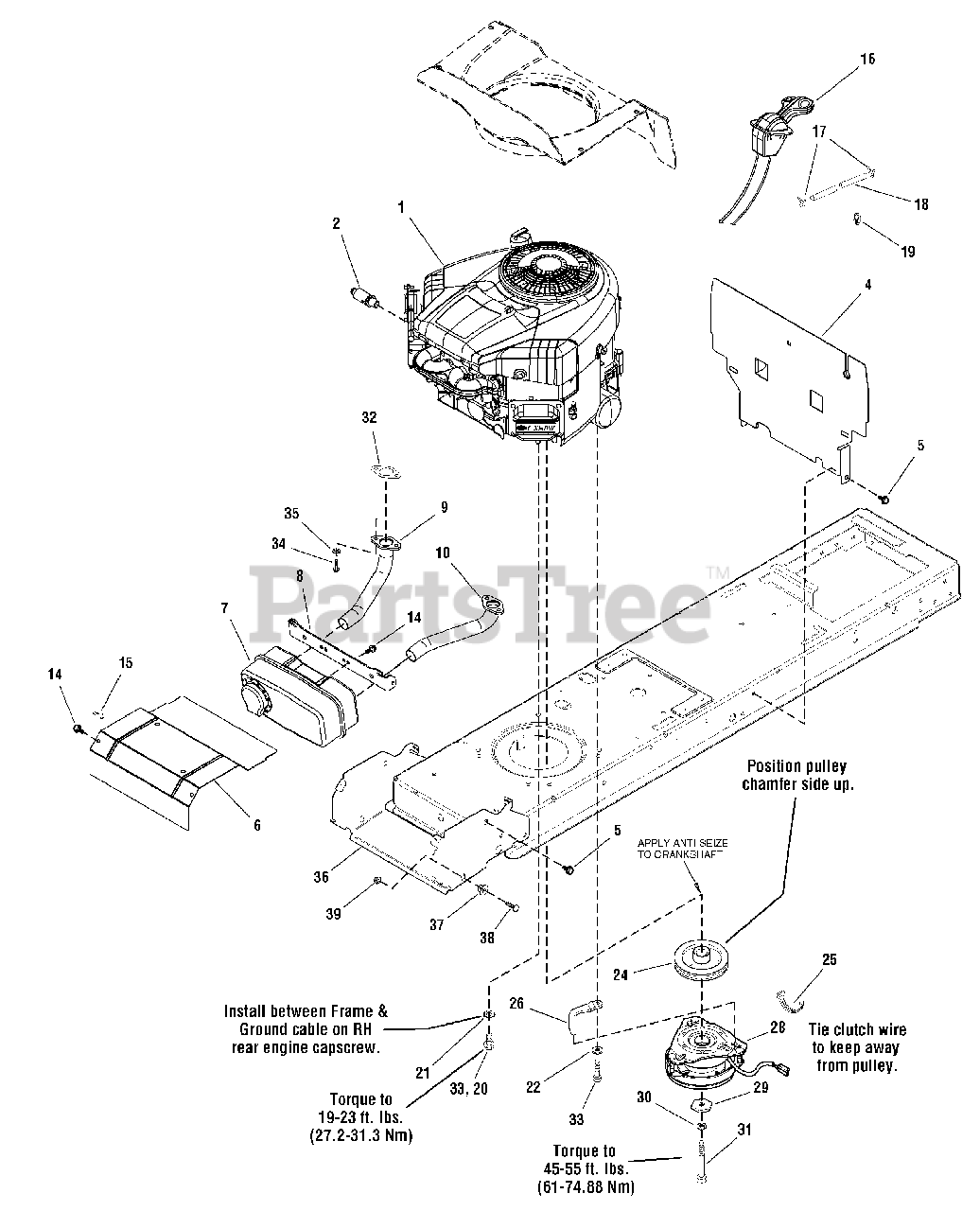

AC 23420 (2690874) - Allis-Chalmers 42" Lawn Tractor, 23hp Engine Group - 23HP & 24HP Pro Series Parts Diagram

42" Lawn Tractor, 23hp

Engine Group - 23HP & 24HP Pro Series Parts Diagram

  • Title

1

Simplicity 44L777-0119-B1

* ENGINE, 23HP Briggs & Stratton Professional Series

Note: (Engine Model: 44L777-0119-B1)

$

$

Not available

1

Simplicity 44M777-0166-B1

* ENGINE, 24HP Briggs & Stratton Professional Series

Note: (Engine Model: 44M777-0166-B1)

$

$

Not available

2

Simplicity 1717473

VALVE, Shut Off Oil Drain
(Superseded to 1750159YP)

$15.99

$

Usually ships in 2-12 days

0

4

Simplicity 1728058A

SHIELD, Heat
(Superseded to 1728058SM)

$42.99

$

Usually ships in 2-12 days

0

5

Simplicity 1930601

CAPSCREW, Hex Washer Head Taptite 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

6

Simplicity 1727997A

SHIELD, Heat
(Superseded to 1727997ASM)

$33.99

$

Usually ships in 2-12 days

0

7

Simplicity 1727994

MUFFLER
(Superseded to 1727994SM)

$98.99

$

Usually ships in 2-12 days

0

8

Simplicity 1727976A

BRACKET, Muffler Mount
(Superseded to 1727976BMYP)

$14.99

$

Usually ships in 2-12 days

0

9

Simplicity 1727979

PIPE, Exhaust R.H.
(Superseded to 1727979SM)

$37.99

$

In Stock, only 1 left!

0

10

Simplicity 1727980

PIPE, Exhaust L.H.
(Superseded to 1727980SM)

$37.99

$

In Stock, only 2 left!

0

14

Simplicity 1925003

CAPSCREW, Hex Washer Head Taptite 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

15

Simplicity 2834683

CLIP, Speed Wire
(Superseded to 703176)

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1736868

CONTROL, Throttle, Choke-A-Matic
(Superseded to 1736868YP)

Note: (ELD & ELS Twin)

$65.99

$

Usually ships in 2-12 days

0

17

Simplicity 2860112

CLAMP, Hose
(Superseded to 2860112SM)

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 1732001

HOSE, Fuel
(Superseded to 845503)

$35.99

$

Usually ships in 2-12 days

0

19

Simplicity 1730268

CLIP, Hose
(Superseded to 1730268SM)

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 2827187

CAPSCREW, Hex Washer Head Taptite 3/8-16 x 1
(Superseded to 1927187SM)

Note: (B&S Single)

$4.49

$

In Stock, only 4 left!

0

21

Simplicity 2820427

LOCKWASHER, External Tooth 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1732576

PULLEY & HUB ASSEMBLY, Engine
(Superseded to 1732576SM)

$42.99

$

Usually ships in 2-12 days

0

25

Simplicity 1701011

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

26

Simplicity 1732875

RETAINER, Clutch
(Superseded to 1737421AYP)

$12.99

$

In Stock, Qty 10

0

28

Simplicity 1731275

CLUTCH, Electric OGURA
(Superseded to 1687296SM)

Note: (Used on Model Year 2008 and Prior)

$402.99

$

In Stock, only 1 left!

0

28

Simplicity 1736105

CLUTCH, Electric OGURA
(Superseded to 1736105SM)

Note: (Used on Model Year 2009 and Later)

$387.99

$

Usually ships in 2-12 days

0

29

Simplicity 1708264

WASHER, Hex
(Superseded to 1708264SM)

$8.99

$

In Stock, Qty 5

0

30

Simplicity 1918199

LOCKWASHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1960649

CAPSCREW, Hex Head 7/16-20 x 3-1/2 G5
(Superseded to 1960649SM)

$7.49

$

In Stock, only 1 left!

0

32

Simplicity 1731214

GASKET, Exhaust
(Superseded to 1731214SM)

Note: (B&S Only)

$4.99

$

Usually ships in 2-12 days

0

33

Simplicity 2828635

CAPSCREW, Hex Washer Head Taptite 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

34

Simplicity 1936228

CAPSCREW, Hex Socket Head 5/16-18 x 3/4 G8
(Superseded to 1936228SM)

Note: (B&S Only)

$4.49

$

In Stock, only 1 left!

0

35

Simplicity 1917356

LOCKWASHER, Spring 5/16
(Superseded to 703116)

Note: (B&S Only)

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 1727982A

SUPPORT, Muffler Hood
(Superseded to 1727982ASM)

$70.99

$

Usually ships in 2-12 days

0

37

Simplicity 1728086

PIVOT, Hood
(Superseded to 1728086SM)

$5.99

$

In Stock, Qty 7

0

38

Simplicity 1931355

BOLT, Carriage, 5/16-18 x 1
(Superseded to 1931355SM)

$5.99

$

In Stock, Qty 11

0

39

Simplicity 1931277

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

--

Simplicity 1687296

SERVICE KIT, Electric Clutch
(Superseded to 1687296SM)

Note: (Includes Ref. Nos. 22, 24, 25, 26, 28, 29, 30, 31 & 33)

$402.99

$

In Stock, only 1 left!
