AC 23420 (2690874) - Allis-Chalmers 42" Lawn Tractor, 23hp Decal Group Parts Diagram

42" Lawn Tractor, 23hp

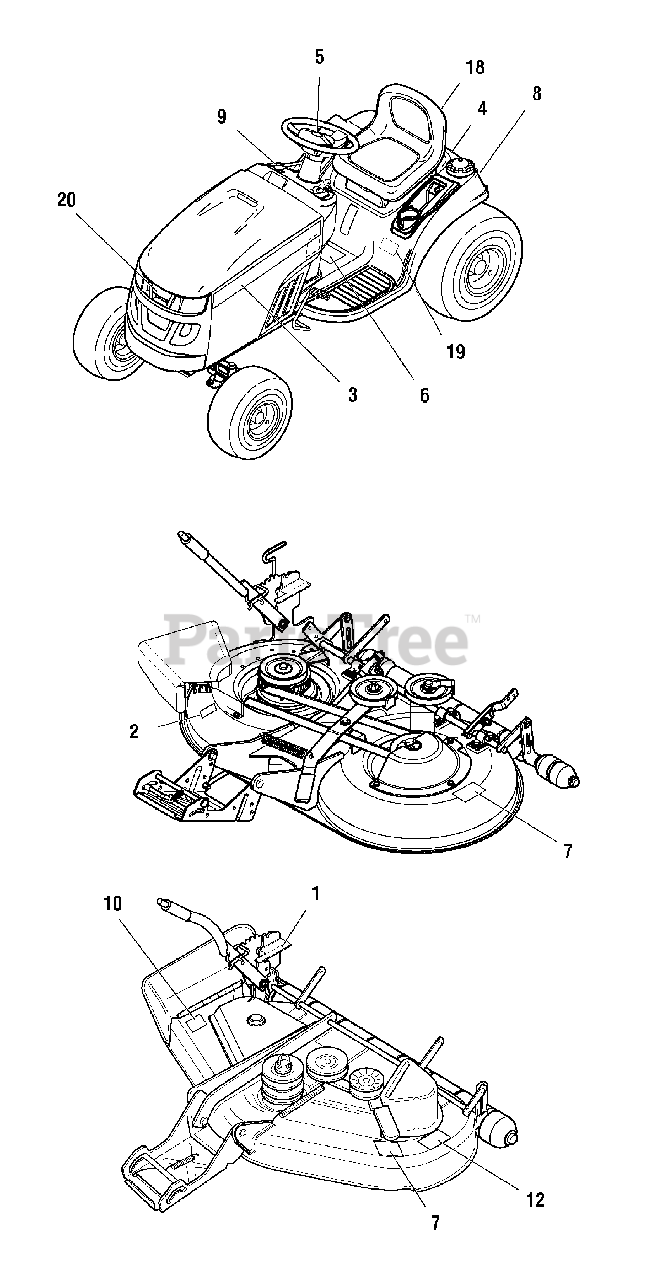

Decal Group Parts Diagram

  • Title

2

Simplicity 1737030

DECAL, Cut, 42
(Superseded to 1737030YP)

$15.99

$

Usually ships in 2-12 days

0

3

Simplicity 1737024

DECAL, Stripe, Allis Chalmers, With Logo
(Superseded to 1737024YP)

$9.49

$

Usually ships in 2-12 days

0

4

Simplicity 1737027

DECAL, Allis Chalmers, Rear
(Superseded to 1737027YP)

$5.49

$

Usually ships in 2-12 days

0

5

Simplicity 1737025

DECAL, Steering Wheel
(Superseded to 1737025YP)

$11.99

$

In Stock, only 1 left!

0

6

Simplicity 1734879

DECAL, Tunnel
(Superseded to 1734879SM)

$22.99

$

Usually ships in 2-12 days

0

7

Simplicity 1704276

DECAL, Danger, Hands / Feet
(Superseded to 1704276SM)

$

$

Not available

8

Simplicity 1730202

DECAL, Transmission Tow, Release Lever
(Superseded to 1730202SM)

$12.99

$

Usually ships in 2-12 days

0

9

Simplicity 1722806

DECAL, Ignition Switch
(Superseded to 1722806SM)

$13.99

$

Usually ships in 2-12 days

0

10

Simplicity 1704277

DECAL, Danger Do Not Operate Without Deflector
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0

12

Simplicity 1737031

DECAL, Cut, 46 Inch
(Superseded to 1737031YP)

$12.99

$

Usually ships in 2-12 days

0

18

Simplicity 1737026

DECAL, Allis Chalmers Logo
(Superseded to 1737026YP)

$20.99

$

Usually ships in 2-12 days

0

19

Simplicity 1737028

DECAL, Model, 23HP
(Superseded to 1737028YP)

$19.99

$

Usually ships in 2-12 days

0

19

Simplicity 1737029

DECAL, Model, 24HP
(Superseded to 1737029YP)

$29.99

$

Usually ships in 2-12 days

0

20

Simplicity 1737040

DECAL, Allis Chalmers, Logo, LT125
(Superseded to 1737040YP)

$38.99

$

Usually ships in 2-12 days

0
