AA0101-0001-01 - Briggs & Stratton Outboard Engine Drive Shaft Housing, Shift Lever, Tilt Brackets Parts Diagram

Outboard Engine

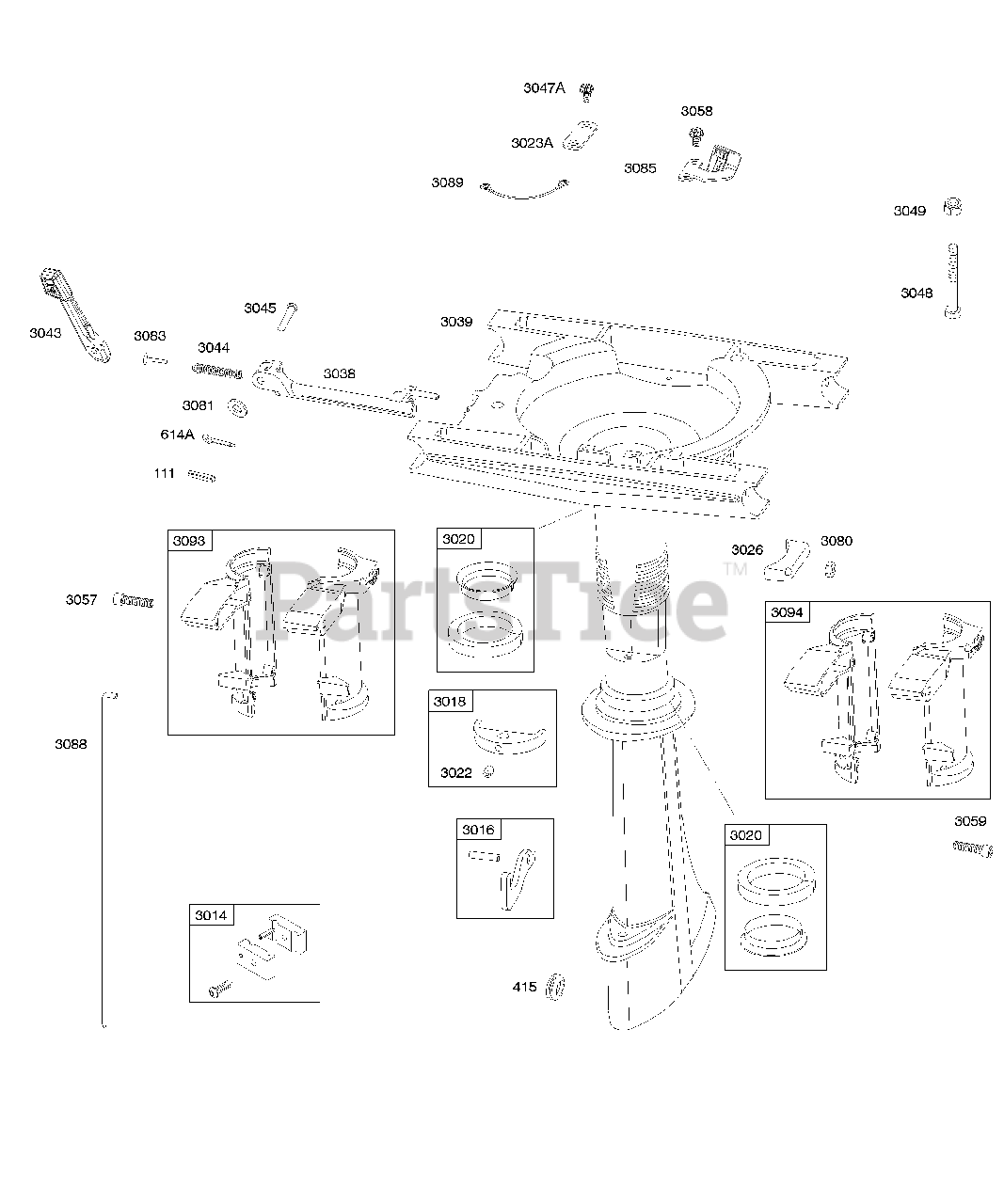

Drive Shaft Housing, Shift Lever, Tilt Brackets Parts Diagram

  • Title

111

Briggs & Stratton 861583

Pin-Retainer

Note: Used After Code Date 03011900

$3.99

$

Usually ships in 2-12 days

0

415

Briggs & Stratton 861217

Plug

Note: (Drive Shaft Housing)

$2.99

$

Usually ships in 2-12 days

0

614A

Briggs & Stratton 861305

Pin-Cotter
(Superseded to 861583)

Note: (Transmission Shift Lever) Used Before Code Date 03012000

$3.99

$

Usually ships in 2-12 days

0

3014

Briggs & Stratton 861451

Clamp-Shift Rod

$104.99

$

Usually ships in 2-12 days

0

3016

Briggs & Stratton 861636

Hook-Reverse

$5.49

$

Usually ships in 2-12 days

0

3018

Briggs & Stratton 861264

Hook-Actuator

$31.99

$

Usually ships in 2-12 days

0

3020

Briggs & Stratton 861249

Ring-Isolator

$10.99

$

Usually ships in 2-12 days

0

3022

Briggs & Stratton 861263

Screw-Set

$4.49

$

Usually ships in 2-12 days

0

3023A

Briggs & Stratton 861252X

Plate-Retainer

Note: (Transmission Shift Lever)

$

$

Not available

3026

Briggs & Stratton 861251

Pad-Friction

$10.99

$

Usually ships in 2-12 days

0

3038

Briggs & Stratton 861269

Lever-Transmission Shift

$167.99

$

Usually ships in 2-12 days

0

3039

Briggs & Stratton 861186

Housing-Drive Shaft

Note: (Black)

$465.99

$

Usually ships in 2-12 days

0

3039

Briggs & Stratton 861570

Housing-Drive Shaft

Note: (Marine Green)

$620.99

$

Usually ships in 2-12 days

0

3043

Briggs & Stratton 861303

Handle-Transmission Shift

Note: (Black)

$58.99

$

Usually ships in 2-12 days

0

3043

Briggs & Stratton 861571

Handle-Transmission Shift

Note: (Marine Green)

$39.99

$

Usually ships in 2-12 days

0

3044

Briggs & Stratton 861304

Spring-Transmission Lever

$4.49

$

Usually ships in 2-12 days

0

3045

Briggs & Stratton 861306

Pin-Clevis

$3.49

$

Usually ships in 2-12 days

0

3047A

Briggs & Stratton 861253X

Screw

Note: (Retainer Plate) (Transmission Shift Lever)

$

$

Not available

3048

Briggs & Stratton 861212

Screw

Note: (Lower Unit to Engine)

$4.49

$

Usually ships in 2-12 days

0

3049

Briggs & Stratton 861213

Nut

Note: (Lower Unit to Engine)

$4.49

$

Usually ships in 2-12 days

0

3057

Briggs & Stratton 861250

Screw

Note: (Tilt Bracket)

$4.99

$

Usually ships in 2-12 days

0

3058

Briggs & Stratton 861253

Screw

Note: (Neutral Switch)

$4.49

$

Usually ships in 2-12 days

0

3059

Briggs & Stratton 861250

Screw

Note: (Friction Pad)

$4.99

$

Usually ships in 2-12 days

0

3080

Briggs & Stratton 861239

Nut

Note: (Friction Pad)

$2.99

$

Usually ships in 2-12 days

0

3081

Briggs & Stratton 861240

Washer

Note: (Transmission Shift Lever)

$3.49

$

Usually ships in 2-12 days

0

3083

Briggs & Stratton 861319

Rivet

Note: (Transmission Lever Spring)

$2.99

$

Usually ships in 2-12 days

0

3085

Briggs & Stratton 861283

Switch-Neutral

$21.99

$

Usually ships in 2-12 days

0

3088

Briggs & Stratton 861323

Rod-Shift

$28.99

$

Usually ships in 2-12 days

0

3089

Briggs & Stratton 861334

Strap-Ground

$3.49

$

Usually ships in 2-12 days

0

3093

Briggs & Stratton 861580

Bracket-Starboard Tilt

Note: (Camouflage)

$341.99

$

Usually ships in 2-12 days

0

3093

Briggs & Stratton 861568

Bracket-Starboard Tilt

Note: (Black)

$301.99

$

Usually ships in 2-12 days

0

3094

Briggs & Stratton 861568

Bracket-Port Tilt

Note: (Black)

$301.99

$

Usually ships in 2-12 days

0

3094

Briggs & Stratton 861580

Bracket-Port Tilt

Note: (Camouflage)

$341.99

$

Usually ships in 2-12 days

0
