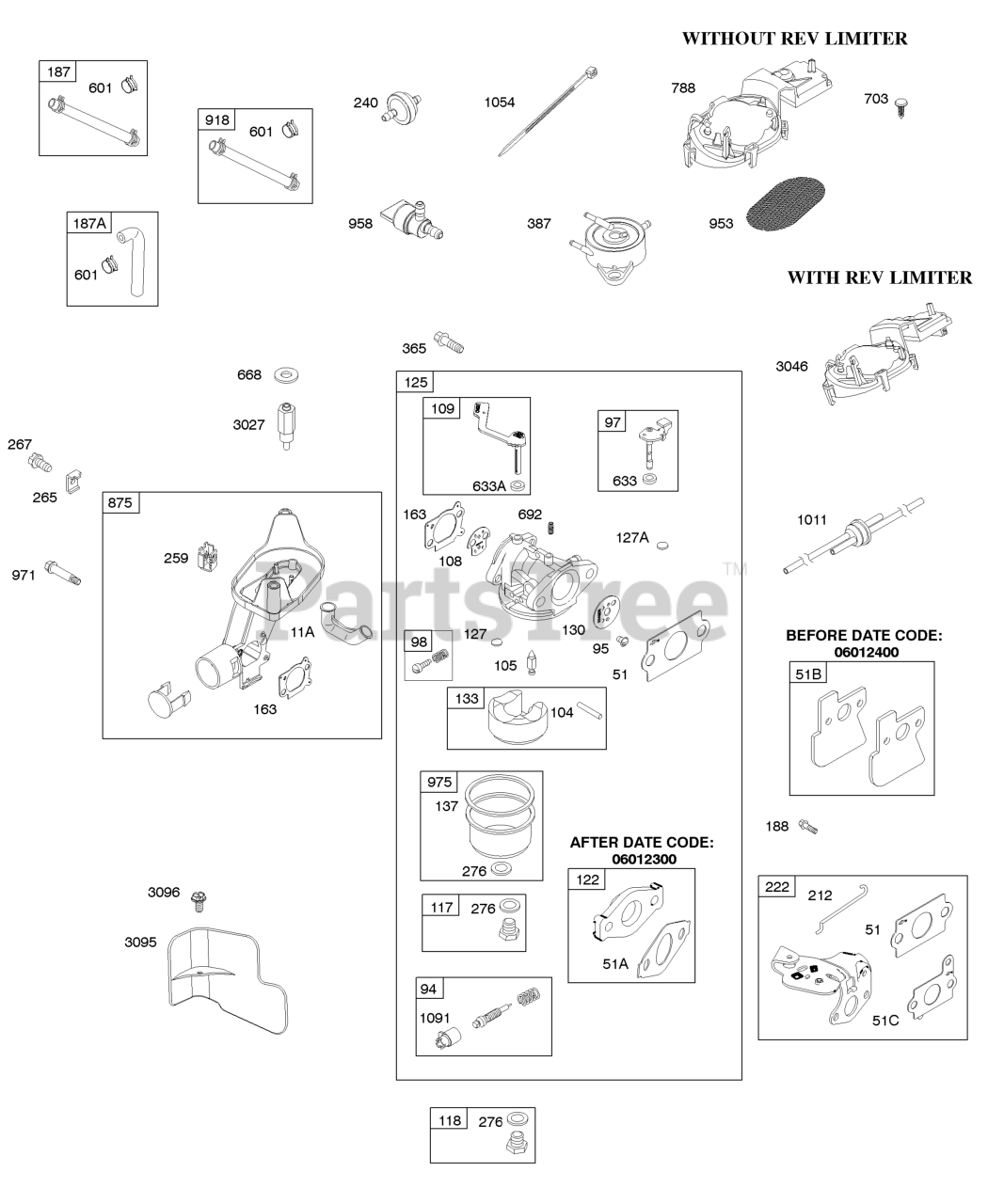

AA0101-0001-01 - Briggs & Stratton Outboard Engine Carbruetor, Fuel Pump, Rev Limeter, Fuel, Controls Parts Diagram

Outboard Engine

Carbruetor, Fuel Pump, Rev Limeter, Fuel, Controls Parts Diagram

  • Title

11A

Briggs & Stratton 692937

Tube-Breather

$9.49

$

In Stock, Qty 14

0

51

Briggs & Stratton 697735

Gasket-Intake

$4.49

$

Usually ships in 2-12 days

0

51A

Briggs & Stratton 692555

Gasket-Intake

Note: Used After Code Date 06012300

$3.99

$

In Stock, Qty 17

0

51C

Briggs & Stratton 692668

Gasket-Intake

$4.49

$

In Stock, only 3 left!

0

51B

Briggs & Stratton 699144

Gasket-Intake
(Superseded to 792382)

Note: (Contains 2) Used Before Code Date 06012400

$9.99

$

In Stock, Qty 5

0

94

Briggs & Stratton 697916

Kit-Idle Mixture

$10.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 499682

Shaft-Throttle

$16.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 398185

Kit-Idle Speed

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Float Hinge
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

105

Briggs & Stratton 691782

Valve-Float Needle

$18.99

$

In Stock, Qty 8

0

108

Briggs & Stratton 691182

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 499681

Shaft-Choke

$30.99

$

In Stock, only 4 left!

0

117

Briggs & Stratton 697355

Jet-Main

Note: (Standard)

$

$

Not available

118

Briggs & Stratton 694250

Jet-Main

Note: (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 792382

Spacer-Carburetor

Note: Used After Code Date 06012300

$9.99

$

In Stock, Qty 5

0

125

Briggs & Stratton 697736

Carburetor
(Superseded to 792997)

Note: Used Before Code Date 06012400

$

$

Not available

125

Briggs & Stratton 792997

Carburetor

Note: Used After Code Date 06012300

$

$

Not available

127

Briggs & Stratton 691739

Plug-Welch

$4.49

$

Usually ships in 2-12 days

0

127A

Briggs & Stratton 694468

Plug-Welch

Note: Used Before Code Date 02082600

$4.49

$

In Stock, only 3 left!

0

130

Briggs & Stratton 691181

Valve-Throttle

$7.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 691894

Gasket-Air Cleaner

$4.99

$

In Stock, Qty 7

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 697895

Line-Fuel

Note: (Molded)

$36.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691147

Screw

Note: (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

212

Briggs & Stratton 861184

Link-Throttle

$27.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 792406

Bracket-Control

Note: Used After Code Date 06012300

$30.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 861183

Bracket-Control

Note: Used Before Code Date 06012400

$39.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 394358S

FILTER, Fuel

$5.99

$

In Stock, Qty 20+

0

259

Briggs & Stratton 691189

Bracket-Casing Clamp

$4.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

Note: (Throttle Cable)

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 691044

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, Qty 6

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.99

$

In Stock, Qty 8

0

365

Briggs & Stratton 699143

Screw
(Superseded to 691129)

Note: (Carburetor)

$3.99

$

In Stock, Qty 6

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 691321

Seal-Choke/Throttle Shaft

Note: (Throttle Shaft)

$4.99

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 693867

Seal-Choke/Throttle Shaft

Note: (Choke Shaft)

$4.99

$

In Stock, only 2 left!

0

668

Briggs & Stratton 861231

Spacer

Note: (Standoff) Used Before Code Date 03061600

$3.99

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

$5.49

$

In Stock, Qty 11

0

703

Briggs & Stratton 861202

Clip

Note: (Fuel Pump) Used Before Code Date 03052300

$4.99

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 861526

Bracket-Fuel Pump
(Superseded to 861530)

Note: (Without Limiter)

$114.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 698003

Base-Air Cleaner

Note: (Plastic)

$40.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 791766

LINE, Fuel

Note: (Cylinder To Impulse Pump)(Cut to Required Length)

$7.99

$

In Stock, Qty 20+

0

953

Briggs & Stratton 861312

Screen-Air Cleaner

$14.99

$

Usually ships in 2-12 days

0

958

Briggs & Stratton 698180

Valve-Fuel Shut Off

Note: (Plastic)

$11.99

$

In Stock, Qty 20+

0

971

Briggs & Stratton 690255

Screw

Note: (Air Cleaner Base) (Remote Choke)

$5.99

$

In Stock, only 3 left!

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available

1011

Briggs & Stratton 698094

Tube-Vent

Note: (Carburetor)

$

$

Not available

1054

Briggs & Stratton 861206

Tie-Cable

Note: (Black)

$4.49

$

In Stock, only 1 left!

0

1054

Briggs & Stratton 280275

Tie-Cable

Note: (White)

$4.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 281425

Cap-Limiter

$9.49

$

In Stock, only 1 left!

0

3027

Briggs & Stratton 861227

Standoff

Note: (Air Cleaner Base) Used Before Code Date 03061600

$5.99

$

Usually ships in 2-12 days

0

3046

Briggs & Stratton 861530

Limiter-Rev

$114.99

$

Usually ships in 2-12 days

0

3095

Briggs & Stratton 861644

Shield-Intake

$23.99

$

Usually ships in 2-12 days

0

3096

Briggs & Stratton 861253

Screw

Note: (Intake Shield)

$4.49

$

Usually ships in 2-12 days

0
