A648 (242A648-100) - Cub Cadet Shredder Engine (1992) Tec 8 HP Engine and Fuel Tank Assembly Parts Diagram

Shredder Engine

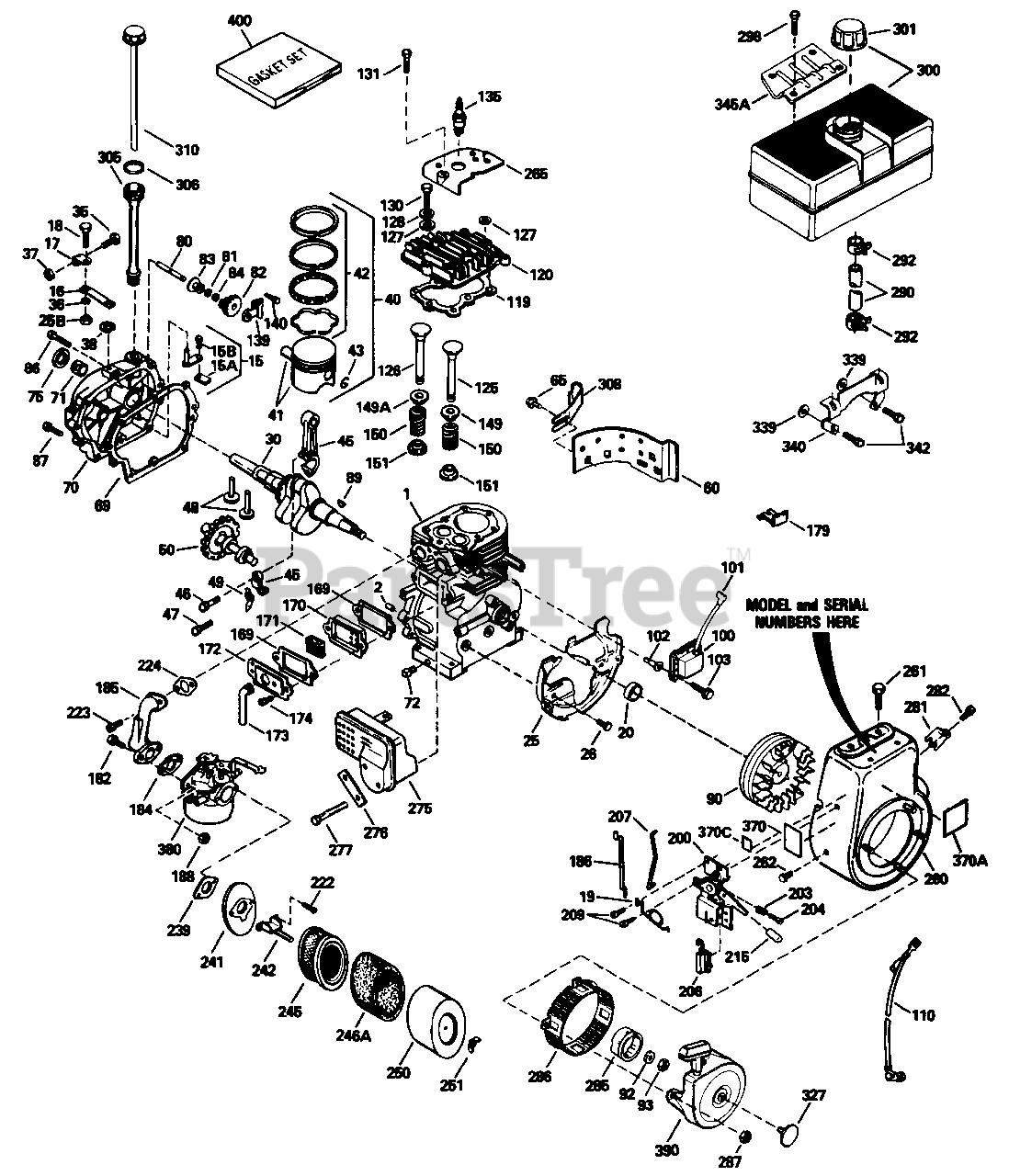

Tec 8 HP Engine and Fuel Tank Assembly Parts Diagram

  • Title

1

Cub Cadet TC-35385

Cylinder

Note: (Incl. Nos. 2, 20)

$311.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-27652

Pin, Dowel

$2.49

$

Usually ships in 3-12 days

0

15

Cub Cadet TC-30699C

Rod Ass'y., Governor

Note: (Incl. Nos. 15A & 15B)

$17.99

$

In Stock, only 1 left!

0

15A

Cub Cadet TC-30700

Yoke, Governor

$1.99

$

In Stock, only 2 left!

0

15B

Cub Cadet TC-650494

Screw, Fil. Hd. Sems, 6-40 x 5/16

$1.99

$

Usually ships in 3-12 days

0

16

Cub Cadet TC-33454

Lever, Governor
(Superseded to TC-33454A)

$10.99

$

In Stock, only 1 left!

0

17

Cub Cadet TC-29916

Clamp, Governor Lever

$1.99

$

In Stock, only 2 left!

0

18

Cub Cadet TC-650548

Screw, Hex Washer Hd., 8-32 x 5/16

$

$

Not available

19

Cub Cadet TC-34663

Spring, Speed Control

$1.99

$

In Stock, only 3 left!

0

20

Cub Cadet TC-35319

Seal, Oil

$4.99

$

In Stock, only 2 left!

0

25

Cub Cadet TC-35326

Baffle, Blower Housing
(Superseded to TC-37853)

$11.99

$

In Stock, only 1 left!

0

25B

Cub Cadet TC-30322

Lock Nut, Hex "Keps," 8-32

$1.99

$

Usually ships in 3-12 days

0

26

Cub Cadet TC-650561

Screw, Hex Washer Hd. Durlok, 1/4-20 x 5/8

$1.99

$

In Stock, only 2 left!

0

30

Cub Cadet TC-35372

Crankshaft
(Superseded to TC-35571A)

$166.99

$

Usually ships in 3-12 days

0

35

Cub Cadet TC-29826

Screw, Hex Washer Hd., 10-32 x 3/4

$1.99

$

In Stock, only 4 left!

0

36

Cub Cadet TC-29918

Washer, E.T. Lock

$1.99

$

In Stock, Qty 5

0

37

Cub Cadet TC-29216

Lock Nut, Hex "Keps," 10-32

$1.99

$

In Stock, only 3 left!

0

38

Cub Cadet TC-29642

Ring, Retaining

$100.99

$

In Stock, only 2 left!

0

40

Cub Cadet TC-34552

Piston, Pin & Ring Ass'y.
(Superseded to TC-40049)

Note: (Incl. Nos. 41, 42 & 43)

$

$

Not available

40

Cub Cadet TC-34553

Piston, Pin & Ring Ass'y. (.010 Oversize)

Note: (Incl. Nos. 41, 42 & 43)

$

$

Not available

40

Cub Cadet TC-34554

Piston, Pin & Ring Ass'y. (.020 Oversize)

Note: (Incl. Nos. 41, 42 & 43)

$

$

Not available

41

Cub Cadet TC-34329A

Piston & Pin Ass'y. (Std.)
(Superseded to TC-40049)

Note: (Incl. No. 10)

$

$

Not available

41

Cub Cadet TC-34330A

Piston & Pin Ass'y. (.010 Oversize)

Note: (Incl. No. 10)

$

$

Not available

41

Cub Cadet TC-34331A

Piston & Pin Ass'y. (.020 Oversize)

Note: (Incl. No. 10)

$

$

Not available

42

Cub Cadet TC-34332

Ring Set, Piston (Std.)

$

$

Not available

42

Cub Cadet TC-34333

Ring Set, Piston (.010 Oversize)

$

$

Not available

42

Cub Cadet TC-34334

Ring Set, Piston (.020 Oversize)

$38.99

$

In Stock, only 1 left!

0

43

Cub Cadet TC-27888

Ring, Piston Pin Retaining

$1.99

$

Usually ships in 3-12 days

0

45

Cub Cadet TC-35373A

Rod Ass'y., Connecting
(Superseded to TC-36897A)

Note: (Incl. Nos. 46, 47 & 49)

$48.99

$

In Stock, only 1 left!

0

46

Cub Cadet TC-650908

Bolt, Connecting Rod
(Superseded to TC-651063)

$1.99

$

In Stock, only 3 left!

0

47

Cub Cadet TC-650882

Bolt, Connecting Rod

$1.99

$

In Stock, only 1 left!

0

48

Cub Cadet TC-34034

Lifter, Valve
(Superseded to TC-34034A)

$10.99

$

In Stock, only 3 left!

0

49

Cub Cadet TC-35374

Dipper, Oil

$1.99

$

In Stock, only 4 left!

0

50

Cub Cadet TC-35375

Camshaft (Mechanical Compression Release)

$

$

Not available

60

Cub Cadet TC-33273A

Extension, Blower Housing

$7.49

$

Usually ships in 3-12 days

0

65

Cub Cadet TC-650128

Screw, Hex Hd. Sems, 10-24 x 1/2

$5.49

$

In Stock, only 2 left!

0

69

Cub Cadet TC-35262

Gasket, Cylinder Cover
(Superseded to TC-37342)

$11.99

$

In Stock, only 1 left!

0

70

Cub Cadet TC-35376

Cover Ass'y., Cylinder
(Superseded to TC-35376A)

Note: (Incl. Nos. 75 & 80)

$

$

Not available

71

Cub Cadet TC-35377

Bushing, Cylinder Cover

$11.99

$

In Stock, only 3 left!

0

72

Cub Cadet TC-27642

Plug, Pipe

$1.99

$

In Stock, only 3 left!

0

75

Cub Cadet TC-35319

Seal, Oil

$4.99

$

In Stock, only 2 left!

0

80

Cub Cadet TC-31845

Shaft, Governor

$

$

Not available

81

Cub Cadet TC-30590A

Washer, Flat

$1.99

$

In Stock, Qty 7

0

82

Cub Cadet TC-35378

Gear, Governor

Note: (Incl. No. 81)

$3.99

$

Usually ships in 3-12 days

0

83

Cub Cadet TC-30588A

Spool, Governor

$1.99

$

In Stock, only 4 left!

0

84

Cub Cadet TC-29193

Ring, Retaining

$1.99

$

In Stock, only 4 left!

0

86

Cub Cadet TC-650833

Screw, Hex Washer Hd. Power Lok, 1/4-20 x 1-3/16

$1.99

$

Usually ships in 3-12 days

0

87

Cub Cadet TC-650832

Screw, Hex Washer Hd. Power Lok, 1/4-20 x 1-11/16

$

$

Not available

89

Cub Cadet TC-32589

Key, Flywheel

$1.49

$

In Stock, Qty 6

0

90

Cub Cadet TC-611090

Flywheel

$166.99

$

Usually ships in 3-12 days

0

92

Cub Cadet TC-650880

Washer, Lock

$1.99

$

In Stock, only 3 left!

0

93

Cub Cadet TC-650881

Nut, Flywheel

$1.99

$

Usually ships in 3-12 days

0

100

Cub Cadet TC-35135

Solid State Ass'y.
(Superseded to TC-35135B)

$62.99

$

In Stock, only 2 left!

0

101

Cub Cadet TC-610118

Cover, Spark Plug

$6.49

$

In Stock, only 4 left!

0

102

Cub Cadet TC-650872

Stud, Solid State Mounting

$

$

Not available

103

Cub Cadet TC-650814

Screw, Torx Hex Washer Hd., Sems, 10-24 x 1
(Superseded to TC-651007)

$1.99

$

In Stock, only 4 left!

0

110

Cub Cadet TC-35187

Wire, Ground

$

$

Not available

119

Cub Cadet TC-34041A

Gasket, Cylinder Head

$5.49

$

Usually ships in 3-12 days

0

120

Cub Cadet TC-34030

Head, Cylinder

$

$

Not available

125

Cub Cadet TC-27878A

Valve, Exhaust (Std.)

Note: (Incl. No. 151)

$23.99

$

In Stock, only 1 left!

0

125

Cub Cadet TC-27880A

Valve, Exhaust (1/32" Oversize)

Note: (Incl. No. 151)

$

$

Not available

126

Cub Cadet TC-34035

Valve, Intake (Std.)

Note: (Incl. No. 151)

$15.99

$

In Stock, only 1 left!

0

126

Cub Cadet TC-34036

Valve, Intake (1/32" Oversize)

Note: (Incl. No. 151)

$

$

Not available

127

Cub Cadet TC-650691

Washer, Flat

$1.99

$

Usually ships in 3-12 days

0

128

Cub Cadet TC-650690

Washer, Belleville
(Superseded to TC-730324)

$9.99

$

In Stock, only 1 left!

0

130

Cub Cadet TC-650694A

Screw, Hex Flange Hd., 5/16-18 x 2

$3.49

$

In Stock, Qty 20+

0

131

Cub Cadet TC-650802

Screw, Hex Washer Hd. Taptite, 1/4-20 x 5/8

$1.99

$

In Stock, Qty 5

0

135

Cub Cadet 759-3331

Spark Plug

Note: (Champion J-8C or Equivalent)

$3.99

$

In Stock, only 2 left!

0

139

Cub Cadet TC-33369

Bracket, Governor Gear

$8.49

$

In Stock, only 1 left!

0

140

Cub Cadet TC-650836

Screw, Hex Washer Hd. Thread Forming, 10-24 x 1/2

$

$

Not available

149

Cub Cadet TC-27882

Cap, Upper Valve Spring

$1.99

$

In Stock, only 4 left!

0

149A

Cub Cadet TC-34689

Seal Ass'y., Intake Valve
(Superseded to TC-35862)

$9.49

$

In Stock, only 1 left!

0

150

Cub Cadet TC-27881

Spring, Valve

$3.99

$

In Stock, only 2 left!

0

151

Cub Cadet TC-32581

Cap, Lower Valve Spring

$6.49

$

In Stock, Qty 10

0

169

Cub Cadet TC-27896A

Gasket, Breather

$1.49

$

In Stock, Qty 16

0

170

Cub Cadet TC-28423

Body, Breather

$13.99

$

In Stock, only 1 left!

0

171

Cub Cadet TC-28424

Element, Breather

$3.99

$

In Stock, Qty 7

0

172

Cub Cadet TC-28425

Cover, Breather

$7.49

$

In Stock, only 1 left!

0

173

Cub Cadet TC-35350

Tube, Breather

$6.49

$

In Stock, only 1 left!

0

174

Cub Cadet TC-650128

Screw, Hex. Hd. Sems, 10-24 x 1/2

$5.49

$

In Stock, only 2 left!

0

179

Cub Cadet TC-29443

Clip, Wire

$1.99

$

In Stock, Qty 5

0

182

Cub Cadet TC-30088A

Screw, Fil. Hd. Sem, 1/4-28 x 1

$1.99

$

Usually ships in 3-12 days

0

184

Cub Cadet TC-33263

Gasket, Carburetor

$1.49

$

In Stock, Qty 20+

0

185

Cub Cadet TC-34707

Pipe, Intake

$33.99

$

In Stock, only 1 left!

0

186

Cub Cadet TC-34667

Link, Governor

$1.99

$

Usually ships in 3-12 days

0

188

Cub Cadet TC-29752

Nut, Whiz Lock, 1/4-28

$1.99

$

In Stock, Qty 5

0

200

Cub Cadet TC-34677

Bracket Ass'y., Control

Note: (Incl. Nos. 19, 203 & 204)

$54.99

$

In Stock, only 1 left!

0

203

Cub Cadet TC-31342

Spring, Compression

$5.99

$

In Stock, only 1 left!

0

204

Cub Cadet TC-650549

Screw, Fil. Hd., 5-40 x 7/16
(Superseded to TC-651029)

$1.99

$

In Stock, only 2 left!

0

206

Cub Cadet TC-610973

Terminal Ass'y.

$3.99

$

In Stock, only 1 left!

0

207

Cub Cadet TC-33878

Link, Governor-to-Throttle

$6.99

$

In Stock, only 1 left!

0

209

Cub Cadet TC-650821

Screw, Hex Washer Hd. Thread Cutting, 10-32 x 1/2

$1.99

$

Usually ships in 3-12 days

0

215

Cub Cadet TC-35882

Knob, Control

$1.99

$

In Stock, only 1 left!

0

222

Cub Cadet TC-28820

Screw, Fil. Hd. Sems, 10-32 x 1/2
(Superseded to TC-651081)

$4.49

$

Usually ships in 3-12 days

0

223

Cub Cadet TC-650378

Screw, Torx Fil. Hd., Sems 5/16-18 x 1-1/8

$1.99

$

In Stock, only 3 left!

0

224

Cub Cadet TC-27915A

Gasket, Intake Pipe

$5.99

$

In Stock, Qty 20+

0

239

Cub Cadet TC-27272A

Gasket, Air Cleaner

$4.49

$

In Stock, Qty 20+

0

241

Cub Cadet TC-33266

Bracket, Air Cleaner

$9.49

$

In Stock, only 1 left!

0

242

Cub Cadet TC-33267

Bracket, Air Cleaner

$7.49

$

In Stock, only 1 left!

0

245

Cub Cadet TC-33268

Element, Air Cleaner

$13.99

$

In Stock, Qty 8

0

246A

Cub Cadet TC-35881

Filter, Pre-Air Cleaner (Poly)

$5.49

$

In Stock, only 1 left!

0

250

Cub Cadet TC-33269A

Cover, Air Cleaner

$19.99

$

Usually ships in 3-12 days

0

251

Cub Cadet TC-550513

Nut, Wing 1/4-20

$

$

Currently unavailable

260

Cub Cadet TC-35879

Housing, Blower

$

$

Not available

261

Cub Cadet TC-650788

Screw, Hex Hd., Spinlock Thread Forming, 5/16-18 x 3/4

$1.99

$

In Stock, only 1 left!

0

262

Cub Cadet TC-29747B

Screw, Phil. Hex Hd. Sems, 5/16-24 x 21/32

$1.99

$

In Stock, Qty 9

0

265

Cub Cadet TC-33272A

Cover, Cylinder Head
(Superseded to TC-33272D)

$7.49

$

Usually ships in 3-12 days

0

275

Cub Cadet TC-34185A

Muffler
(Superseded to TC-34185B)

$46.99

$

In Stock, only 1 left!

0

276

Cub Cadet TC-31588

Plate, Lock

$4.99

$

In Stock, Qty 20+

0

277

Cub Cadet TC-650729

Screw, Hex Hd., 5/16-18 x 3-3/16

$1.99

$

In Stock, Qty 5

0

281

Cub Cadet TC-33013

Cover, Starter Hole

$3.99

$

Usually ships in 3-12 days

0

282

Cub Cadet TC-650760

Screw, Pan Hd. Taptite, 8-32 x 3/8

$1.99

$

In Stock, only 3 left!

0

285

Cub Cadet TC-35287

Hub, Starter

$

$

Not available

286

Cub Cadet TC-35446

Screen, Starter

$7.49

$

In Stock, only 1 left!

0

287

Cub Cadet TC-29752

Nut & Lock Washer, 1/4-28

$1.99

$

In Stock, Qty 5

0

290

Cub Cadet TC-30962

Line, Fuel

$30.99

$

In Stock, Qty 6

0

292

Cub Cadet TC-26460

Clamp, Fuel Line

$1.49

$

In Stock, Qty 10

0

298

Cub Cadet TC-650665

Screw, Hex Washer Hd. Thread Cutting, 1/4-15 x 7/8

$1.99

$

Usually ships in 3-12 days

0

300

Cub Cadet TC-34186A

Tank, Fuel

Note: (Incl. Nos. 292 & 301)

$53.99

$

In Stock, only 1 left!

0

301

Cub Cadet TC-35355

Cap, Fuel Tank
(Superseded to TC-37845)

$8.99

$

In Stock, Qty 11

0

305

Cub Cadet TC-35554

Tube, Oil Filler

$19.99

$

In Stock, only 1 left!

0

306

Cub Cadet TC-35499

Gasket, Dipstick

$1.49

$

In Stock, only 3 left!

0

308

Cub Cadet TC-35540

Clip, Oil Fill Tube

$1.99

$

In Stock, only 2 left!

0

310

Cub Cadet TC-35555

Dipstick, Oil
(Superseded to TC-36205)

Note: (Incl. No. 306)

$10.99

$

Usually ships in 3-12 days

0

327

Cub Cadet TC-35392

Plug, Starter

$1.99

$

In Stock, only 1 left!

0

339

Cub Cadet TC-35880

Spacer, Tank Bracket

$

$

Not available

340

Cub Cadet TC-34258A

Bracket, Fuel Tank

$

$

Currently unavailable

342

Cub Cadet TC-650783

Screw, Hex Washer Hd. Durlok, 1/4-20 x 5/8

$

$

Currently unavailable

345A

Cub Cadet TC-34259

Plate, Fuel Tank Mounting

$

$

Not available

370

Cub Cadet TC-34346

Decal, Instruction
(Superseded to TC-36261)

$

$

Not available

370A

Cub Cadet TC-34686

Decal, Name

$

$

Not available

370C

Cub Cadet TC-35344

Decal, Throttle

$

$

Not available

380

Cub Cadet TC-632351

Carburetor

Note: (Incl. No. 184)

$113.99

$

Usually ships in 3-12 days

0

390

Cub Cadet TC-590633

Starter, Rewind

$

$

Not available

400

Cub Cadet TC-33279G

Gasket Set

$26.99

$

Usually ships in 3-12 days

0
