A3-053201 (RR-532) - Toro Rear-Engine Riding Mower (1982) Front Axle And Steering Parts Diagram

Rear-Engine Riding Mower

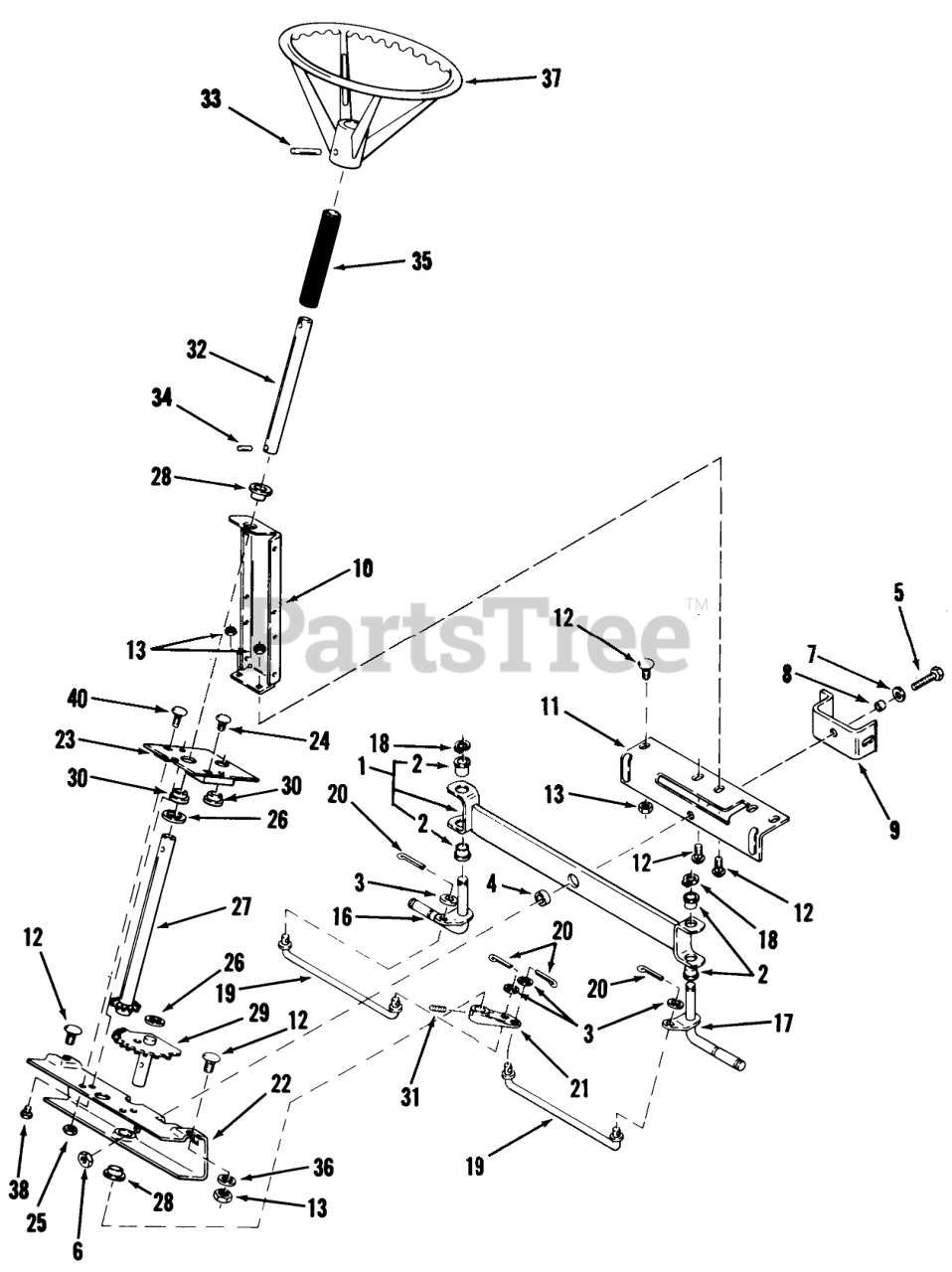

Front Axle And Steering Parts Diagram

  • Title
1

Toro 108866

ASSY-FRNT AXLE/BRG

$

$

Not available

2

Toro 106950

BUSHING

$15.99

$

Usually ships in 3-6 days

0

3

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 19

0

4

Toro 106898

See Supercession: 92-6035
(Superseded to 92-6035)

$

$

Not available

5

Toro 908061

See Supercession: 325-8
(Superseded to 325-8)

$5.49

$

In Stock, Qty 7

0

6

Toro 915115

See Supercession: 3296-23
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

7

Toro 920041

See Supercession: 3256-6
(Superseded to 3256-6)

$0.99

$

In Stock, Qty 20+

0

8

Toro 106286

DISCONTINUED

$

$

Not available

9

Toro 109358

DISCONTINUED

$

$

Not available

10

Toro 108863

DISCONTINUED

$

$

Not available

11

Toro 108857

DISCONTINUED

$

$

Not available

12

Toro 900062

See Supercession: 3231-1
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

13

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

16

Toro 108880

DISCONTINUED

$

$

Not available

17

Toro 108879

ASSY-SPINDLE LH *R

$

$

Not available

18

Toro 104822

See Supercession: 32120-93
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

19

Toro 108869

DISCONTINUED

$

$

Not available

20

Toro 932016

See Supercession: 3272-10
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

21

Toro 109260

ARM-STEERING

$37.99

$

Usually ships in 3-6 days

0

22

Toro 108862

DISCONTINUED

$

$

Not available

23

Toro 107932

DISCONTINUED

$

$

Not available

24

Toro 900063

See Supercession: 3231-2
(Superseded to 323-12)

$2.49

$

In Stock, Qty 12

0

25

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

26

Toro 920257

See Supercession: 9202574
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

27

Toro 108428

DISCONTINUED

$

$

Not available

28

Toro 101442

BEARING

$

$

Not available

29

Toro 106878

ASSY-STEERING SEC *R (NS)

$

$

Not available

30

Toro 106950

BUSHING

$15.99

$

Usually ships in 3-6 days

0

31

Toro 933216

PIN-ROLL, SPIROL

$3.49

$

In Stock, only 1 left!

0

32

Toro 108585

DISCONTINUED

$

$

Not available

33

Toro 933221

See Supercession: 32121-111
(Superseded to 32121-111)

$2.99

$

In Stock, Qty 20+

0

34

Toro 933213

SPIROL PIN

$

$

Not available

35

Toro 108670

DISCONTINUED

$

$

Not available

36

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 19

0

37

Toro 515056

DISCONTINUED

$

$

Not available

38

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

40

Toro 900065

See Supercession: 3231-4
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0
