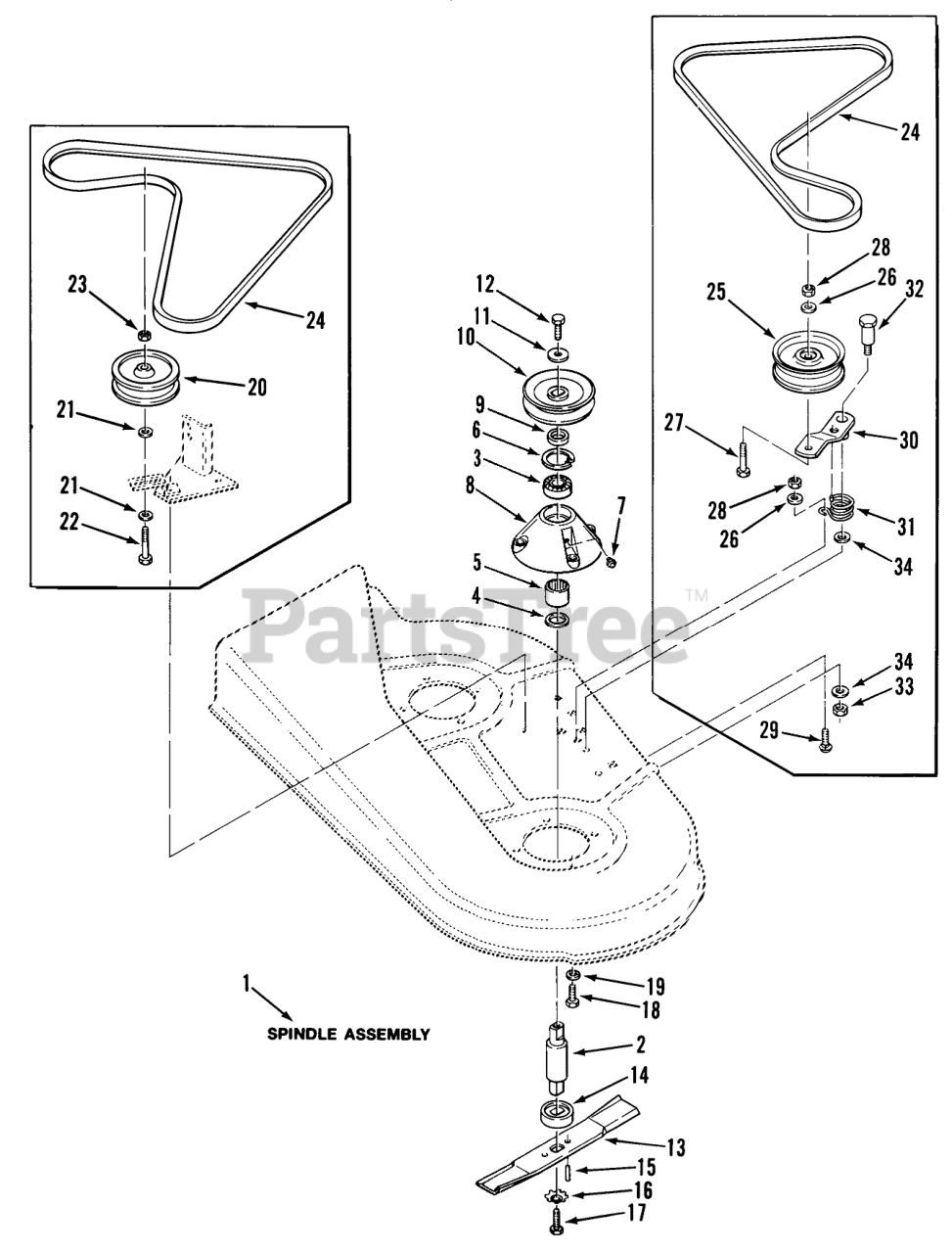

A3-053201 (RR-532) - Toro Rear-Engine Riding Mower (1982) 32 In/81 Cm Spindles-5 8 Hp Riders Parts Diagram

Rear-Engine Riding Mower

32 In/81 Cm Spindles-5 8 Hp Riders Parts Diagram

  • Title

1

Toro 107275

DISCONTINUE

$

$

Not available

2

Toro 103691

DISCONTINUED

$

$

Not available

3

Toro 101480

BEARING-BALL

$56.99

$

In Stock, only 3 left!

0

4

Toro 100863

OIL SEAL

$16.99

$

In Stock, only 4 left!

0

5

Toro 1528

BEARING-NEEDLE

$59.99

$

In Stock, only 1 left!

0

6

Toro 936029

INT SNAP RING

$3.49

$

Usually ships in 3-6 days

0

7

Toro 3796

See Supercession: 302-16
(Superseded to 302-16)

$

$

Not available

8

Toro 8242

HOUSING

$795.99

$

Usually ships in 3-6 days

0

9

Toro 8244

SPACER

$15.99

$

Usually ships in 3-6 days

0

10

Toro 107643

DISCONTINUED

$

$

Not available

10

Toro 109796

DISCONTINUED

$

$

Not available

11

Toro 2844

WASHER

$2.99

$

In Stock, Qty 16

0

12

Toro 908032

See Supercession: 323-4
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

13

Toro 108040

S/A BLADE KIT

$186.99

$

Usually ships in 3-6 days

0

14

Toro 8248

DISCONTINUED

$

$

Not available

15

Toro 933211

SPIROL ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

16

Toro 1336

DISCONTINUED

$

$

Not available

17

Toro 908032

See Supercession: 323-4
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

18

Toro 908033

See Supercession: 110242
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

19

Toro 920083

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

24

Toro 108491

DISCONTINUED

$

$

Not available

25

Toro 109450

PULLEY-IDLER
(Superseded to 94-4935)

$125.99

$

Usually ships in 3-6 days

0

26

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 19

0

27

Toro 908037

See Supercession: 323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

28

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

29

Toro 900063

See Supercession: 3231-2
(Superseded to 323-12)

$2.49

$

In Stock, Qty 12

0

30

Toro 108782

DISCONTINUED

$

$

Not available

31

Toro 108177

SPRING-TORSION

$19.99

$

Usually ships in 3-6 days

0

32

Toro 108176

DISCONTINUED

$

$

Not available

33

Toro 915237

See Supercession: 3218-4
(Superseded to 3218-4)

$0.99

$

Usually ships in 3-6 days

0

34

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

10

Toro 107276

DISCONTINUED

$

$

Not available

13

Toro 106163

S/A BLADE KIT

$243.99

$

Usually ships in 3-6 days

0

20

Toro 6719

See Supercession: 92-7101
(Superseded to 92-7101)

$34.99

$

In Stock, only 1 left!

0

21

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 19

0

22

Toro 908038

See Supercession: 323-10
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

23

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0
