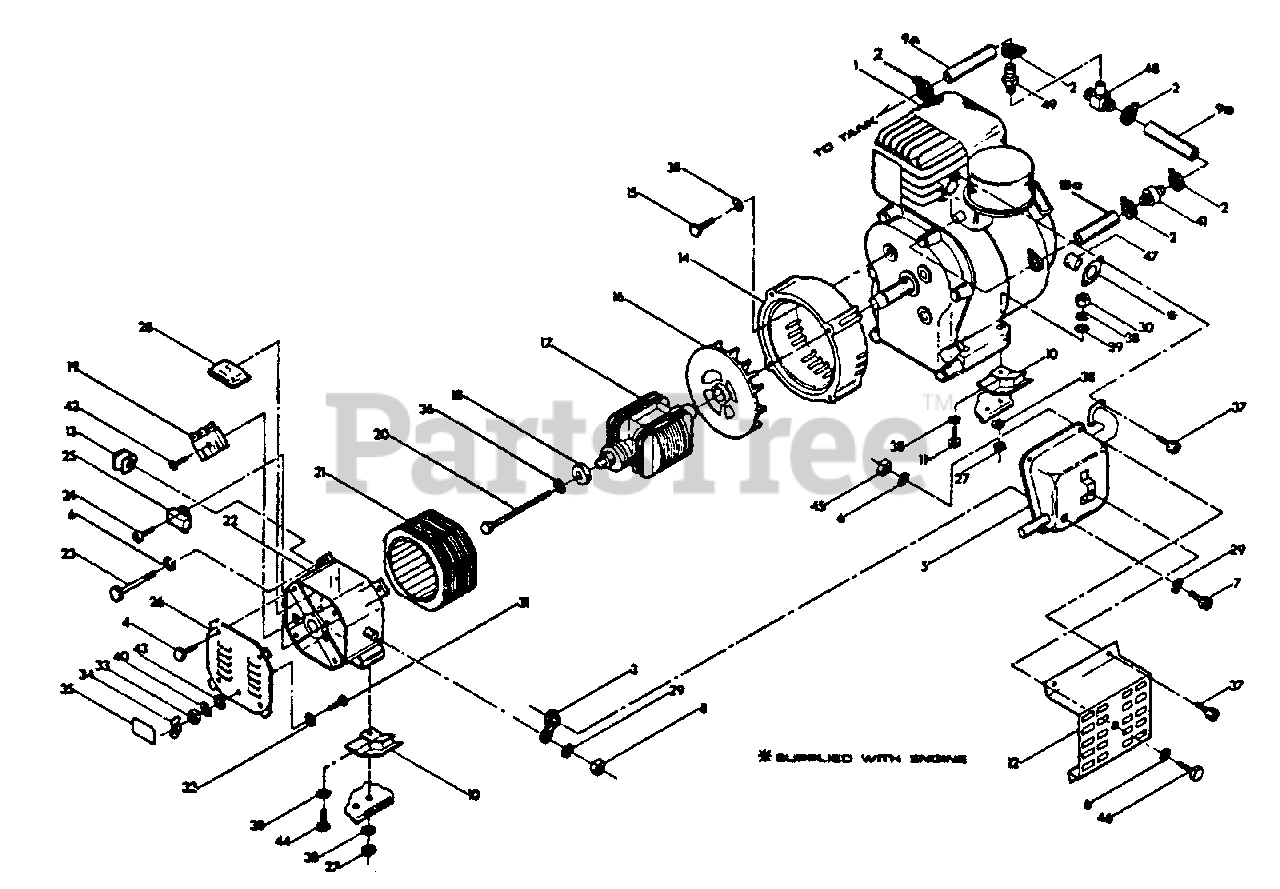

A2400 (8968-0) - Generac 2,250 Watt Portable Generator Generator Parts Diagram

2,250 Watt Portable Generator

Generator Parts Diagram

  • Title

1

Briggs & Stratton 71393

ENGINE - Briggs & Stratton 5 H.P.

$

$

Currently unavailable

2

Briggs & Stratton 48031C

CLAMP, Fuel Line

$

$

Not available

3

Briggs & Stratton 73019

BRACKET, Exhaust Muffler Support

$

$

Currently unavailable

4

Briggs & Stratton 66849B

SCREW (Taptite) - M5-0.80 x 8mm
(Superseded to 66849BGS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 72281

MUFFLER, Exhaust - Spark Arrestor Type

$

$

Currently unavailable

6

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 73032

CAPSCREW, Socket Head - 3/8"-16 x 1/2"

$

$

Currently unavailable

8

Briggs & Stratton 51755

CAPSCREW, Hex Head - M10-1.50 x 16mm

$

$

Currently unavailable

9A

Briggs & Stratton 47662F

HOSE, Fuel - 20" long

$

$

Currently unavailable

9B

Briggs & Stratton 47662AN

HOSE, Fuel - 17" long

$

$

Currently unavailable

9C

Briggs & Stratton 47662B

HOSE, Fuel - 3" long

$

$

Not available

10

Briggs & Stratton 70642

MOUNT, Vibration
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 71752

SCREW, Pan Head - 5/16"-18 x 1-3/4"

$

$

Currently unavailable

12

Briggs & Stratton 72292

SHIELD, Exhaust Muffler Heat
(Superseded to 72292GS)

$21.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 67022

GROMMET, Lead Outlet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66365

HOUSING, Engine Adapter
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22336

CAPSCREW, Hex Head - 5/16"-18 x 3/4"

$

$

Not available

16

Briggs & Stratton 66389

FAN, Cooling

$

$

Not available

17

Briggs & Stratton 72064

ROTOR

$

$

Currently unavailable

18

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

20

Briggs & Stratton 36180

BOLT, Rotor - 5/16"-24 x 6-3/8"
(Superseded to 36180GS)

$11.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 72061

STATOR

$

$

Currently unavailable

22

Briggs & Stratton 66825

CARRIER, Rear Bearing

$

$

Currently unavailable

23

Briggs & Stratton 66449B

BOLT, Stator

$

$

Currently unavailable

24

Briggs & Stratton 66849

SCREW (Taptite) - M5-0.80 x 20mm
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66386

HOLDER, Brush
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

26

Briggs & Stratton 67025

COVER, Bearing Carrier

$

$

Currently unavailable

27

Briggs & Stratton 45771

NUT, Hex - M8-1.25

$

$

Not available

28

Briggs & Stratton 66850

BOARD, Circuit - Bridge Rectifier
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 46526

WASHER, Lock - M10

$

$

Not available

30

Briggs & Stratton 22241

NUT, Hex - 3/8"-16

$

$

Not available

31

Briggs & Stratton 52619

SCREW, Machine - M5-0.80 x 20mm
(Superseded to 52619GS)

$1.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 67444

WASHER, Serrated - M5

$

$

Currently unavailable

33

Briggs & Stratton 51716

NUT, Hex - M5-0.80
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 67435

NUT, Wing - M5-0.80

$

$

Currently unavailable

35

Briggs & Stratton 67210

DECAL - Ground
(Superseded to 67210GS)

$8.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 67451

WASHER, Flat (Special) - M8

$

$

Currently unavailable

37

Briggs & Stratton 39974

CAPSCREW, Socket Head - 1/4"-20 x 1/2"

$

$

Currently unavailable

38

Briggs & Stratton 22129

WASHER, Lock - M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

39

Briggs & Stratton 49610

WASHER, Flat - M8

$

$

Currently unavailable

40

Briggs & Stratton 49226

WASHER, Lock - M5
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 68740

FILTER, Fuel
(Superseded to 68740GS)

$

$

Not available

42

Briggs & Stratton 66849A

SCREW (Taptite) - M5-0.80 x 20mm
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 23897

WASHER, Flat - M5
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 70644

SCREW, Pan Head - M8-1.25 x 20mm
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 22127

NUT, Hex - 1/4"-20mm

$

$

Not available

46

Briggs & Stratton 43146

CAPSCREW, Hex Head - M6-1.00 x 10mm
(Superseded to 43146GS)

$7.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 60211

LINER, Port

$

$

Currently unavailable

48

Briggs & Stratton 71384

VALVE Fuel Shutoff

$

$

Not available

49

Briggs & Stratton 28414

FITTING, Barbed - 1/4"

$

$

Currently unavailable
