A2400 (8968-0) - Generac 2,250 Watt Portable Generator Cradle Parts Diagram

2,250 Watt Portable Generator

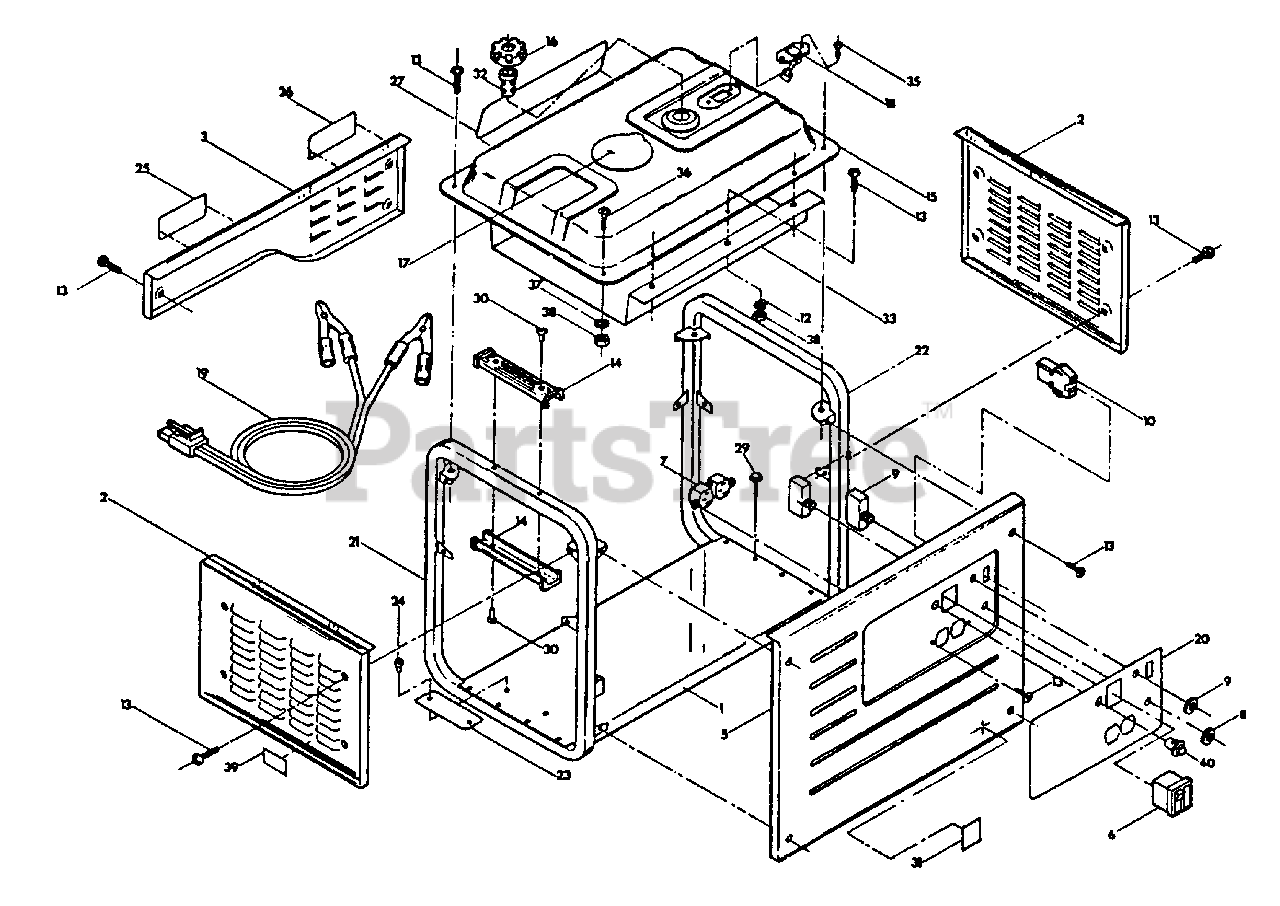

Cradle Parts Diagram

  • Title

1

Briggs & Stratton 73015

BASE, Engine Cradle
(Superseded to 7073015YP)

$15.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 73011

PANEL, End

$

$

Not available

3

Briggs & Stratton 73008

PANEL, Muffler
(Superseded to 7073008YP)

$3.49

$

In Stock, only 1 left!

0

5

Briggs & Stratton 73003

PANEL, Receptacle
(Superseded to 7073003YP)

$9.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66817

SWITCH, Engine - Run/Stop
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 68759

RECEPTACLE - 120 Volt, 20 Amps
(Superseded to 68759GS)

$24.99

$

In Stock, Qty 8

0

8

Briggs & Stratton 66819

BREAKER, Circuit - 20 Amps

$

$

Currently unavailable

9

Briggs & Stratton 66820

BREAKER, Circuit - 10 d-c Amperes

$

$

Not available

10

Briggs & Stratton 6720730

RECEPTACLE. Battery Charge - 12 Volts d-c, 10 Amps

$

$

Currently unavailable

12

Briggs & Stratton 22152

LOCKWASHER - No. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 23964

SCREW, Machine No. 10-32 x 1/2"

$

$

Currently unavailable

14

Briggs & Stratton 66450

COVER, Handle

$

$

Not available

15

Briggs & Stratton 69661

TANK, Fuel - 2.34 U.S. Gallons

$

$

Not available

16

Briggs & Stratton 69658

CAP, Fuel Tank Filler

$

$

Currently unavailable

17

Briggs & Stratton 64680B

COVER, Spark Plug Access
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66391B

INDICATOR, Fuel Level

$

$

Not available

19

Briggs & Stratton 71394

CABLE, Battery Charge
(Superseded to 71394GS)

$42.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 73007B

DECAL - Receptacle Panel

$

$

Currently unavailable

21

Briggs & Stratton 72275

CRADLE, Engine End

$

$

Currently unavailable

22

Briggs & Stratton 72276

CRADLE, Generator End
(Superseded to 7072276YP)

$62.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 67430E

PLATE, Serial

$

$

Currently unavailable

24

Briggs & Stratton 25832

RIVET, Serial Plate

$

$

Currently unavailable

26

Briggs & Stratton 66824

DECAL - Caution!/Hot!

$

$

Currently unavailable

27

Briggs & Stratton 73036B

DECAL - Data

$

$

Currently unavailable

29

Briggs & Stratton 58441

SCREW (Crimptite) - 1/4"-20 x 3/8"

$

$

Currently unavailable

30

Briggs & Stratton 66831

RIVET - Black (Anodized)

$

$

Not available

31

Briggs & Stratton 29084

DECAL - Spark Arrest Muffler

$

$

Currently unavailable

32

Briggs & Stratton 70630

FILTER, Fuel

$

$

Currently unavailable

33

Briggs & Stratton 74743

SHIELD, Fuel Tank Heat

$

$

Currently unavailable

35

Briggs & Stratton 52749

SCREW, Machine - M5-0.80 x 12mm

$

$

Currently unavailable

36

Briggs & Stratton 23963

SCREW, Machine - No. 10-32 x 3/4"
(Superseded to 593696)

$25.99

$

In Stock, only 2 left!

0

37

Briggs & Stratton 23762

WASHER, Serrated - No. 10
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 22158

NUT, Hex - No. 10-32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

39

Briggs & Stratton 73054

DECAL - Fuel Shutoff

$

$

Not available

40

Briggs & Stratton 71381

LIGHT, Indicator (LED)

$

$

Currently unavailable

40

Briggs & Stratton 73059

MANUAL, Owner's
(Superseded to 73059GS)

$14.99

$

Usually ships in 2-12 days

0
