A2-16BP01 (LT-1600) - Toro Lawn Tractor (1984) PTO CLUTCH Parts Diagram

Lawn Tractor

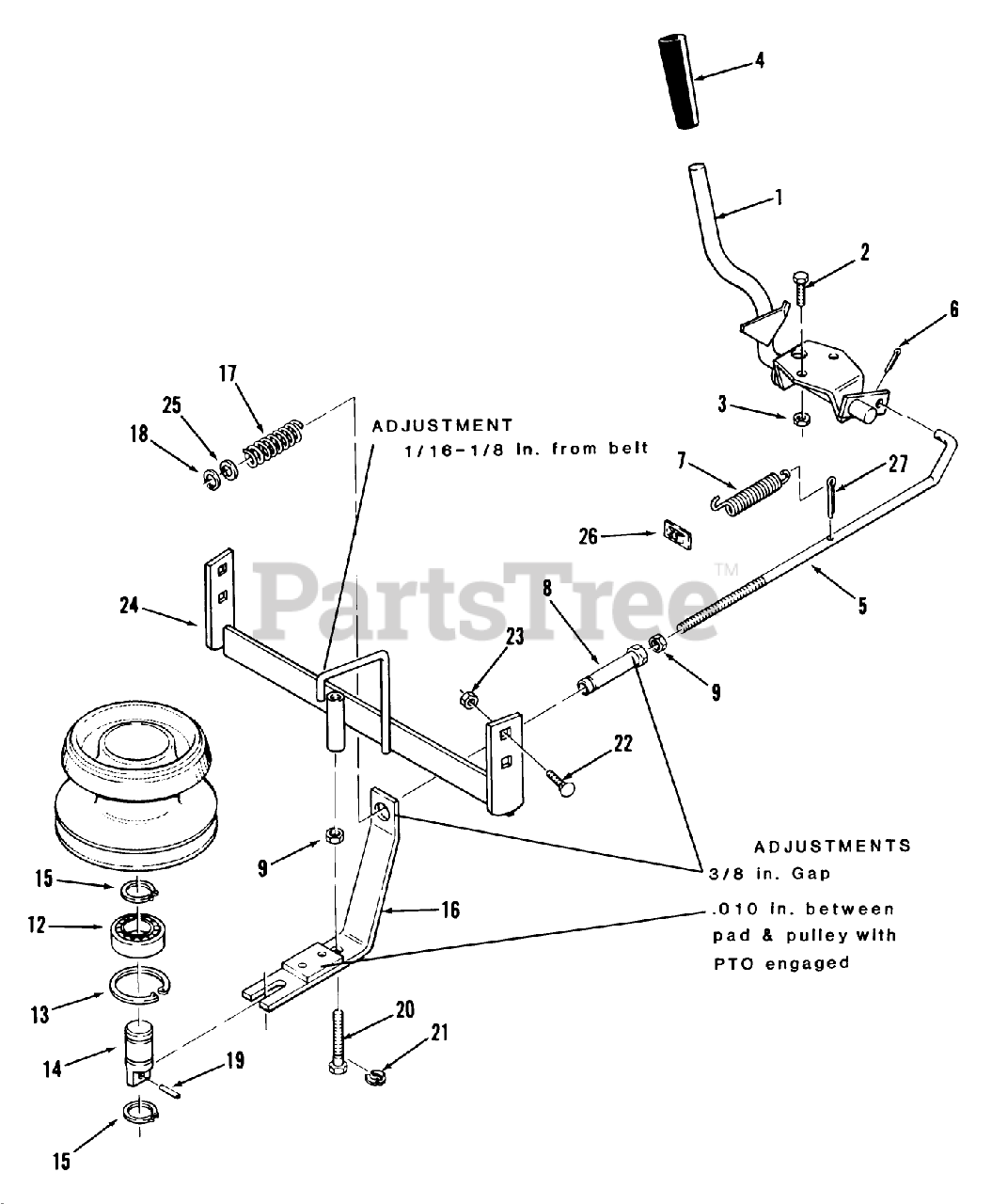

PTO CLUTCH Parts Diagram

  • Title
1

Toro 109179

ASSY-HANDLE

$

$

Not available

2

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

3

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

4

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0

5

Toro 108426

PTO Clutch Rod
(Superseded to 111181)

$

$

Not available

6

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

7

Toro 1014

Spring

$

$

Not available

8

Toro 107818

TUBE-CLUTCH SPACER

$

$

Not available

9

Toro 915235

Jam Nut 5/16-18
(Superseded to 3218-2)

$0.99

$

In Stock, Qty 20+

0

12

Toro 109842

BEARING-BALL

$31.99

$

In Stock, only 1 left!

0

13

Toro 936032

Ring-Snap
(Superseded to 32120-62)

$4.99

$

In Stock, Qty 8

0

14

Toro 107747

Shaft Clutch Hsg
(Superseded to 111084)

$

$

Not available

15

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

16

Toro 109346

ASM-CLUTCH BRAKE PTO

$

$

Not available

17

Toro 106573

SPRING-CLUTCH

$

$

Not available

17

Toro 109832

SPRING-COMPRESSION

$

$

Not available

18

Toro 107825

Retaining Ring
(Superseded to 32151-61)

$2.99

$

In Stock, Qty 20+

0

19

Toro 933198

SPIROL PIN 7/32X7/8

$1.99

$

Usually ships in 3-6 days

0

20

Toro 107748

SCREW-CLUTCH ADJUST

$

$

Not available

21

Toro 107772

E-Ring
(Superseded to 32151-73)

$2.99

$

In Stock, Qty 6

0

22

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

23

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

24

Toro 108459

Clutch Mounting Bracket
(Superseded to 112453)

$

$

Not available

24

Toro 108411

Clutch Mounting Bracket 216-5 Only
(Superseded to 112454)

$

$

Not available

25

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

26

Toro 7721

SPEED NUT

$1.99

$

Usually ships in 3-6 days

0

27

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0
