A2-164201 (LT-1642) - Toro Lawn Tractor (1982) DRIVE BELT AND PULLEYS Parts Diagram

Lawn Tractor

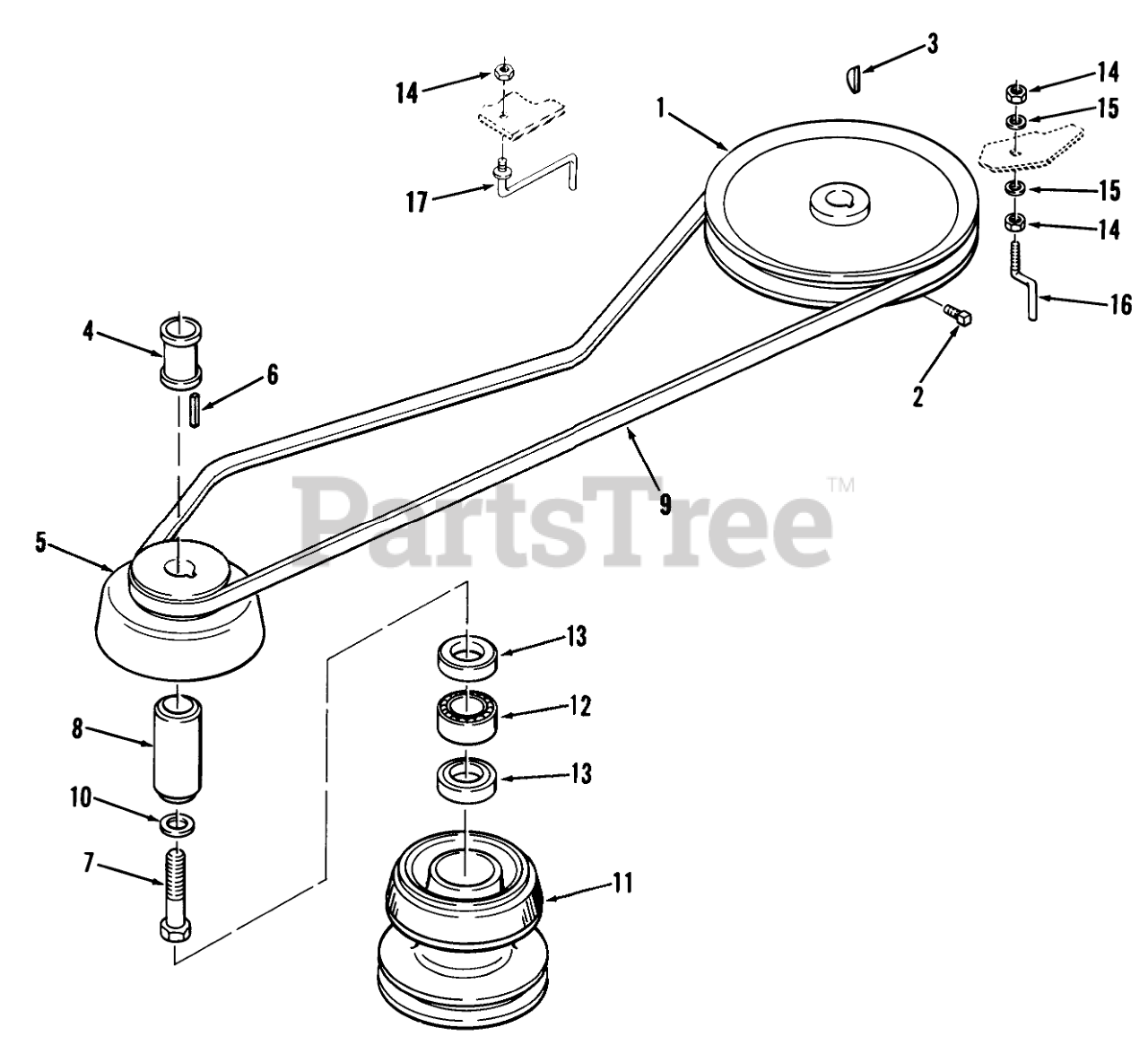

DRIVE BELT AND PULLEYS Parts Diagram

  • Title

1

Toro 108790

PULLEY-TRANS

$

$

Not available

1

Toro 106387

PULLEY-TRANSMISSION

$188.99

$

Usually ships in 3-6 days

0

2

Toro 909540

Set Screw
(Superseded to 3242-2)

$1.99

$

In Stock, only 3 left!

0

3

Toro 937225

KEY-HI-PRO

$5.49

$

Usually ships in 3-6 days

0

4

Toro 109731

TUBE SPACER

$

$

Not available

5

Toro 108408

PULLEY-ENGINE

$209.99

$

Usually ships in 3-6 days

0

6

Toro 105453

Key

$2.49

$

In Stock, only 2 left!

0

7

Toro 908195

HEX HD CAP SCREW

$

$

Not available

8

Toro 106564

RACE BEARING

$

$

Not available

9

Toro 108427

V-BELT

$43.99

$

Usually ships in 3-6 days

0

10

Toro 107750

WASHER

$

$

Not available

11

Toro 106565

Assy Pulley Mwr Dr
(Superseded to 111321)

$

$

Not available

12

Toro 106769

BRG-NEEDLE OPEN END

$60.99

$

In Stock, only 1 left!

0

13

Toro 6663

SEAL-OIL

$12.99

$

In Stock, only 1 left!

0

14

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

15

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

16

Toro 108397

GUIDE-BELT

$

$

Not available

17

Toro 109041

GUIDE-BELT

$

$

Not available

3

Toro 937222

HARD HI PRO KEY

$3.49

$

In Stock, Qty 14

0

4

Toro 109485

Tube Spacer LT-1032 Only

$

$

Currently unavailable

4

Toro 106563

TUBE SPACER

$126.99

$

Usually ships in 3-6 days

0

5

Toro 109535

Pulley Engine LT-1032 Only

$

$

Currently unavailable

5

Toro 106562

PULLEY-ENGINE

$

$

Not available

6

Toro MW10421

Key 3/16 x 3/16 x 5/8

$

$

Not available

7

Toro 908138

Bolt 3/8-16 x 3 1/4
(Superseded to 323-20)

$3.49

$

In Stock, only 2 left!

0

8

Toro 109486

Bearing Race LT-1032 Only

$

$

Currently unavailable

9

Toro 106518

V-BELT

$

$

Not available
