A2-12KE02 (212-H) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) WHEEL & TIRE ASSEMBLY Parts Diagram

Lawn Tractor

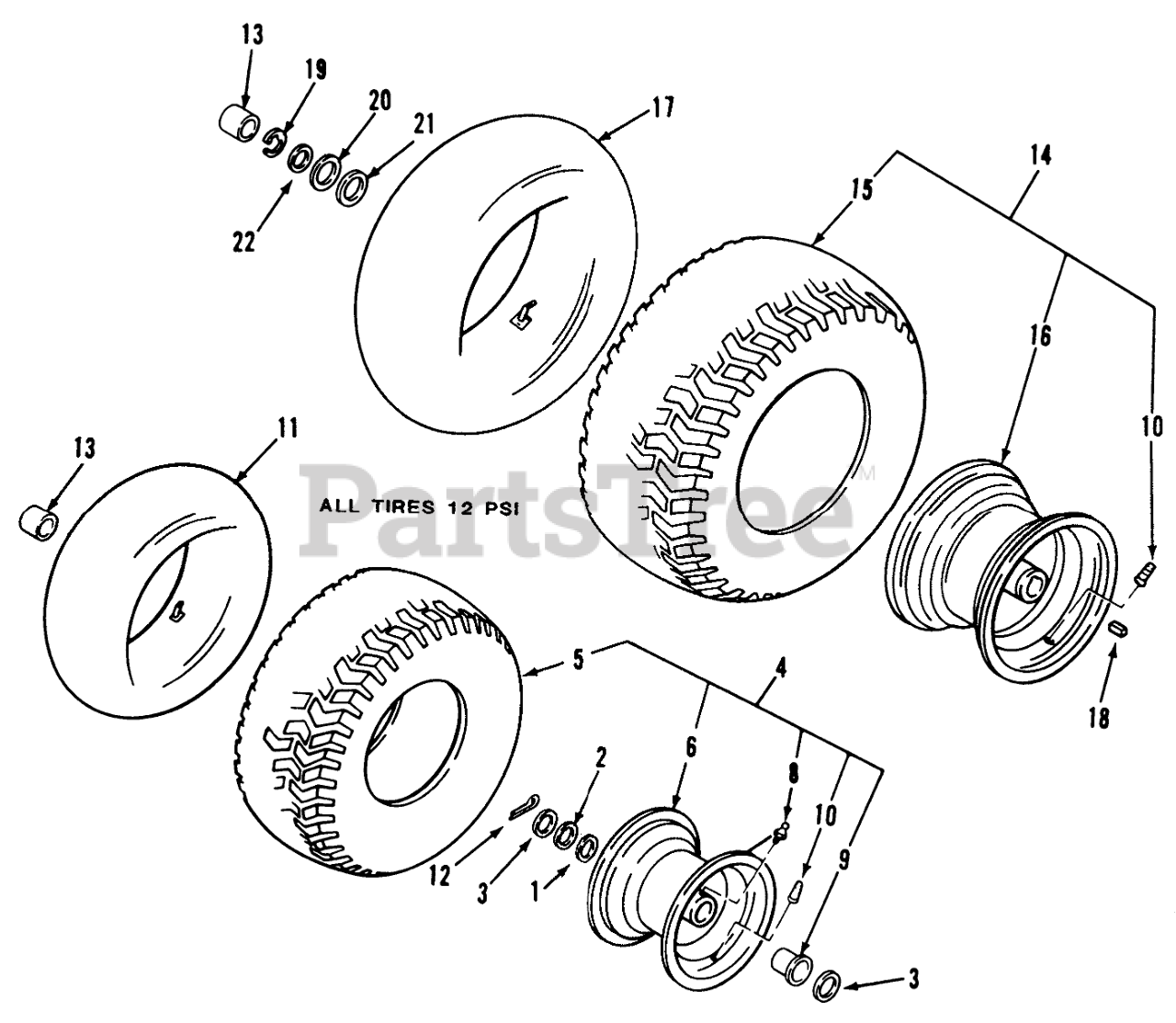

WHEEL & TIRE ASSEMBLY Parts Diagram

  • Title
1

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

2

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

3

Toro 109262

WASHER-FLAT

$4.49

$

In Stock, only 1 left!

0

4

Toro 114015

Front Tire & Wheel (Incl. Ref. #5, 6, & 8-10)

$

$

Not available

5

Toro 8119

TIRE15 X 6.00-6

$

$

Not available

6

Toro 114014

Assembly-Front Wheel (Incl. Ref. #8-10)

$

$

Not available

8

Toro 109500

ZERK-GREASE

$3.99

$

Usually ships in 3-6 days

0

9

Toro 113342

BUSHING

$9.49

$

In Stock, only 1 left!

0

10

Toro 5108

VALVE

$6.99

$

In Stock, Qty 14

0

11

$

$

Not available

12

Toro 932026

COTTER PIN-4

$0.99

$

In Stock, Qty 13

0

13

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

13

Toro 109261

HUB CAP

$

$

Not available

14

Toro 112187

Rear Wheel & Tire-212-5

$

$

Not available

14

Toro 114022

Rear Wheel & Tire-212-H

$

$

Not available

15

Toro 105451

TIRE 18 X 9.50-8

$268.99

$

Usually ships in 3-6 days

0

16

Toro 112188

ASSY WHEEL

$

$

Not available

16

Toro 113990

ASSY-WHEEL

$

$

Not available

17

Toro 105450

Tube-Inner
(Superseded to 106396)

$41.99

$

Usually ships in 3-6 days

0

18

Toro 1120

SQ KEY

$3.49

$

Usually ships in 3-6 days

0

18

Toro 2590

Key
(Superseded to 5-1336)

$10.99

$

In Stock, Qty 5

0

19

Toro 104636

E Ring
(Superseded to 32151-48)

$1.99

$

In Stock, Qty 14

0

19

Toro 7939

Snap Ring
(Superseded to 32151-36)

$4.99

$

In Stock, Qty 20+

0

20

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

20

Toro 920252

Washer
(Superseded to 9202524)

$1.99

$

Usually ships in 3-6 days

0

21

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

21

Toro 920251

USE 920251P WASHER

$3.49

$

In Stock, only 2 left!

0

22

Toro 109262

WASHER-FLAT

$4.49

$

In Stock, only 1 left!

0

22

Toro 920239

Washer
(Superseded to 9202394)

$2.99

$

Usually ships in 3-6 days

0
