A2-12KE02 (212-H) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) TRANSMISSION LINKAGE ASSEMBLY (212-H) Parts Diagram

Lawn Tractor

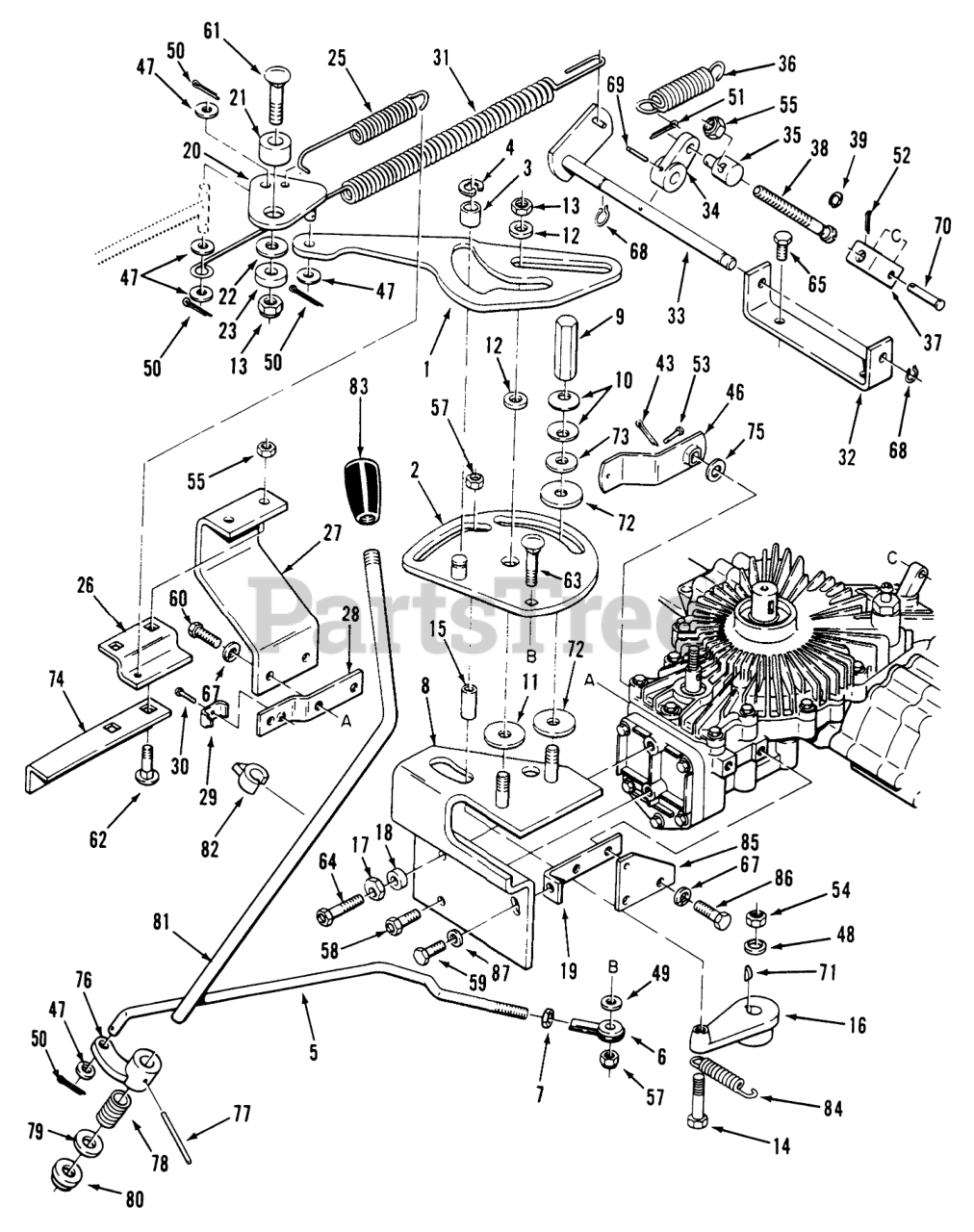

TRANSMISSION LINKAGE ASSEMBLY (212-H) Parts Diagram

  • Title
1

Toro 114416

NEUT-RETURN PLATE

$

$

Not available

2

Toro 114401

ASS'Y-CAM PLATE

$

$

Not available

3

Toro 100656

BEARING-CAM RETURN

$6.49

$

In Stock, Qty 5

0

4

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

5

Toro 116339

ROD-SPEED CONTROL

$

$

Not available

6

Toro 110189

ASSY ROD END

$

$

Not available

7

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

8

Toro 114403

ASS'Y-CAM PLATE S R

$

$

Not available

9

Toro 114695

NUT-SPECIAL 3/8 X 2"

$

$

Not available

10

Toro 100365

WASHER-SPRING DISC

$

$

Not available

11

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

12

Toro 100309

CAM-SPACER

$9.99

$

In Stock, only 1 left!

0

13

Toro 109779

NUT-HEX, JAM

$

$

Not available

14

Toro 911459

HHMS 1/4-20 X 2 1/2

$

$

Not available

15

Toro 114402

SPACER

$6.99

$

Usually ships in 3-6 days

0

16

Toro 116340

ARM MOTION CONTROL

$

$

Not available

17

$

$

Not available

18

Toro 109447

SPACER-GEAR

$

$

Not available

19

Toro 114656

ASS'Y-ANGLE SUPPORT

$

$

Not available

20

Toro 114404

PIVOT PLATE ASSY R

$

$

Not available

21

Toro 114697

SPACER

$

$

Not available

22

Toro 920271

WASHER-SPECIAL

$1.99

$

Usually ships in 3-6 days

0

23

Toro 104859

SPACER-LIFT LINK

$51.99

$

Usually ships in 3-6 days

0

25

Toro 114818

SPRING-RETURN

$

$

Not available

26

Toro 114668

BRACKET R

$

$

Not available

27

Toro 114410

BRACKET-TORQUE R

$

$

Not available

28

Toro 115678

PLATE-MOUNTING R

$

$

Not available

29

Toro 111688

CLAMP THROTTLE
(Superseded to 2210-249)

$3.49

$

Usually ships in 3-6 days

0

30

Toro 926641

HWHTRS 10-24 X 1/2

$3.49

$

Usually ships in 3-6 days

0

31

Toro 114698

SPRING-BRAKE

$93.99

$

Usually ships in 3-6 days

0

32

Toro 114666

BRACKET

$

$

Not available

33

Toro 114670

ASS'Y-BRAKE PIVOT

$

$

Not available

34

Toro 114663

PLATE

$

$

Not available

35

Toro 104524

TRUNNION-CLUTCH ROD

$43.99

$

Usually ships in 3-6 days

0

36

Toro 107677

SPRING-BRAKE

$16.99

$

In Stock, Qty 10

0

37

Toro 114665

CLEVIS R

$

$

Not available

38

Toro 116287

BOLT-ADJUSTING

$

$

Not available

39

Toro 32151-73

RING-CLIP

$3.49

$

In Stock, Qty 6

0

43

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

46

Toro 116398

Plate

$

$

Not available

47

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

48

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

49

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

50

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

51

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

52

Toro 3272-2

PIN-COTTER

$2.99

$

In Stock, only 2 left!

0

53

$

$

Not available

54

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

55

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

57

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

58

Toro 926696

Bolt
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0

59

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

60

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

61

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

62

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

63

Toro 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 13

0

64

Toro 926698

Bolt
(Superseded to 9266984)

$

$

Not available

65

Toro 908016

Bolt
(Superseded to 322-2)

$2.99

$

In Stock, Qty 17

0

67

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

68

Toro 32151-52

RING - INT 1.25 HSG

$4.49

$

In Stock, only 2 left!

0

69

Toro 32120-50

Pin-Spirol
(Superseded to 32120-38)

$

$

Not available

70

$

$

Not available

71

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

72

Toro 114821

WASHER-FRICTION

$

$

Not available

73

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

74

Toro 115677

BRACKET R

$

$

Not available

75

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

76

Toro 111430

ARM SHIFTER B

$

$

Not available

77

Toro 933273

SPIROL PIN 7/32X21/2

$2.49

$

Usually ships in 3-6 days

0

78

Toro 111432

SPRING COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

79

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

80

Toro 5666

BUSHING-NYLINER

$6.49

$

In Stock, Qty 10

0

81

Toro 119810

ROD-SHIFT LEVER

$

$

Not available

82

Toro 113025

POINTER

$4.49

$

Usually ships in 3-6 days

0

83

$27.99

$

Usually ships in 3-6 days

0

84

Toro 117326

SPRING

$

$

Not available

85

Toro 117325

BRACKET-SPRING

$

$

Not available

86

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

87

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0
