A2-12K501 (212-5) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) ENGINE, FUEL TANK & EXHAUST ASSEMBLY Parts Diagram

Lawn Tractor

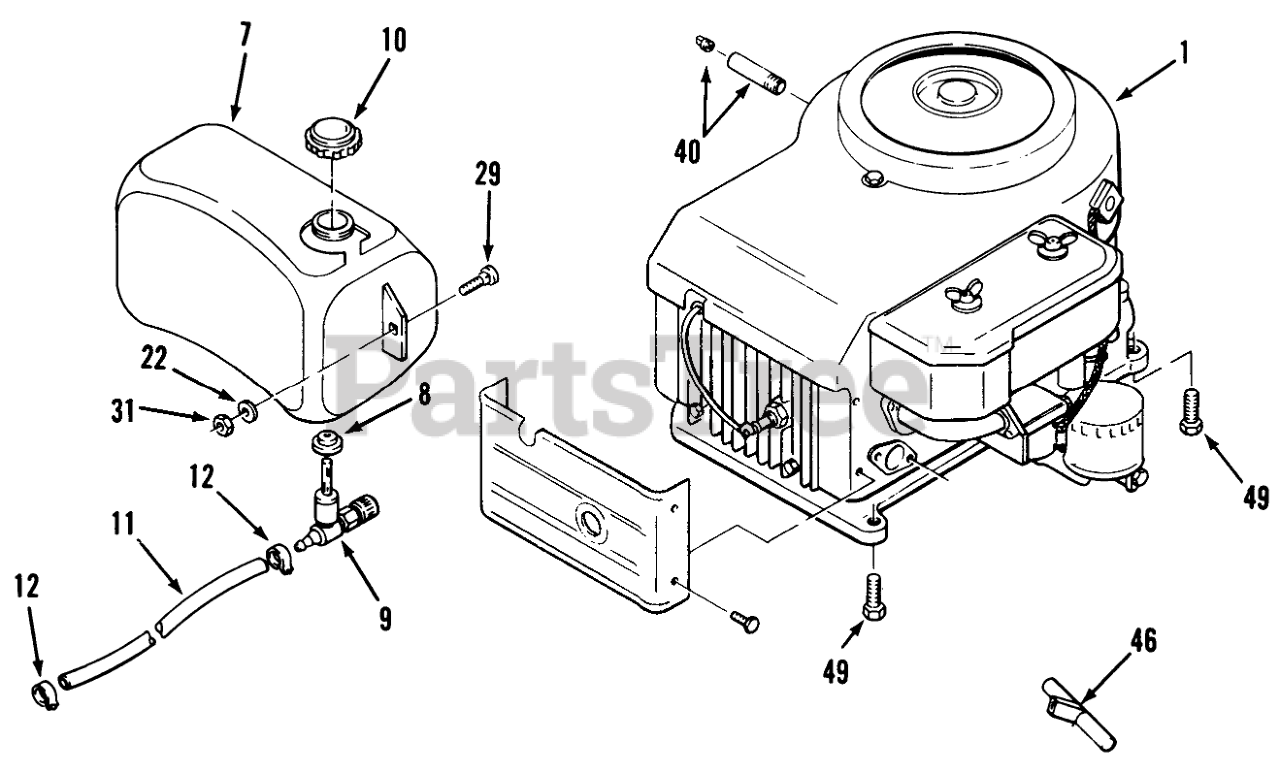

ENGINE, FUEL TANK & EXHAUST ASSEMBLY Parts Diagram

  • Title

1

Toro 117108

Engine-12HP Kawasaki (Model No. FB460V Type CS26)

$

$

Not available

5

Toro 115790

THROTTLE-CONTROL

$168.99

$

In Stock, only 1 left!

0

7

Toro 111472

Fuel Tank Assembly (Incl. Ref. #8 & 9)
(Superseded to 112153)

$

$

Not available

8

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 10

0

9

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

10

Toro 111474

CAP GAS

$28.99

$

In Stock, only 2 left!

0

11

Toro 117444

HOSE-FUEL LINE 17.62

$

$

Not available

12

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

27

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

28

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

29

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

31

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

40

Toro 114636

Pipe
(Superseded to 289-45)

$23.99

$

Usually ships in 3-6 days

0

46

Toro 107045

KNOB-CONTROL
(Superseded to 233-50)

$3.49

$

In Stock, only 1 left!

0

49

Toro 112147

Screw
(Superseded to 33114-025)

$1.99

$

In Stock, Qty 20+

0
