A2-12K501 (212-5) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) AIR FILTER AND CARBURETOR Parts Diagram

Lawn Tractor

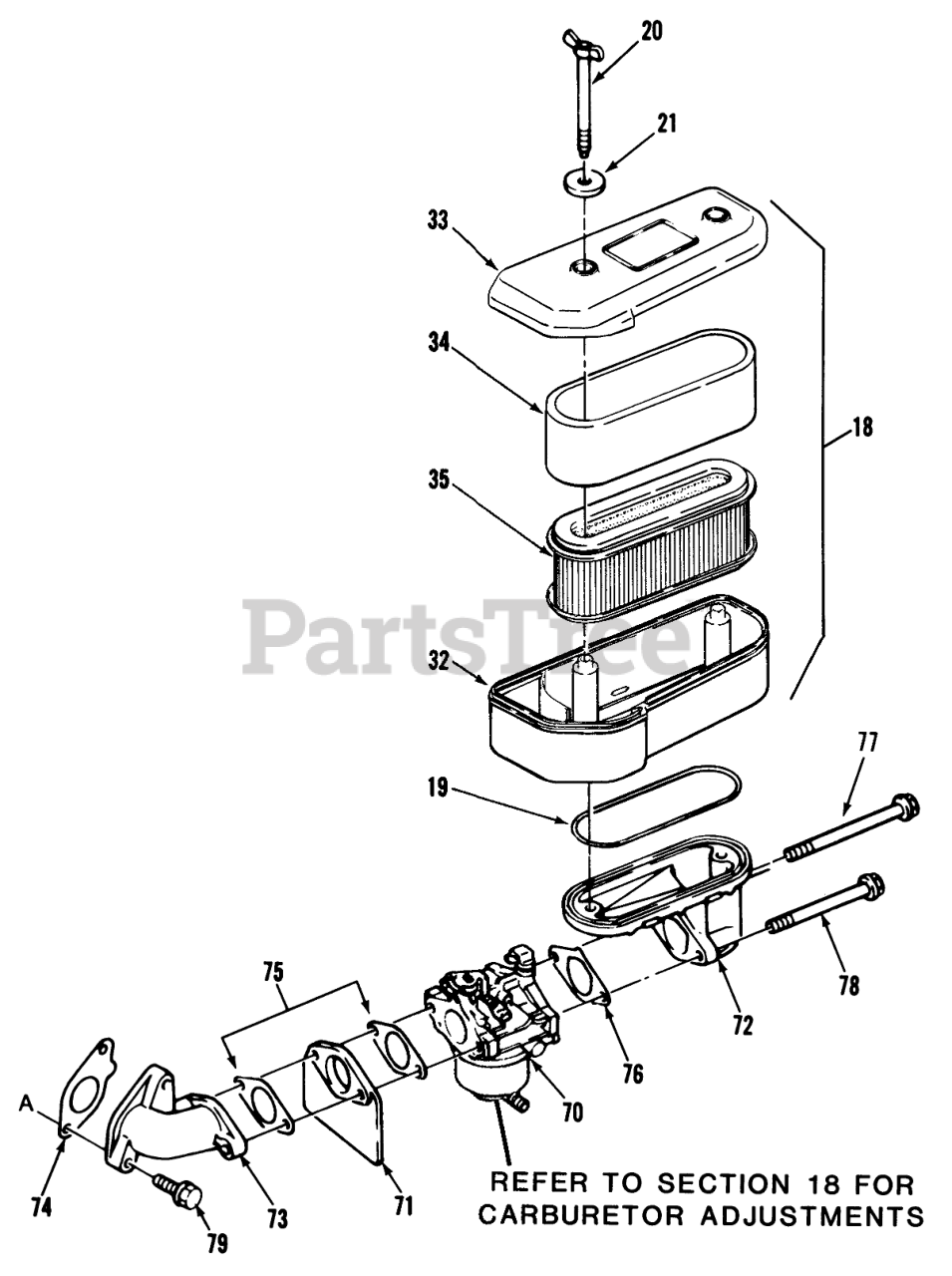

AIR FILTER AND CARBURETOR Parts Diagram

  • Title

18

Toro KW10013

Assembly-Filter, Air (Incl. Ref. #32-35)

$

$

Not available

19

Toro KW10012

GASKET

$

$

Not available

20

Toro KW10185

BOLT

$

$

Not available

21

Toro KW10200

WASHER

$

$

Not available

32

Toro KW10246

CASE-AIR FILTER

$

$

Not available

33

Toro KW10015

CAP-AIR FILTER

$

$

Not available

34

Toro KW10016

ELEMENT-AIR CLEANER

$15.99

$

Usually ships in 3-6 days

0

35

Toro KW10017

AIR CLEANER ELEMENT

$

$

Not available

70

Toro KW10758

CARBURETOR-ASS'Y

$

$

Not available

71

Toro KW10072

INSULATOR

$

$

Not available

72

Toro KW10070

MANIFOLD INTAKE

$

$

Not available

73

Toro KW10071

MANIFOLD INTAKE

$

$

Not available

74

Toro KW10007

GASKET

$

$

Not available

75

Toro KW10008

GASKET

$

$

Not available

76

Toro KW10009

GASKET

$

$

Not available

77

Toro KW10187

BOLT

$

$

Not available

78

Toro KW10186

BOLT

$

$

Not available

79

Toro KW10034

BOLT, FLANGED 8X25

$

$

Not available
