A2-083202 (LT-832) - Toro Lawn Tractor (1983) WHEELS AND TIRES Parts Diagram

Lawn Tractor

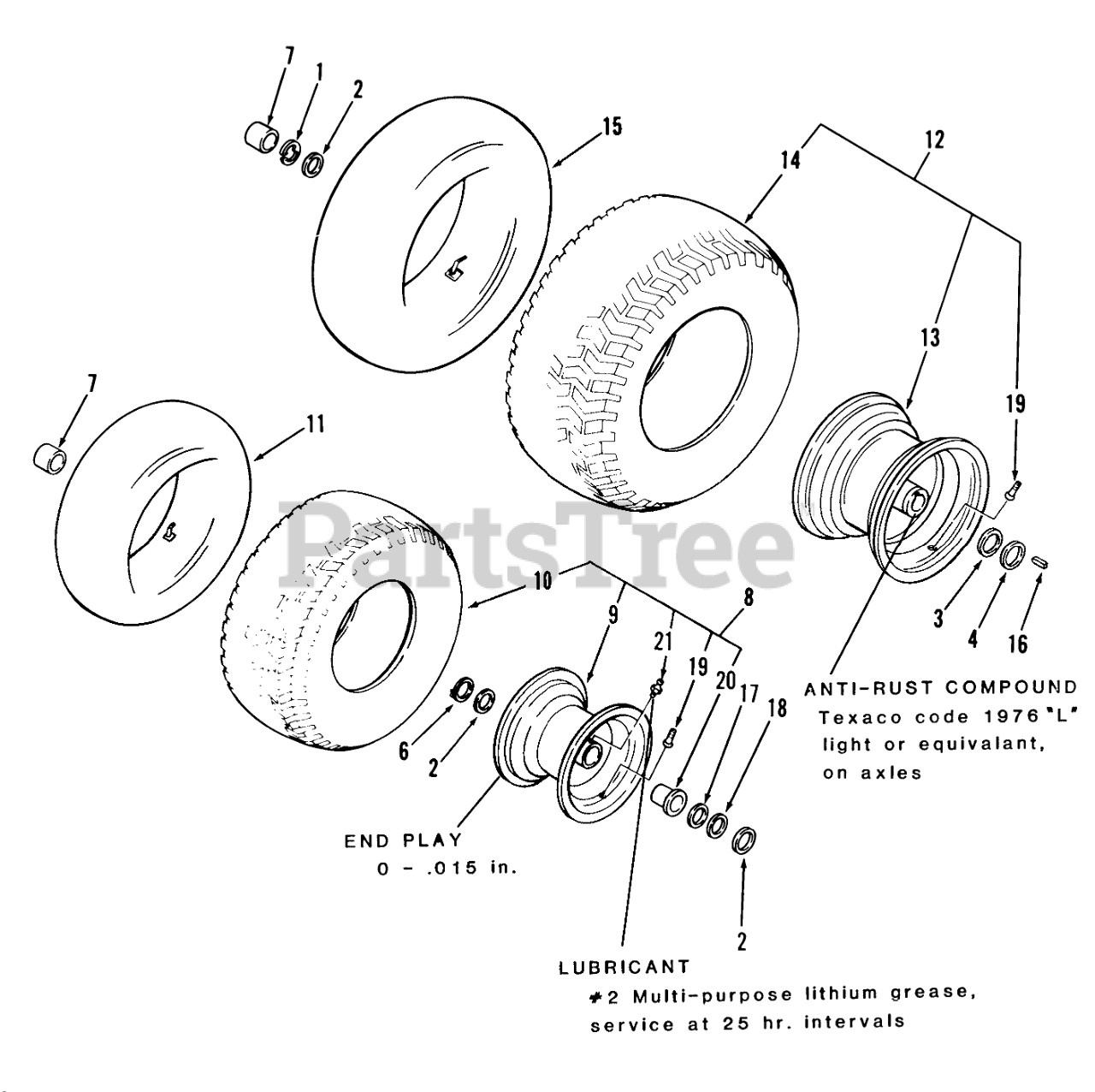

WHEELS AND TIRES Parts Diagram

  • Title
1

Toro 104636

E Ring
(Superseded to 32151-48)

$1.99

$

In Stock, Qty 14

0

2

Toro 109262

WASHER-FLAT

$4.49

$

In Stock, only 1 left!

0

3

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

4

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

6

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

7

Toro 109261

HUB CAP

$

$

Not available

8

Toro 109501

Assy-Wheel & Tire Front LT-832 Only

$

$

Not available

8

Toro 109517

Assy-Wheel & Tire Front 5-Speed Only

$

$

Not available

9

Toro 109502

Front Wheel LT-832 Only

$

$

Not available

9

Toro 109518

Front Wheel 5-Speed Only

$

$

Not available

10

Toro 109504

Tire-Front 13 X 5.00-6

$

$

Not available

10

Toro 109519

Front Tire 13 x 6.50-6-5-Speed Only
(Superseded to 104307)

$

$

Not available

11

Toro 100043

Front Tube-Service Only
(Superseded to 5712)

$

$

Not available

11

Toro 101779

Tube (Service Only)
(Superseded to 5712)

$

$

Not available

12

Toro 109537

Assy-Wheel & Tire-Rear LT-832 Only

$

$

Not available

12

Toro 109520

Assy-Wheel & Tire Rear LT-1137 Only

$

$

Not available

13

Toro 109538

Rear Wheel LT-832 Only
(Superseded to 110432)

$327.99

$

Usually ships in 3-6 days

0

13

Toro 109521

Rear Wheel LT-1137 Only
(Superseded to 110711)

$

$

Not available

14

Toro 8287

TIRE

$

$

Not available

14

Toro 105451

TIRE 18 X 9.50-8

$268.99

$

Usually ships in 3-6 days

0

15

Toro 8462

Rear Tube-Service Only
(Superseded to 106396)

$41.99

$

Usually ships in 3-6 days

0

15

Toro 106396

TUBE-TIRE

$41.99

$

Usually ships in 3-6 days

0

16

Toro 1120

SQ KEY

$3.49

$

Usually ships in 3-6 days

0

17

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

18

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

19

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

20

Toro 100166

FLANGE BEARING

$34.99

$

Usually ships in 3-6 days

0

21

Toro 1030

Zerk

$

$

Not available

21

Toro 109500

ZERK-GREASE

$3.99

$

Usually ships in 3-6 days

0
