A2-083201 (LT-832) - Toro Lawn Tractor (1982) FUEL AND EXHAUST SYSTEMS Parts Diagram

Lawn Tractor

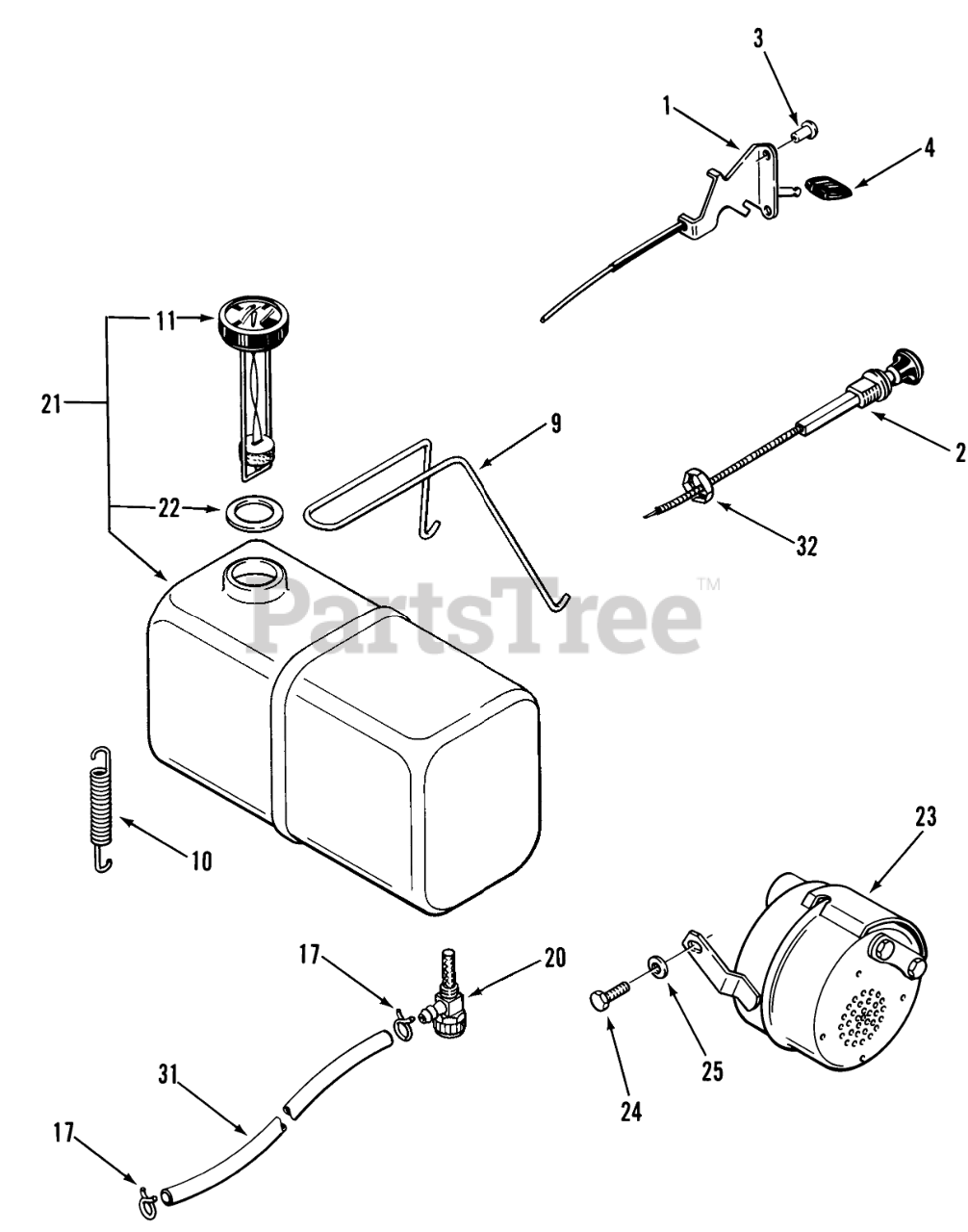

FUEL AND EXHAUST SYSTEMS Parts Diagram

  • Title

1

Toro 109533

CONTROL- THROTTLE

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832, LT-1032, LT-1637 & LT-1642 MODELS.

$

$

Not available

1

Toro 109532

Choke/Throttle Control LT-1100 Only

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832, LT-1032, LT-1637 & LT-1642 MODELS.

$

$

Not available

2

Toro 109483

CONTROL-CHOKE

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832, LT-1032, LT-1637 & LT-1642 MODELS.

$

$

Not available

3

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

4

Toro 108917

KNOB-THROTTLE

$3.49

$

In Stock, only 1 left!

0

9

Toro 109196

Hold Down Wire

$

$

Not available

10

Toro 107788

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

11

Toro 109482

Gasoline Cap
(Superseded to 108011)

$61.99

$

In Stock, only 1 left!

0

17

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

20

Toro 4941

FILTER & VALVE ASSY

$

$

Not available

21

Toro 109187

Fuel Tank Assy

$

$

Not available

22

Toro 108416

Seal (Service Only)

$

$

Not available

23

Toro 108614

ASSY-MUFFLER

$

$

Not available

24

Toro 908001

Bolt
(Superseded to 321-2)

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832, LT-1032, LT-1637 & LT-1642 MODELS.

$3.49

$

In Stock, only 3 left!

0

25

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832, LT-1032, LT-1637 & LT-1642 MODELS.

$0.99

$

In Stock, Qty 20+

0

31

Toro 102604

Skid Bracket
(Superseded to 100061)

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832, LT-1032, LT-1637 & LT-1642 MODELS.

$

$

Not available

31

Toro 109496

Fuel Hose 5 in. (12.7 cm) LT-1637, LT-1642 Only
(Superseded to 101338)

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832, LT-1032, LT-1637 & LT-1642 MODELS.

$

$

Not available

32

Toro 109530

NUT-HEX PALNUT

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832, LT-1032, LT-1637 & LT-1642 MODELS.

$1.49

$

In Stock, only 4 left!

0

31

Toro 109497

Fuel Hose 10.3 in. (26.2 cm) LT-1032 Only

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832, LT-1032, LT-1637 & LT-1642 MODELS.

$

$

Currently unavailable
