A2-083201 (LT-832) - Toro Lawn Tractor (1982) FRAME, SHEET METAL AND COVERS Parts Diagram

Lawn Tractor

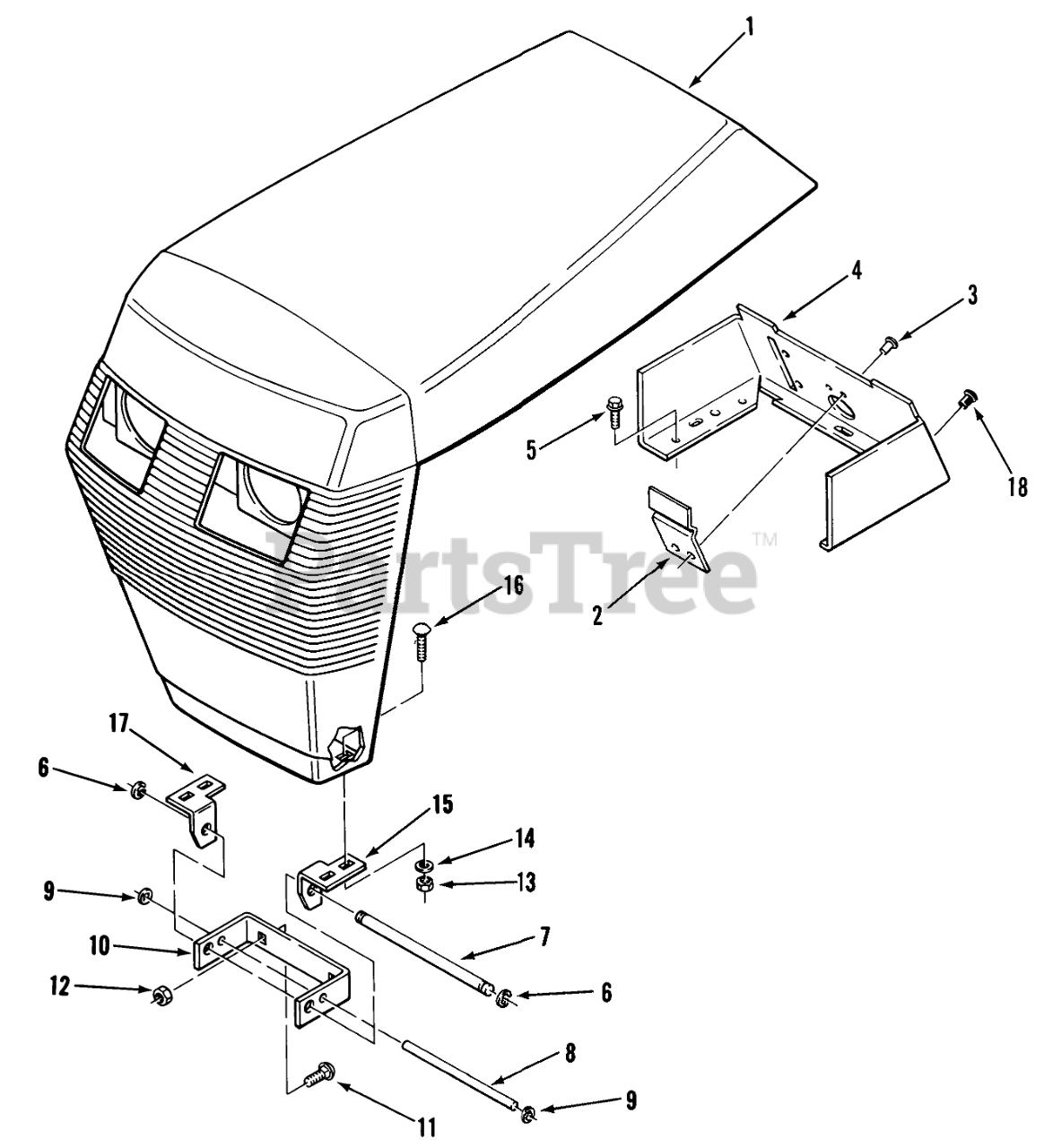

FRAME, SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 109515G

Hood LT-832, LT-1032, LT-1137 Only
(Superseded to 114219)

$

$

Not available

1

Toro 109516G

Hood LT-1637, LT-1642 Only

$

$

Not available

2

Toro 109181

Hood Latch

$

$

Not available

3

Toro 923784

RIVET
(Superseded to 3290-54)

$0.99

$

In Stock, only 2 left!

0

4

Toro 109147B

Console

$

$

Not available

5

Toro 926694

SCREW

$

$

Not available

6

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

7

Toro 108458

ROD-GRILL PIVOT

$

$

Not available

8

Toro 108243

ROD-HOOD STOP

$

$

Not available

9

Toro 5466

SPEED NUT

$

$

Not available

10

Toro 109194

Bracket Hood Pivot

$

$

Not available

11

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 5

0

12

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

13

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

14

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

15

Toro 109146

BRKT-GRILL PIVOT R (NS)
(Superseded to 109146-01)

$

$

Not available

16

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

17

Toro 109145

BRKT-GRILL PIVOT R
(Superseded to 109145-01)

$34.99

$

Usually ships in 3-6 days

0

18

Toro 938052

NYLON PLUG

$0.99

$

Usually ships in 3-6 days

0
