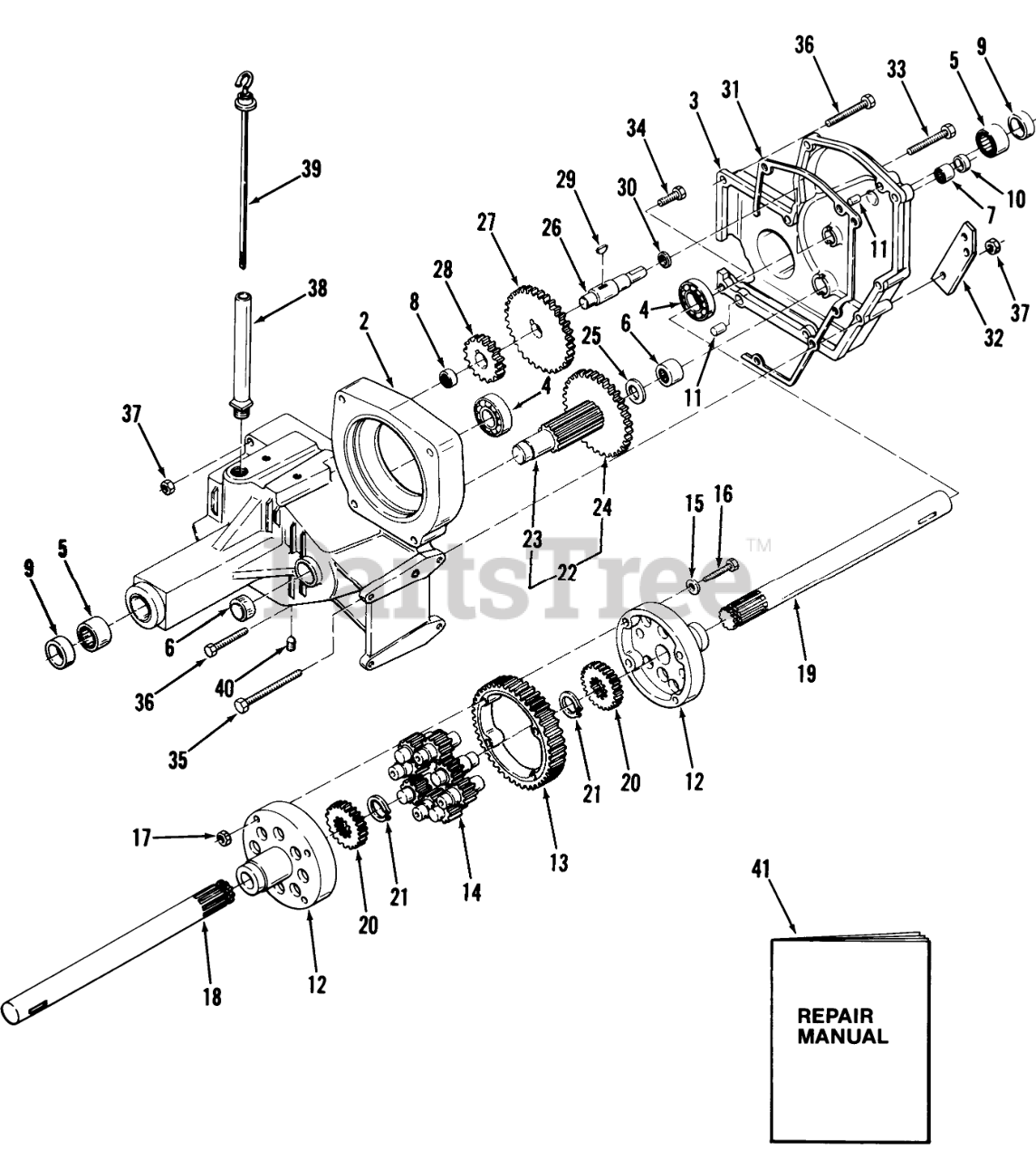

A1-184801 (GT-1848) - Toro Garden Tractor (1982) TRANSAXLE Parts Diagram

Garden Tractor

TRANSAXLE Parts Diagram

  • Title

Toro 108369

Transaxle Complete
(Superseded to 115174)

$

$

Not available

2

Toro 108310

TRANS CASE RH

$

$

Not available

3

Toro 108311

Case-Transaxle LH

$

$

Not available

4

Toro 1533

BALL BRG 1 1/2 I.D.

$

$

Not available

5

Toro 9416

BEARING

$81.99

$

Usually ships in 3-6 days

0

6

Toro 1532

BEARING-NEEDLE

$59.99

$

In Stock, only 4 left!

0

7

Toro 1538

NEEDLE BEARING

$46.99

$

Usually ships in 3-6 days

0

8

Toro 1518

BEARING-NEEDLE

$31.99

$

Usually ships in 3-6 days

0

9

Toro 6449

SEAL-OIL

$24.99

$

In Stock, only 1 left!

0

10

Toro 108357

Seal
(Superseded to 253-44)

$29.99

$

In Stock, only 1 left!

0

11

Toro 108363

PIN-LOCATING

$

$

Not available

12

Toro 105060

DIFFERENTIAL END CAP

$256.99

$

Usually ships in 3-6 days

0

13

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1209.99

$

Usually ships in 3-6 days

0

14

Toro 101623

GEAR-PINION, 11T

$116.99

$

Usually ships in 3-6 days

0

15

Toro 107374

WASHER

$0.99

$

In Stock, Qty 6

0

16

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, only 4 left!

0

17

$6.49

$

In Stock, only 2 left!

0

18

Toro 108362

AXLE-REAR RH

$

$

Not available

19

Toro 108361

AXLE-REAR LH

$

$

Not available

20

Toro 101889

GEAR-AXLE DIFFERENTIAL

$

$

Not available

21

Toro 105876

RING-SNAP

$5.99

$

In Stock, only 2 left!

0

22

Toro 102974

GEAR ASM

$

$

Not available

23

Toro 101625

PINION SHAFT

$

$

Not available

24

$

$

Not available

25

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

26

Toro 109370

SHAFT GEAR

$

$

Not available

27

Toro 108359

Gear 44 Tooth

$

$

Not available

28

Toro 108358

GEAR 22T

$

$

Not available

29

Toro 937099

Key
(Superseded to 937024)

$

$

Not available

30

Toro 7956

Race Thrust
(Superseded to 702982)

$9.99

$

In Stock, Qty 5

0

31

Toro 108312

GASKET-TRANSMISSION

$24.99

$

Usually ships in 3-6 days

0

32

Toro 109367

BRACKET-BRAKEB

$

$

Not available

33

Toro 908040

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 13

0

34

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

35

Toro 908143

H H C S
(Superseded to 323-39)

$11.99

$

In Stock, Qty 20+

0

36

Toro 908042

Screw-Hex. Hd.
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

37

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

38

Toro 106448

NIPPLE-TRANS FILL

$

$

Not available

39

Toro 106446

ASSY-DIPSTICK

$

$

Not available

40

Toro 943460

PLUG 1/4 PIPE ALLEN
(Superseded to 285-22)

$1.49

$

Usually ships in 3-6 days

0

41

Toro 810243R1

Repair Manual

$

$

Currently unavailable
