A1-184801 (GT-1848) - Toro Garden Tractor (1982) HITCHES Parts Diagram

Garden Tractor

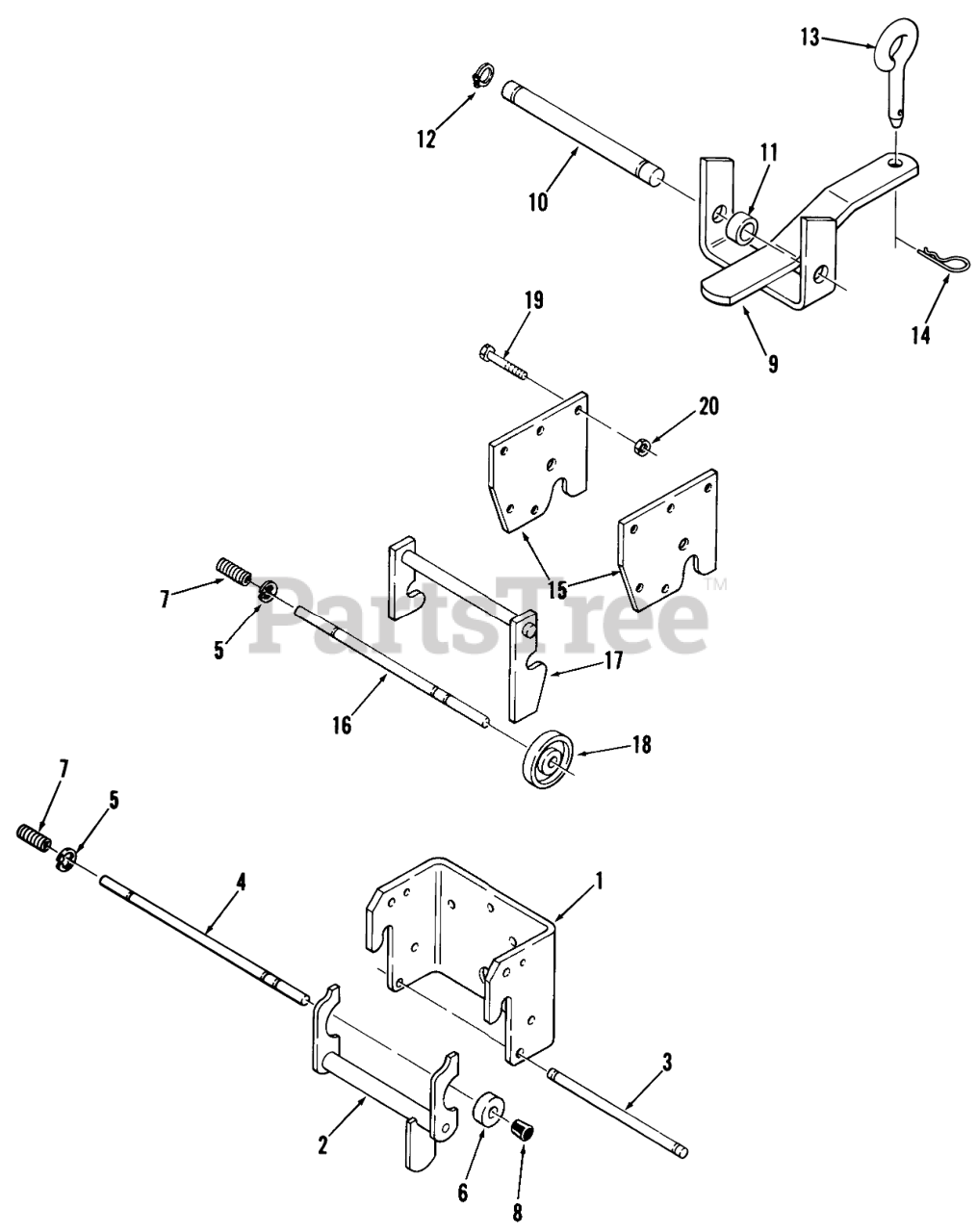

HITCHES Parts Diagram

  • Title

1

Toro 101711

Front Hitch
(Superseded to 101711-01)

$115.99

$

Usually ships in 3-6 days

0

2

Toro 105859

Assy-Latch
(Superseded to 93-1613)

$

$

Not available

3

Toro 101750

ROD-LATCH PIVOT

$49.99

$

Usually ships in 3-6 days

0

4

Toro 101751

ROD-LOCK

$27.99

$

Usually ships in 3-6 days

0

5

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

6

Toro 101707

LOCK

$

$

Not available

7

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

8

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

9

Toro 1644

Hitch
(Superseded to 98-8083-01)

$98.99

$

In Stock, only 1 left!

0

10

Toro 105269

PIN-STATIONARY HITCH

$

$

Not available

11

Toro 979120

Spacer
(Superseded to 9791204)

$

$

Not available

12

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

13

Toro 1813

Pin-Tool
(Superseded to 106634)

$

$

Not available

14

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

15

Toro 102644

Hitch Plate
(Superseded to 102644-01)

$32.99

$

Usually ships in 3-6 days

0

16

Toro 102672

Knob

$

$

Not available

17

Toro 102639

ASSY MID HITCH LA R
(Superseded to 102639-01)

$

$

Not available

18

Toro 101017

LOCK

$31.99

$

Usually ships in 3-6 days

0

19

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

20

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0
