A1-184801 (GT-1848) - Toro Garden Tractor (1982) 42 & 48 IN. (107 & 122 CM) MOWER SPINDLES Parts Diagram

Garden Tractor

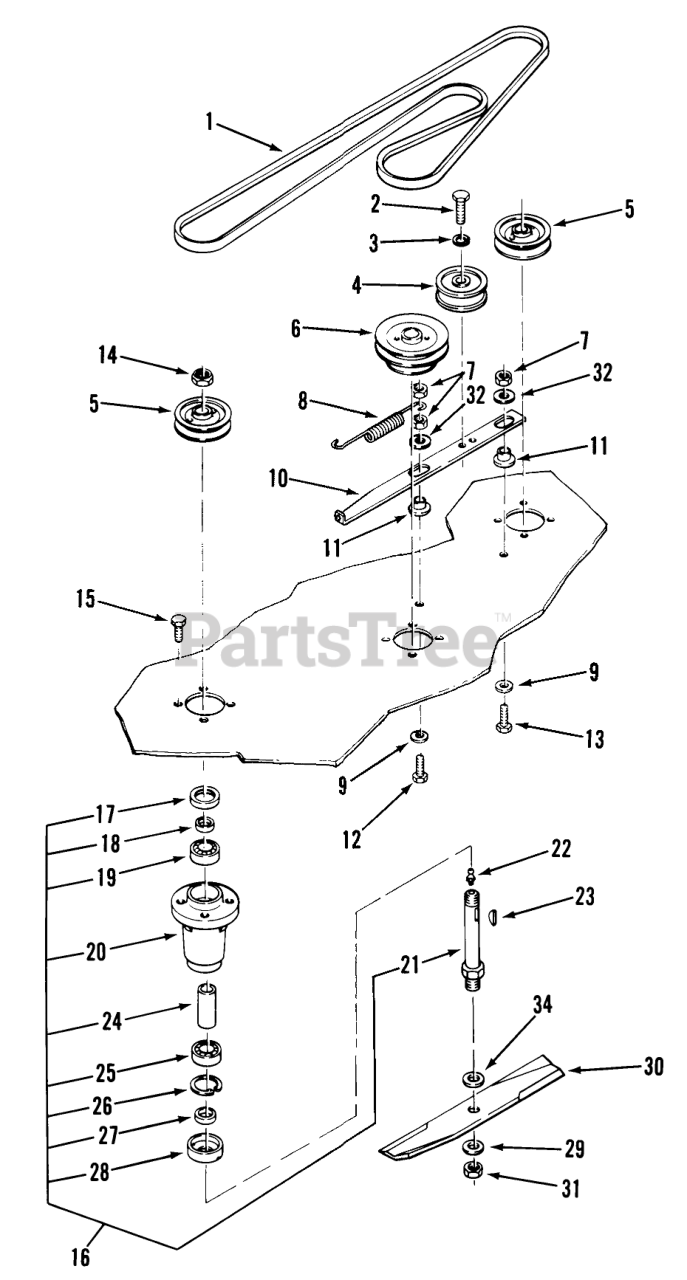

42 & 48 IN. (107 & 122 CM) MOWER SPINDLES Parts Diagram

  • Title

1

Toro 1594

V-BELT

$39.99

$

In Stock, only 1 left!

0

2

Toro 105865

BOLT HEX SPECIAL

$

$

Not available

3

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

4

Toro 106144

Idler Pulley
(Superseded to 93-1622)

$42.99

$

In Stock, only 2 left!

0

5

Toro 106074

PULLEY-BLADE DRIVE

$162.99

$

Usually ships in 3-6 days

0

6

Toro 106073

PULLEY-48 MOWER SPDL

$274.99

$

Usually ships in 3-6 days

0

7

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

8

Toro 100071

SPRING-EXTENSION

$11.99

$

Usually ships in 3-6 days

0

9

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

10

Toro 106120

BAR-IDLER SUPPORT

$78.99

$

In Stock, only 2 left!

0

11

Toro 107674

SPACER-BUSHING

$1.99

$

In Stock, Qty 17

0

12

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

13

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

14

Toro 915090

Nut
(Superseded to 32146-20)

$3.99

$

In Stock, Qty 6

0

15

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

16

Toro 108848

Spindle Assembly

$

$

Not available

17

Toro 106075

SEAL

$14.99

$

In Stock, Qty 6

0

18

Toro 106070

SPACER-SEAL

$19.99

$

Usually ships in 3-6 days

0

19

Toro 106085

BEARING-BALL

$21.99

$

Usually ships in 3-6 days

0

20

Toro 106063

HOUSING-SPINDLE

$

$

Not available

21

Toro 108849

7" X 3/4" SHAFT.JAK

$168.99

$

Usually ships in 3-6 days

0

22

Toro 1030

Zerk

$

$

Not available

23

Toro 937156

Hi-Pro Key 3/16 x 5/8
(Superseded to 937222)

$3.49

$

In Stock, Qty 14

0

24

Toro 106069

SPACER

$21.99

$

Usually ships in 3-6 days

0

25

Toro 106084

BEARING-BALL

$21.99

$

Usually ships in 3-6 days

0

26

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 12

0

27

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

28

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

29

Toro 920258

SpeciaI Washer
(Superseded to 9202584)

$7.49

$

In Stock, Qty 6

0

30

Toro 106637

BLADE KIT (3 PACK)

$101.99

$

In Stock, only 1 left!

0

31

Toro 915090

Nut
(Superseded to 32146-20)

$3.99

$

In Stock, Qty 6

0

32

Toro 107675

WASHER

$3.49

$

In Stock, Qty 18

0

34

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

1

Toro 6738

V BELT

$35.99

$

In Stock, only 1 left!

0

4

Toro 6719

Idler Pulley
(Superseded to 92-7101)

$34.99

$

In Stock, only 1 left!

0

5

Toro 106072

PULLEY-BLADE DRIVE

$82.99

$

In Stock, only 1 left!

0

6

Toro 106071

PULLEY-42 MOWER SPDL

$232.99

$

In Stock, only 1 left!

0

30

Toro 106636

14IN BLADE KIT

$95.99

$

In Stock, only 1 left!

0
