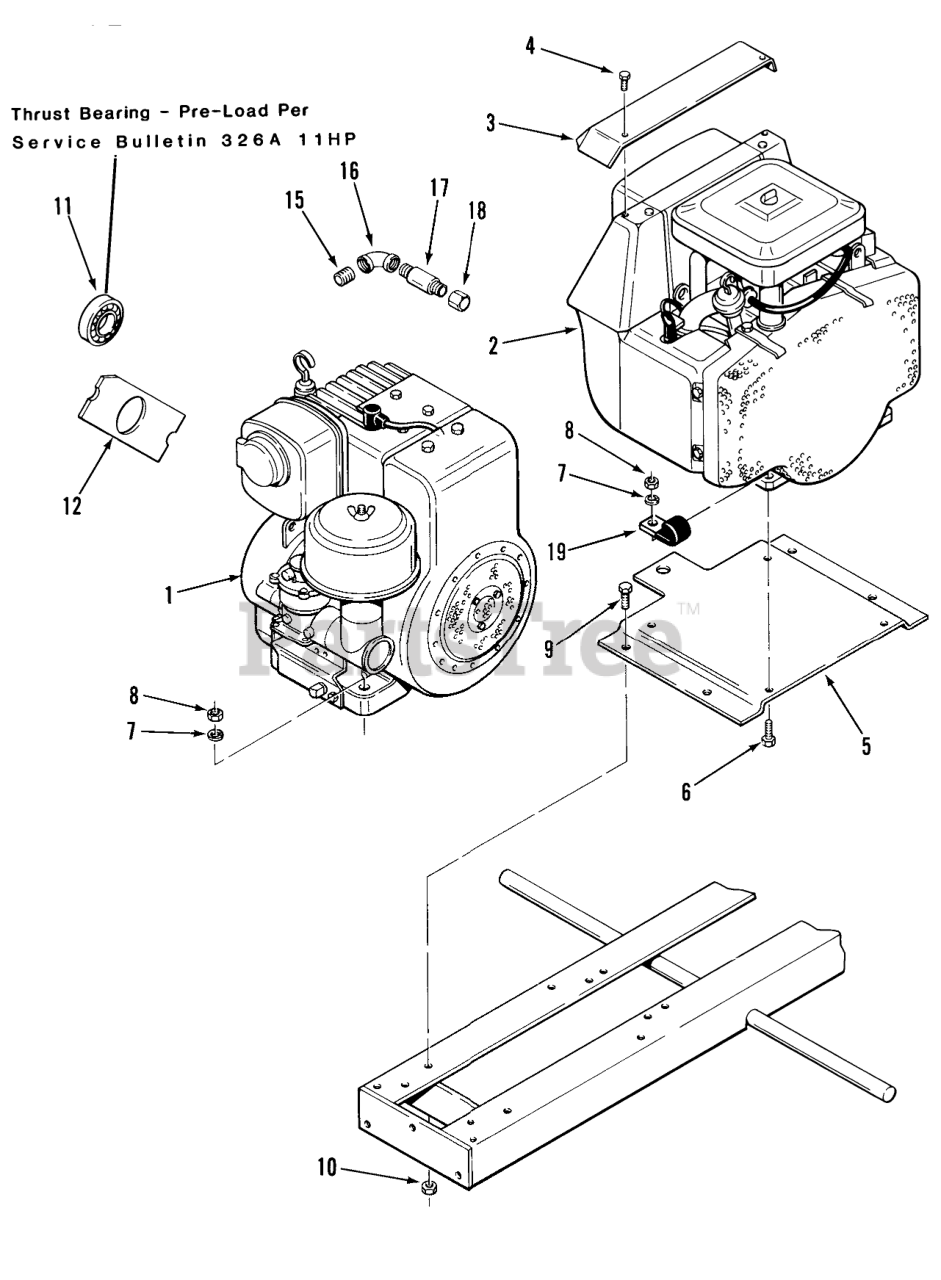

A1-16B801 (GT-1600) - Toro Garden Tractor (1984) ENGINES Parts Diagram

Garden Tractor

ENGINES Parts Diagram

  • Title
1

Toro 109505

Engine-11HP-B&S Model 252417, Type 0664-01

Note: Engines and Engine Parts are available through Manufacturer-s Distribution System, using the Model and Spec. Numbers Shown Above. WHEEL HORSE Part Numbers are Listed for Crosss Reference Purposes Only; Engines ans Engine Parts Are Not Available through

$

$

Currently unavailable

2

Toro 110194

Engine-16HP-B&S Model 402437, Type 0694-01 GT-1600

Note: Engines and Engine Parts are available through Manufacturer-s Distribution System, using the Model and Spec. Numbers Shown Above. WHEEL HORSE Part Numbers are Listed for Crosss Reference Purposes Only; Engines ans Engine Parts Are Not Available through

$

$

Currently unavailable

2

Toro 109507

Engine-18HP-B&S Model 422437, Type 0663-01 GT-1800

Note: Engines and Engine Parts are available through Manufacturer-s Distribution System, using the Model and Spec. Numbers Shown Above. WHEEL HORSE Part Numbers are Listed for Crosss Reference Purposes Only; Engines ans Engine Parts Are Not Available through

$

$

Currently unavailable

3

Toro 109555

SHIELD HEAT

$

$

Not available

4

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

5

Toro 110065

BASE ENGINE R

$

$

Not available

5

Toro 109534

BASE-ENGINE

$

$

Not available

6

Toro 908022

HHCS
(Superseded to 322-9)

$3.49

$

In Stock, Qty 20+

0

6

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

7

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

8

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

10

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

11

Toro 106499

BEARING-BALL

$

$

Not available

12

Toro 108074

PLATE-THRUST B
(Superseded to 108074-03)

$

$

Not available

15

Toro 943322

Nipple 3/8

$

$

Not available

16

Toro 943023

Elbow 3/8

$

$

Not available

17

Toro 943512

Nipple 3/8 X 7

$

$

Not available

18

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

19

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0
