A1-164201 (GT-1642) - Toro Garden Tractor (1982) THROTTLE, CHOKE AND FUEL SYSTEM Parts Diagram

Garden Tractor

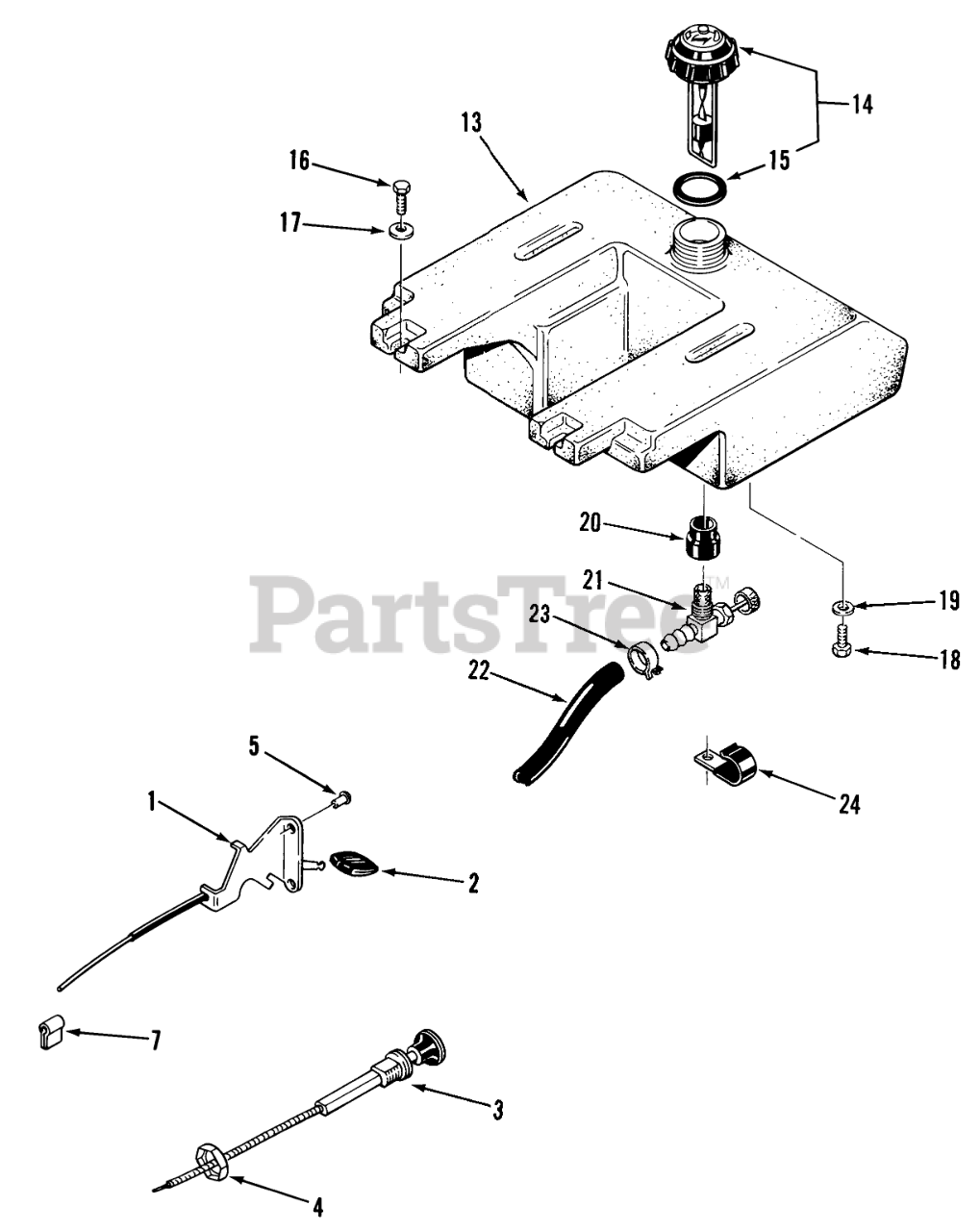

THROTTLE, CHOKE AND FUEL SYSTEM Parts Diagram

  • Title

1

Toro 109549

ASSY-THROTTLE CONTRO

$

$

Not available

2

Toro 108917

KNOB-THROTTLE

$3.49

$

In Stock, Qty 11

0

3

Toro 109484

CONTROL-CHOKE

$

$

Not available

4

Toro 109530

NUT-HEX PALNUT

$1.49

$

In Stock, only 4 left!

0

5

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

7

Toro 100729

THROTTLE CONTROL CLP

$6.99

$

Usually ships in 3-6 days

0

13

Toro 106234

TANK-FUEL

$456.99

$

Usually ships in 3-6 days

0

14

Toro 106945

ASSY-GAUGE CAP

$34.99

$

In Stock, Qty 15

0

15

Toro 106931

GASKET-GAS CAP

$

$

Not available

16

Toro 926696

Bolt
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0

17

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

18

Toro 908016

Bolt
(Superseded to 322-2)

$2.99

$

In Stock, Qty 17

0

19

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

20

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

21

Toro 104048

VALVE-FUEL

$36.99

$

In Stock, Qty 9

0

22

Toro 106445

Fuel Line
(Superseded to 110521)

$

$

Not available

23

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

1

Toro 109132

CONTROL-THROTTLE

$

$

Not available

22

Toro 108085

Fuel Line
(Superseded to 110521)

$

$

Not available

24

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0
