A1-114202 (GT-1142) - Toro Garden Tractor (1983) ENGINES Parts Diagram

Garden Tractor

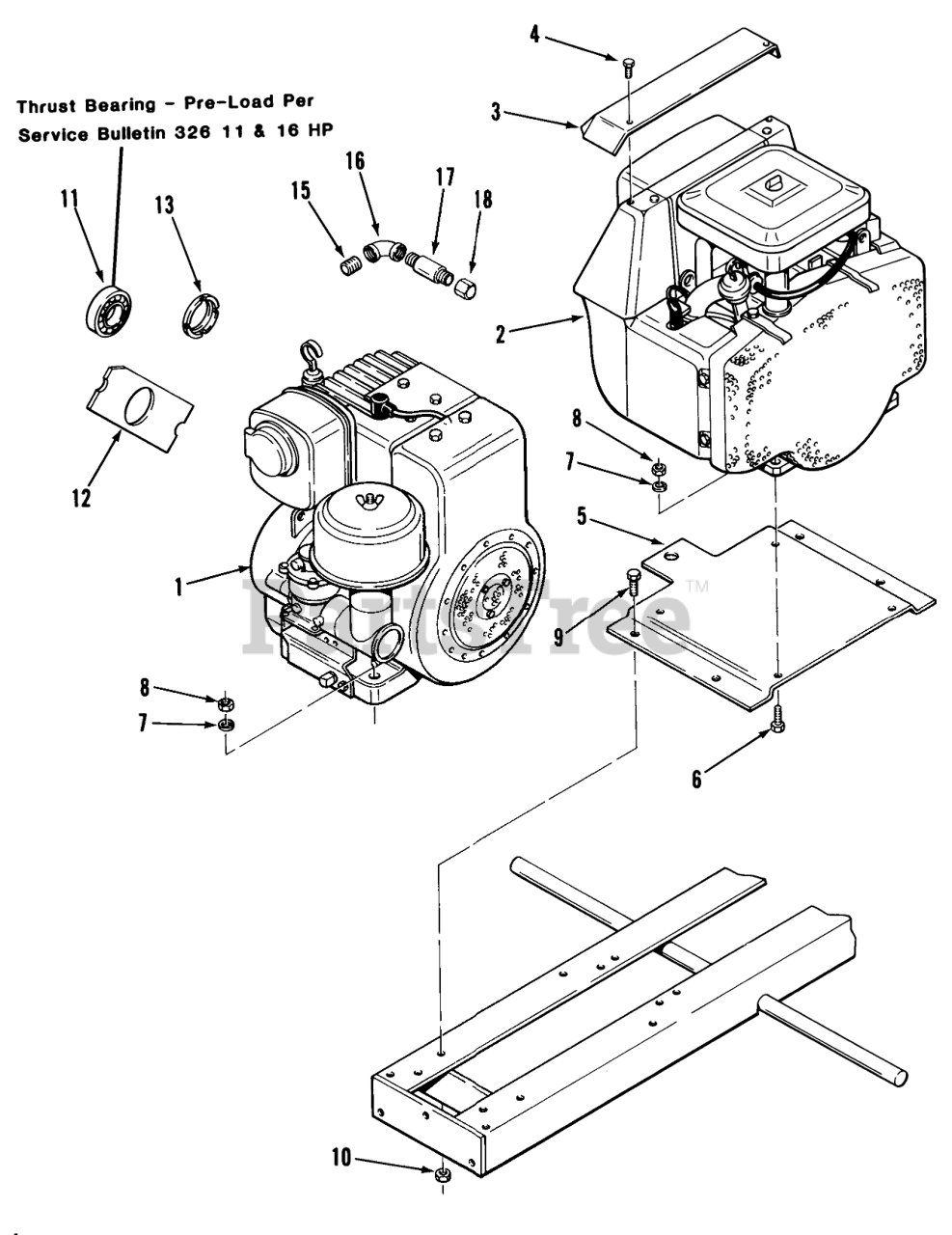

ENGINES Parts Diagram

  • Title
2

Toro 109507

Engine-18HP-B&S Model 422437, Type 0663-01 GT-1800

Note: Engines and Engine Parts are available through Manufacturer-s Distribution System, using the Model and Speck. Numbers Shown Above. WHEEL HORSE Part Numbers are Listed for Cross Reference Purposes Only; Engines and Engine Parts Are Not Available through

$

$

Currently unavailable

3

Toro 109555

SHIELD HEAT

$

$

Not available

4

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

5

Toro 109534

BASE-ENGINE

$

$

Not available

6

Toro 908022

HHCS
(Superseded to 322-9)

$3.49

$

In Stock, Qty 20+

0

7

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

8

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

10

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

15

Toro 943322

Nipple 3/8

$

$

Not available

16

Toro 943023

Elbow 3/8

$

$

Not available

17

Toro 943512

Nipple 3/8 X 7

$

$

Not available

18

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

1

Toro 109505

Engine-11HP-B&S Model 252417, Type 0664-01

Note: Engines and Engine Parts are available through Manufacturer-s Distribution System, using the Model and Speck. Numbers Shown Above. WHEEL HORSE Part Numbers are Listed for Cross Reference Purposes Only; Engines and Engine Parts Are Not Available through

$

$

Currently unavailable

2

Toro 109506

Engine-16HP-B&S Model 402417, Type 0665-01 GT-1642

Note: Engines and Engine Parts are available through Manufacturer-s Distribution System, using the Model and Speck. Numbers Shown Above. WHEEL HORSE Part Numbers are Listed for Cross Reference Purposes Only; Engines and Engine Parts Are Not Available through

$

$

Currently unavailable

5

Toro 110065

BASE ENGINE R

$

$

Not available

11

Toro 106499

BEARING-BALL

$

$

Not available

12

Toro 108074

PLATE-THRUST B
(Superseded to 108074-03)

$

$

Not available

13

Toro 106498

THRUST WASHER

$130.99

$

Usually ships in 3-6 days

0
