A 4000 - Swisher Blower Carburetor Parts Diagram

Blower

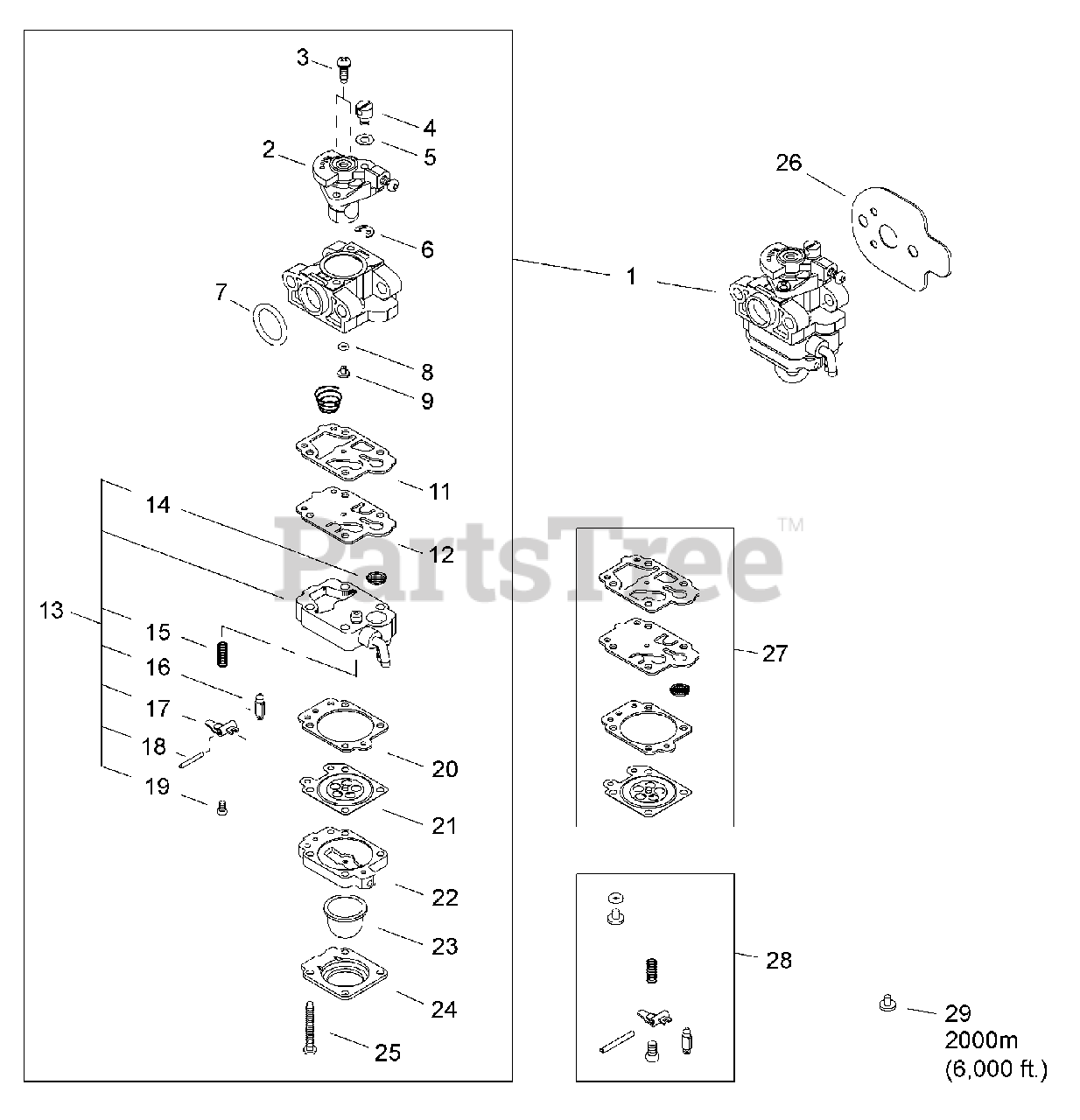

Carburetor Parts Diagram

  • Title

1

Echo 68906-81010

CARBURETOR
(Superseded to A021001970)

$99.99

$

Usually ships in 2-4 days

0

2

Echo 62907-81321

THROTTLE VALVE ASSY
(Superseded to P003004630)

$36.99

$

Usually ships in 2-4 days

0

3

Echo 70064-81290

SCREW
(Superseded to 12311444330)

$0.99

$

Usually ships in 2-4 days

0

4

Echo 72933-81450

SWIVEL
(Superseded to 12317245130)

$1.99

$

Usually ships in 2-4 days

0

5

Echo 20089-81185

WASHER
(Superseded to 12314954230)

$0.99

$

In Stock, only 1 left!

0

6

Echo 20036-81195

RING, RETAINING
(Superseded to 12317307930)

$1.49

$

In Stock, only 1 left!

0

7

Echo 20016-81250

O-RING - 15
(Superseded to 90072000015)

$1.99

$

In Stock, Qty 20+

0

8

Echo 70097-81220

O-RING
(Superseded to 12318340630)

$1.99

$

In Stock, Qty 5

0

9

Echo 70064-81230

JET, MAIN - 1000M #40
(Superseded to 12318411810)

$7.49

$

Usually ships in 2-4 days

0

11

Echo 70097-81310

GASKET, PUMP
(Superseded to 12312540630)

$4.99

$

In Stock, only 1 left!

0

12

Echo 70097-81320

DIAPHRAGM, PUMP
(Superseded to 12311240630)

$12.99

$

In Stock, only 1 left!

0

13

Echo 68906-81320

PUMP BODY ASSY
(Superseded to Discontinued)

$

$

Not available

14

Echo 70030-81380

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 19

0

15

Echo 72933-81270

SPRING, METERING LEVER
(Superseded to 12312205560)

$3.99

$

Usually ships in 2-4 days

0

16

Echo 20036-81440

VALVE, INLET NEEDLE
(Superseded to 12313719830)

$18.99

$

Usually ships in 2-4 days

0

17

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

18

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

19

Echo 20016-81450

SCREW, METERING LEVER PIN
(Superseded to 12313905560)

$0.99

$

Usually ships in 2-4 days

0

20

Echo 20016-81280

GASKET, METERING
(Superseded to 12314005560)

$3.99

$

In Stock, only 2 left!

0

21

Echo 37145-81320

DIAPHRAGM, METERING
(Superseded to P003001850)

$7.99

$

In Stock, only 1 left!

0

22

Echo 20016-81420

BASE, PURGE
(Superseded to 12318005560)

$7.49

$

In Stock, only 1 left!

0

23

Echo 20036-81670

BULB, PURGE
(Superseded to 12318140630)

$5.49

$

In Stock, Qty 20+

0

24

Echo 20016-81510

RETAINER, PURGE BULB
(Superseded to 12314205560)

$4.49

$

In Stock, Qty 20+

0

25

Echo 20016-81140

SCREW, PUMP COVER
(Superseded to 12311005560)

$2.99

$

In Stock, Qty 20+

0

26

Echo 62907-81210

GASKET, INTAKE
(Superseded to V103000570)

$1.99

$

In Stock, only 3 left!

0

27

Echo 68902-98330

DIAPHRAGM/GASKET KIT

$

$

Currently unavailable

28

Echo 68906-98320

INLET NEEDLE VALVE KIT

$

$

Currently unavailable

29

Echo 68126-98330

MAIN JET - 2000M #38
(Superseded to Discontinued)

Note: ALTERNATE MAIN JETS FOR ALTITUDE SHOWN

$

$

Not available
