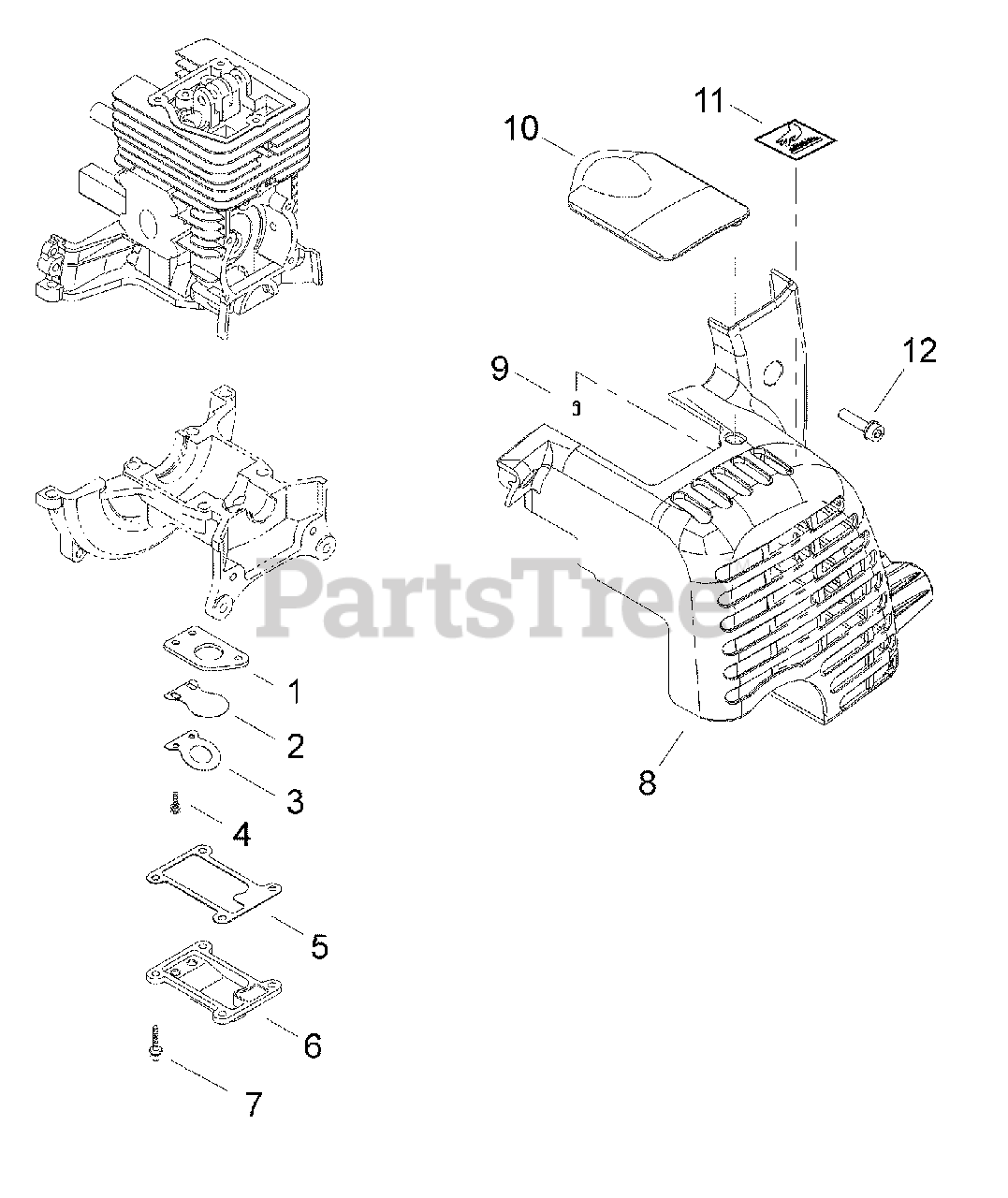

A 3000 - Swisher Blower Engine Cover, Reed Valve Parts Diagram

Blower

Engine Cover, Reed Valve Parts Diagram

  • Title

1

Echo 62901-21320

PLATE, REED BACKING
(Superseded to A200000750)

$11.99

$

Usually ships in 2-4 days

0

2

Echo 72320-83121

VALVE, REED
(Superseded to A211000030)

$5.49

$

Usually ships in 2-4 days

0

3

Echo 72320-83132

STOP, REED VALVE
(Superseded to A212000040)

$3.49

$

Usually ships in 2-4 days

0

4

Echo 01211-03100

SCREW - 3X10
(Superseded to 9134103010)

$0.99

$

Usually ships in 2-4 days

0

5

Echo 62901-21130

GASKET, REED VALVE
(Superseded to V109000100)

$1.99

$

In Stock, Qty 6

0

6

Echo 62901-21120

COVER, REED VALVE
(Superseded to A123000000)

$5.99

$

Usually ships in 2-4 days

0

7

Echo 11022-04120

SCREW - 4X12
(Superseded to V202000340)

$0.99

$

Usually ships in 2-4 days

0

8

Echo 68917-31110

COVER, ENGINE
(Superseded to A190001021)

$26.99

$

Usually ships in 2-4 days

0

9

Echo 02427-40085

PIN - 4X8
(Superseded to 90034240008)

$

$

Not available

10

Echo 68900-31310

COVER, SPARK PLUG
(Superseded to A429000080)

$7.49

$

In Stock, only 2 left!

0

11

Echo 19402-00205

LABEL - CAUTION
(Superseded to X505002780)

$1.99

$

In Stock, Qty 20+

0

12

Echo 70140-31480

BOLT - 5X20
(Superseded to V203000450)

$1.99

$

In Stock, Qty 5

0
