A 2701 - Briggs & Stratton Pressure Washer Pumps Pump #B2327 (3500PSI) 4.0GPM Parts Diagram

Pressure Washer Pumps

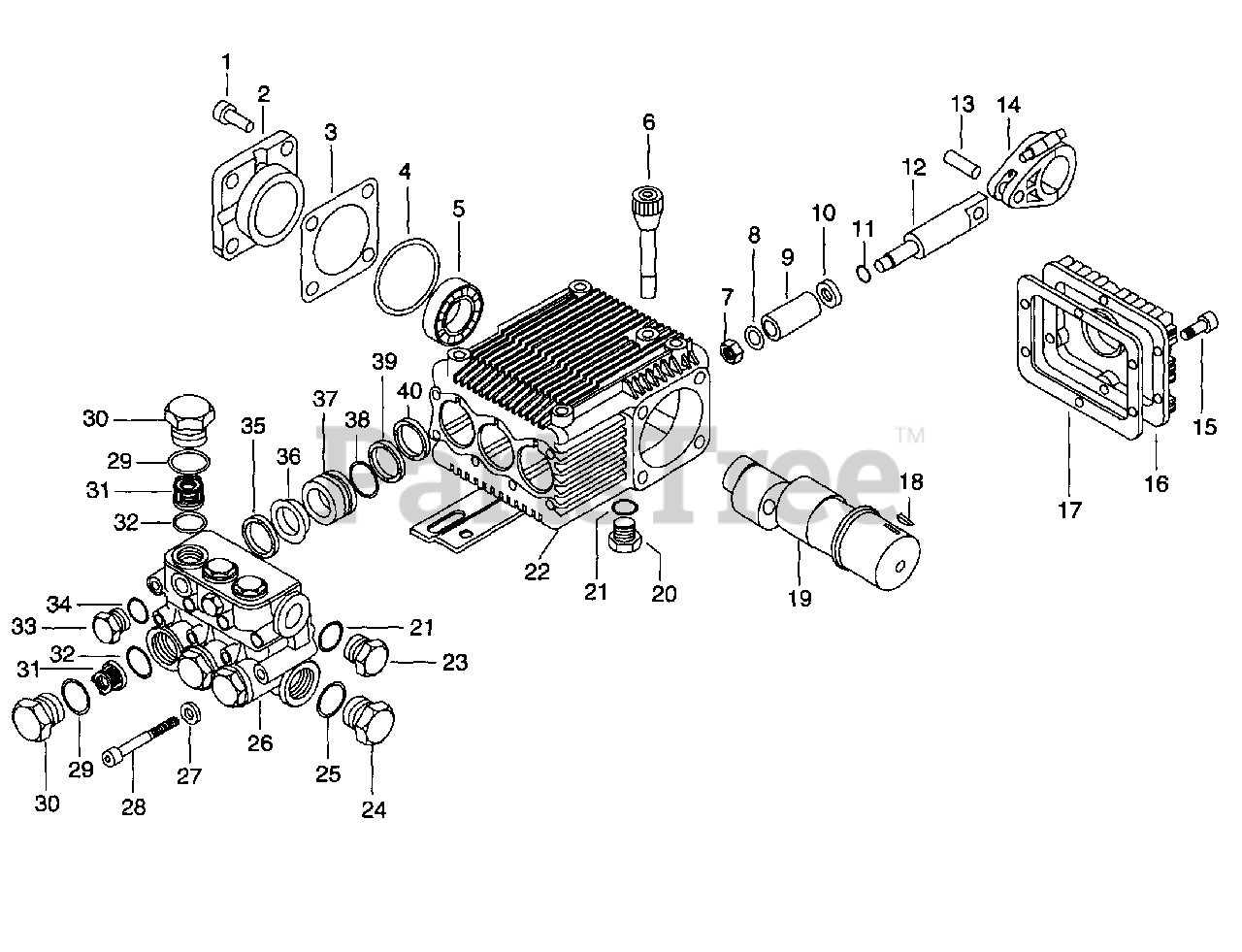

Pump #B2327 (3500PSI) 4.0GPM Parts Diagram

  • Title
1

Briggs & Stratton 115B2327

Screw
(Superseded to 115B2327GS)

$87.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 113B2327

Closed Bearing Support
(Superseded to 113B2327GS)

$79.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 132B2327

Shim
(Superseded to 132B2327GS)

$15.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 114B2327

O-Ring
(Superseded to 10887628PGS)

$5.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 115B2327

Bearing
(Superseded to 115B2327GS)

$87.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 11287628P

Oil Cap
(Superseded to 11287628PGS)

$28.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 118B2327

Nut
(Superseded to 118B2327GS)

$8.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 119B2327

Washer
(Superseded to 119B2327GS)

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 120B2327

Ceramic Piston
(Superseded to 120B2327GS)

$131.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 121B2327

Spacer
(Superseded to 121B2327GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 11893360P

O-Ring
(Superseded to 11893360PGS)

$4.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 123B2327

Guiding Piston
(Superseded to 123B2327GS)

$142.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 124B2327

Piston Pin
(Superseded to 124B2327GS)

$136.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 125B2327

Bronze Connecting Rod
(Superseded to 125B2327GS)

$278.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 128B2327

Screw
(Superseded to 128B2327GS)

$1.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 127B2327

Complete Cover
(Superseded to 127B2327GS)

$107.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 126B2327

Gasket
(Superseded to 126B2327GS)

$17.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 130B2327

Key
(Superseded to 130B2327GS)

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 129B2327

Crankshaft
(Superseded to 129B2327GS)

$726.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 10487627P

Plug (87628?)
(Superseded to 10487627PGS)

$14.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 10887627P

O-Ring
(Superseded to 134B2327GS)

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 116B2327

Pump Housing
(Superseded to 116B2327GS)

$717.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 136B2327

Plug
(Superseded to 136B2327GS)

$25.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 138B2327

Plug
(Superseded to 138B2327GS)

$35.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 11787822P

O-Ring
(Superseded to 137B2327GS)

$5.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 139B2327

Pump Head
(Superseded to 139B2327GS)

$683.99

$

Usually ships in 2-12 days

0

27

Washer

$

$

Not available

28

Briggs & Stratton 140B2327

Screw
(Superseded to 140B2327GS)

$6.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 10187822P

O-ring
(Superseded to 100B2327GS)

$5.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 101B2327

Plug
(Superseded to 101B2327GS)

$70.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 102B2327

Complete Valve
(Superseded to 102B2327GS)

$27.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 10387822P

O-Ring
(Superseded to 10387822PGS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 104B2327

Plug
(Superseded to 104B2327GS)

$24.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 11187627P

O-Ring
(Superseded to 194434GS)

$4.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 106B2327

Support Ring
(Superseded to 106B2327GS)

$19.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 107B2327

Gasket
(Superseded to 107B2327GS)

$77.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 108B2327

Piston Guide
(Superseded to 108B2327GS)

$48.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 109B2327

O-Ring
(Superseded to 109B2327GS)

$5.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 110B2327

Gasket
(Superseded to 110B2327GS)

$47.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 111B2327

Seal
(Superseded to 111B2327GS)

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 159B2327

Washer
(Superseded to 159B2327GS)

Note: (Not Shown)

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 11587627P

Ring
(Superseded to 11587627PGS)

Note: (Not Shown)

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 200B2327

Valve Kit
(Superseded to 200B2327GS)

Note: Includes item no.(s) 31, 32

$192.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 202B2327

Piston Kit
(Superseded to 202B2327GS)

Note: Includes item No. 9

$595.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 203B2327

Water Seal kit
(Superseded to 203B2327GS)

Note: Includes item No.(s) 36, 38, 39

$214.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 204B2327

Support Ring Kit
(Superseded to 204B2327GS)

Note: Includes item No. 35

$45.99

$

Usually ships in 2-12 days

0

$

$

Not available
