A 2701 - Briggs & Stratton Pressure Washer Pumps Pump #B2126 (3000PSI) 3.0GPM Parts Diagram

Pressure Washer Pumps

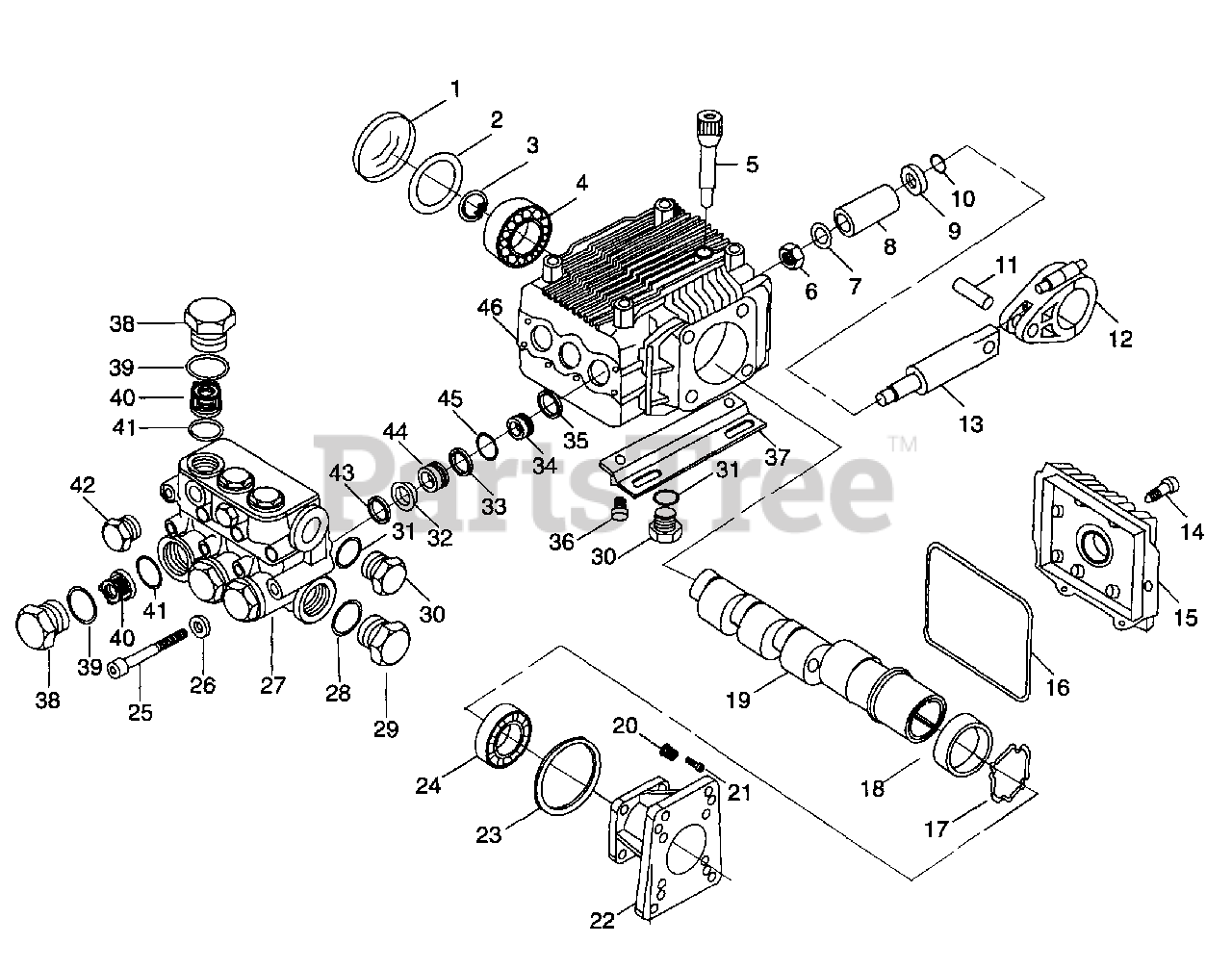

Pump #B2126 (3000PSI) 3.0GPM Parts Diagram

  • Title
1

Briggs & Stratton 110B2126

Cap
(Superseded to 110B2126GS)

$19.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 10887628P

Circlip
(Superseded to 10887628PGS)

$5.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 112B2126

Snap Ring
(Superseded to 112B2126GS)

$2.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 113B2126

Bearing
(Superseded to 113B2126GS)

$104.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 11287628P

Oil Cap
(Superseded to 11287628PGS)

$28.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 11187822P

Nut
(Superseded to 11187822PGS)

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 11187822P

Piston Washer
(Superseded to 11187822PGS)

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 123B2126

Piston
(Superseded to 123B2126GS)

$140.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 11687628P

Spacer Disc
(Superseded to 11687628PGS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 11587628P

O-Ring
(Superseded to 192914GS)

$24.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 115B2126

Piston Pin
(Superseded to 115B2126GS)

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 119B2126

Con Rod
(Superseded to 119B2126GS)

$56.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 120B2126

Guiding Piston
(Superseded to 120B2126GS)

$102.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 117B2126

Screw
(Superseded to 117B2126GS)

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 118B2126

Complete Rear Cover
(Superseded to 118B2126GS)

$83.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 116B2126

O-Ring
(Superseded to 116B2126GS)

$6.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 12687628P

Snap Ring
(Superseded to 12687628PGS)

$24.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 12587628P

Bearing
(Superseded to 12587628PGS)

$82.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 149B2126

Hollow Shaft
(Superseded to 149B2126GS)

$633.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 152B2126

Grub Screw
(Superseded to 152B2126GS)

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 155B2327

Screw
(Superseded to 155B2327GS)

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 150B2126

Gas Engine Flange
(Superseded to 150B2126GS)

$182.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 151B2126

Bushing
(Superseded to 151B2126GS)

$39.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 12187822P

Seal
(Superseded to 12187822PGS)

$63.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 10087822P

Screw
(Superseded to 10087822PGS)

$6.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 137B2126

Washer
(Superseded to 137B2126GS)

$3.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 136B2126

Head
(Superseded to 136B2126GS)

$530.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 11787822P

O-Ring
(Superseded to 137B2327GS)

$5.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 10387628P

Plug
(Superseded to 10387628PGS)

$18.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 10487628P

Plug
(Superseded to 10487628PGS)

$11.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 10387628P

O-Ring
(Superseded to 10387628PGS)

$18.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 10587822P

Gasket
(Superseded to 10587822PGS)

$55.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 10393360P

Gasket
(Superseded to 10393360PGS)

$13.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 131B2126

Rear Piston Guide
(Superseded to 131B2126GS)

$23.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 16593360P

Seal
(Superseded to 16593360PGS)

$20.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 129B2126

Screw
(Superseded to 129B2126GS)

$26.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 126B2126

Foot
(Superseded to 126B2126GS)

$5.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 102B2126

Plug
(Superseded to 190641GS)

$31.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 10187822P

O-Ring
(Superseded to 100B2327GS)

$5.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 10287822P

Complete Valve
(Superseded to 10287822PGS)

$21.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 10387822P

O-Ring
(Superseded to 10387822PGS)

$4.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 11193360P

Plug
(Superseded to 11193360PGS)

$9.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 106B2126

Support Ring
(Superseded to 106B2126GS)

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 108B2126

Piston Guide
(Superseded to 108B2126GS)

$34.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 10493360P

O-Ring
(Superseded to 10493360PGS)

$4.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 109B2126

Pump Body
(Superseded to 109B2126GS)

$

$

Not available

Briggs & Stratton 50087628P

Valve Kit
(Superseded to 193955GS)

Note: Includes item No.(s) 40, 41

$159.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201B2126

Piston Kit
(Superseded to 201-B2126GS)

Note: Includes item No. 8

$421.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 202B2126

Oil Seal Kit
(Superseded to 202-B2126GS)

Note: Includes item no.(s) 1, 16, 35

$78.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 203B2126

Water Seal Kit
(Superseded to 203-B2126GS)

Note: Includes item No.(s) 32, 45

$201.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 204B2126

Support Ring Kit
(Superseded to 204-B2126GS)

Note: Includes item no. 43

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 205B2126

Pump Head Kit
(Superseded to 205B2126GS)

$681.99

$

Usually ships in 2-12 days

0
