A 2701 - Briggs & Stratton Pressure Washer Pumps Pump #B1410 (3200PSI) 4.0GPM Parts Diagram

Pressure Washer Pumps

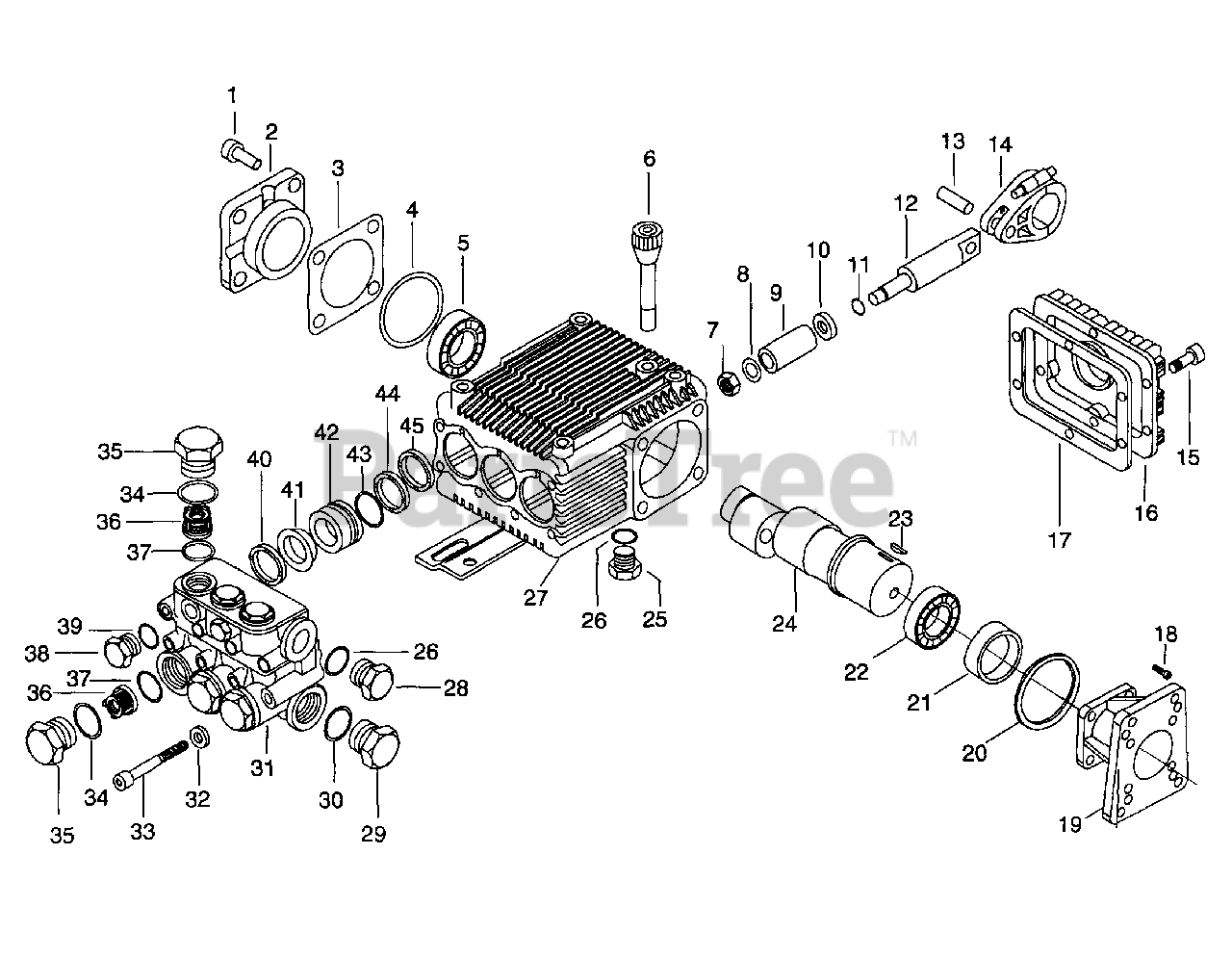

Pump #B1410 (3200PSI) 4.0GPM Parts Diagram

  • Title

1

Briggs & Stratton 112B1410

Screw

$

$

Currently unavailable

2

Briggs & Stratton 113B2327

Bearing Support
(Superseded to 113B2327GS)

$79.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 132B2327

Shim
(Superseded to 132B2327GS)

$15.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 114B1410

O-Ring

$

$

Currently unavailable

5

Briggs & Stratton 115B2327

Bearing
(Superseded to 115B2327GS)

$87.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 117B2327

Oil Cap

$

$

Currently unavailable

7

Briggs & Stratton 118B2327

Nut
(Superseded to 118B2327GS)

$8.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 119B2327

Washer
(Superseded to 119B2327GS)

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 120B2327

Ceramic Piston
(Superseded to 120B2327GS)

$131.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 121B2327

Spacer
(Superseded to 121B2327GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 11893360P

O-Ring
(Superseded to 11893360PGS)

$4.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 123B2327

Guiding Piston
(Superseded to 123B2327GS)

$142.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 124B2327

Piston Pin
(Superseded to 124B2327GS)

$136.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 125B2327

Bronze Con Rod
(Superseded to 125B2327GS)

$278.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 128B2327

Screw
(Superseded to 128B2327GS)

$1.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 127B2327

Complete Cover
(Superseded to 127B2327GS)

$107.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 126B2327

Gasket
(Superseded to 126B2327GS)

$17.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 155B2327

Screw
(Superseded to 155B2327GS)

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 140B1410

Electric Motor Flange
(Superseded to 140B1410GS)

$

$

Not available

19

Briggs & Stratton 150B2126

Gas Engine Flange
(Superseded to 150B2126GS)

$182.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 139B1410

O-Ring
(Superseded to 139B1410GS)

$5.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 138B1410

Seal
(Superseded to 138B1410GS)

$59.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 137B1410

Bearing
(Superseded to 137B1410GS)

$148.99

$

Usually ships in 2-12 days

0

23

Key

$

$

Not available

24

Briggs & Stratton 142B1410

Hollow Shaft
(Superseded to 142B1410GS)

$

$

Not available

25

Briggs & Stratton 134B2327

Plug

$

$

Currently unavailable

26

Briggs & Stratton 134B2327

O-Ring

$

$

Currently unavailable

27

Briggs & Stratton 116B2327

Pump Housing
(Superseded to 116B2327GS)

$717.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 135B2327

Plug

$

$

Currently unavailable

29

Briggs & Stratton 134B2126

Plug

$

$

Currently unavailable

30

Briggs & Stratton 137B2327

O-Ring
(Superseded to 137B2327GS)

$5.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 135B1410

Pumphead
(Superseded to 135B1410GS)

$

$

Not available

32

UNKNOWN

$

$

Not available

33

Briggs & Stratton 140B2327

Screw
(Superseded to 140B2327GS)

$6.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 100B2327

O-Ring

$

$

Currently unavailable

35

Briggs & Stratton 101B1410

Plug
(Superseded to 101B1410GS)

$25.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 102B2327

Complete Valve
(Superseded to 102B2327GS)

$27.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 103B2327

O-Ring

$

$

Currently unavailable

38

Briggs & Stratton 104B1410

Plug
(Superseded to 190638GS)

$19.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 105B1410

O-Ring

$

$

Currently unavailable

40

Briggs & Stratton 106B2327

Support Ring
(Superseded to 106B2327GS)

$19.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 107B2327

Gasket
(Superseded to 107B2327GS)

$77.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 108B2327

Piston Guide
(Superseded to 108B2327GS)

$48.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 109B2327

O-Ring
(Superseded to 109B2327GS)

$5.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 110B2327

Gasket
(Superseded to 110B2327GS)

$47.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 111B2327

Seal
(Superseded to 111B2327GS)

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 155B2327

Screw Items
(Superseded to 155B2327GS)

Note: Not Shown

$4.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 159B2327

Washer Items
(Superseded to 159B2327GS)

Note: Not Shown

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 152B2126

Grub Screw Items
(Superseded to 152B2126GS)

Note: Not Shown

$4.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 161B2327

Ring Items

Note: Not Shown

$

$

Currently unavailable

Briggs & Stratton 200B2327

Valve Kit
(Superseded to 200B2327GS)

Note: Includes item no.(s) 36, 37

$192.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201B2327

Piston Kit
(Superseded to 201B2327GS)

Note: Includes item No. 9

$155.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 202B1410

Oil Seal Kit
(Superseded to 202B1410GS)

Note: Includes item No.(s) 45, 4, 17, 21, 20

$163.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 203B2327

Water Seal Kit
(Superseded to 203B2327GS)

Note: Includes item No.(s) 41,43, 44

$214.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 204B2327

Support Ring Kit
(Superseded to 204B2327GS)

Note: Includes item No. 40

$45.99

$

Usually ships in 2-12 days

0
