A 2701 - Briggs & Stratton Pressure Washer Pumps Pump #A1655 Unloader And Service Kits Parts Diagram

Pressure Washer Pumps

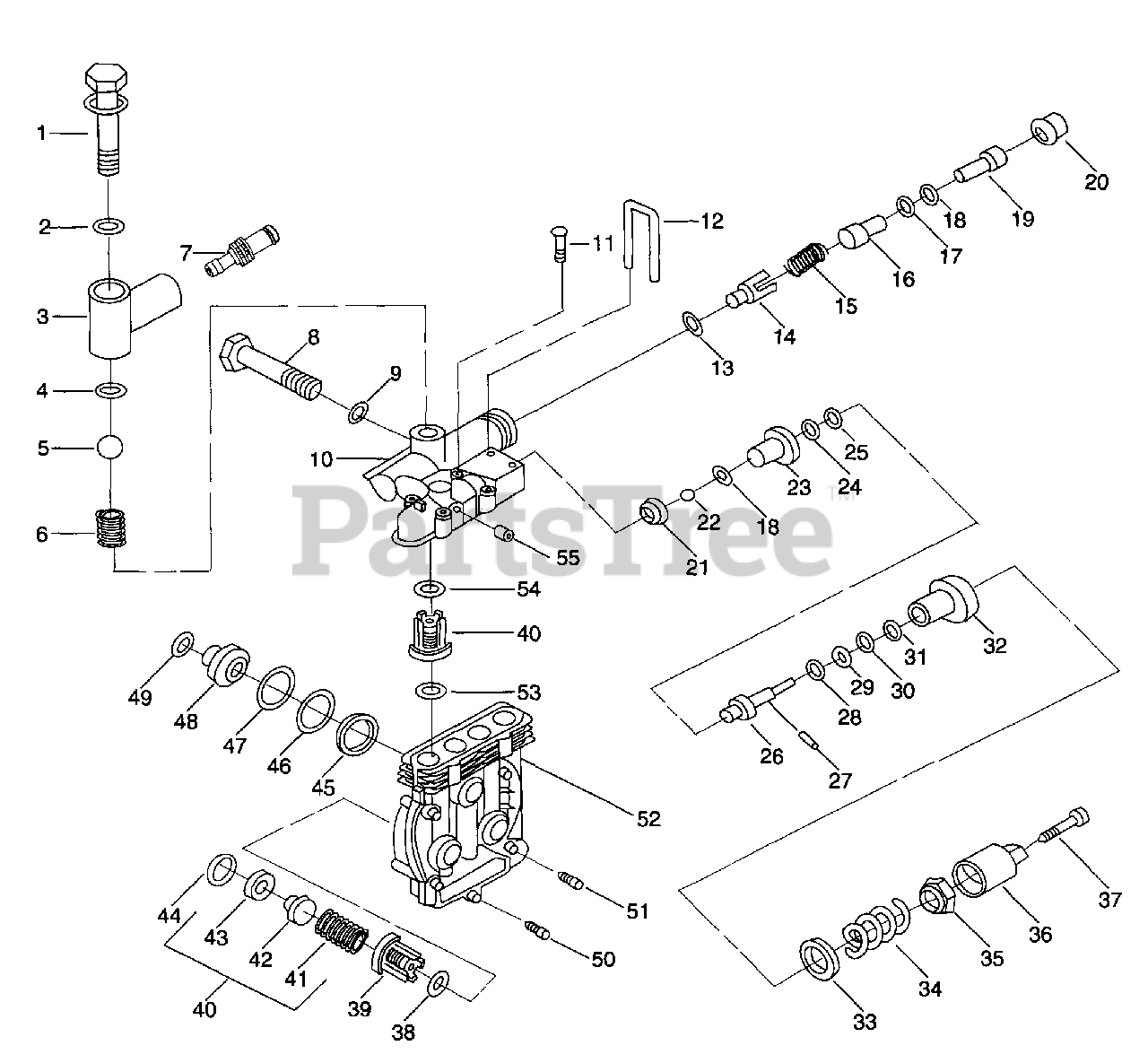

Pump #A1655 Unloader And Service Kits Parts Diagram

  • Title
1

Briggs & Stratton 134A1655

Detergent Inlet Bolt
(Superseded to 134A1655GS)

$11.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 133A1655

O-Ring
(Superseded to 133A1655GS)

$3.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 132A1655

Detergent Inlet
(Superseded to 190577GS)

$6.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 159A1655

O-Ring
(Superseded to 159A1655GS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 130A1655

Check Ball
(Superseded to 130A1655GS)

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 129A1655

Spring
(Superseded to 129A1655GS)

$1.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B1111

Injection Nipple
(Superseded to B1111GS)

$8.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 128A1655

Brass Hex Head Bolt
(Superseded to 128A1655GS)

$6.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 127A1655

O-ring
(Superseded to 127A1655GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 126A1655

Manifold
(Superseded to 126A1655GS)

$130.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 141A1655

Hex Head Cap Screw
(Superseded to 141A1655GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 142A1655

Retainer
(Superseded to 142A1655GS)

$5.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 171A1655

O-Ring
(Superseded to 171A1655GS)

$4.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 135A1655

Check Valve
(Superseded to 135A1655GS)

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 136A1655

Check Valve Spring
(Superseded to 136A1655GS)

$4.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 137A1655

Injection Nozzle
(Superseded to 137A1655GS)

$16.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 138A1655

O-Ring
(Superseded to 138A1655GS)

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 139A1655

O-Ring
(Superseded to 139A1655GS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 140A1655

Fitting
(Superseded to 140A1655GS)

$13.99

$

Usually ships in 2-12 days

0

20

N/A

Shipping Plug

$

$

Not available

21

Briggs & Stratton 143A1655

Disc
(Superseded to 143A1655GS)

$8.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 149A1655

Check Ball
(Superseded to 149A1655GS)

$4.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 144A1655

Main Valve
(Superseded to 144A1655GS)

$4.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 145A1655

O-Ring
(Superseded to 145A1655GS)

$4.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 122A1655

O-Ring
(Superseded to 122A1655GS)

$3.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 150A1655

Piston Bypass
(Superseded to 150A1655GS)

$78.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 176A1655

Pin
(Superseded to 176A1655GS)

$7.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 131A1655

O-Ring
(Superseded to 131A1655GS)

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 151A1655

Ring
(Superseded to 151A1655GS)

$6.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 121A1655

O-Ring
(Superseded to 121A1655GS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 146A1655

O-Ring
(Superseded to 146A1655GS)

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 147A1655

Valve Body
(Superseded to 147A1655GS)

$30.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 152A1655

Spacer
(Superseded to 152A1655GS)

$4.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 153A1655

Spring
(Superseded to 153A1655GS)

$15.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 154A1655

Regulator Nut
(Superseded to 154A1655GS)

$13.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 174A1655

Knob
(Superseded to 174A1655GS)

$7.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 175A1655

Screw
(Superseded to 175A1655GS)

$6.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 173A1655

Washer
(Superseded to 173A1655GS)

$4.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 177A1655

Valve Repair Kit
(Superseded to 177A1655GS)

Note: Not Sold Separately

$120.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 124A1655

Check Valve Kit
(Superseded to 124A1655GS)

$8.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 177A1655

Valve Repair Kit
(Superseded to 177A1655GS)

Note: Not Sold Separately

$120.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 177A1655

Valve Repair Kit
(Superseded to 177A1655GS)

Note: Not Sold Separately

$120.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 177A1655

Valve Repair Kit
(Superseded to 177A1655GS)

Note: Not Sold Separately

$120.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 164A1655

O-Ring
(Superseded to 164A1655GS)

$3.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 163A1655

Seal
(Superseded to 163A1655GS)

$29.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 172A1655

Ring
(Superseded to 172A1655GS)

$6.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 162A1655

O-Ring
(Superseded to 162A1655GS)

$3.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 161A1655

Bushing
(Superseded to 161A1655GS)

$13.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 117A1655

Seal
(Superseded to 117A1655GS)

$3.49

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

51

Briggs & Stratton 170A1655

Hex Head Capscrew
(Superseded to 170A1655GS)

$9.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 169A1655

Brass Pump Head
(Superseded to 169A1655GS)

$161.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 123A1655

O-Ring
(Superseded to 123A1655GS)

$3.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 125A1655

O-Ring
(Superseded to 125A1655GS)

$2.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 148A1655

Hex Head Cap Screw
(Superseded to 148A1655GS)

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 177A1655

Valve Repair Kit
(Superseded to 177A1655GS)

Note: Including item No.(s) 43,42, 41, 39

$120.99

$

Usually ships in 2-12 days

0
