A 2701 - Briggs & Stratton Pressure Washer Pumps Pump #92294 (3000PSI) 4.0GPM Parts Diagram

Pressure Washer Pumps

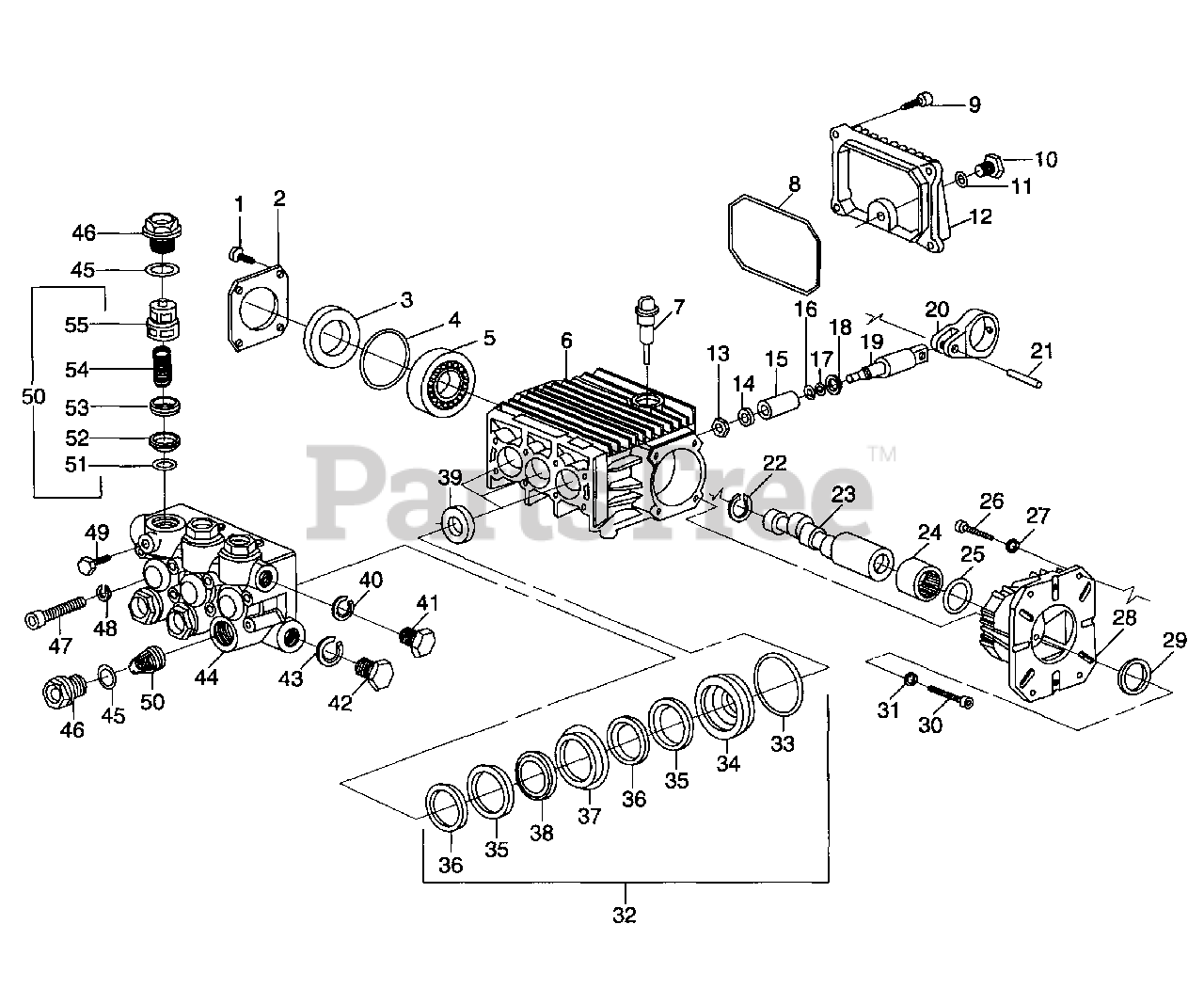

Pump #92294 (3000PSI) 4.0GPM Parts Diagram

  • Title

Briggs & Stratton 92294A

Complete Pump Assy.
(Superseded to 92294AGS)

Note: (Includes 4 ea. 31578 Bolts)

$802.99

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 10292294P

Screw
(Superseded to 10292294PGS)

$2.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 10392294P

Bearing Cover
(Superseded to 10392294PGS)

$19.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 10492294P

Spacer
(Superseded to 10492294PGS)

$18.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 12992293P

O-Ring
(Superseded to 12992293PGS)

$16.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 10592294P

Ball Bearing
(Superseded to 10592294PGS)

$105.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 10692294P

Crankcase
(Superseded to 10692294PGS)

$349.99

$

Usually ships in 2-12 days

0

7

$10.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 10992294P

O-Ring
(Superseded to 10992294PGS)

$6.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 11192294P

Screw
(Superseded to 11192294PGS)

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 10492293P

Capscrew
(Superseded to 10492293PGS)

$13.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 11292294P

O-Ring
(Superseded to 11292294PGS)

$4.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 11092294P

Rear Cover
(Superseded to 11092294PGS)

$64.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 11292293P

Nut
(Superseded to 11292293PGS)

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 11392293P

Washer
(Superseded to 11392293PGS)

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 11592294P

Piston
(Superseded to 11592294PGS)

$142.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 11492293P

O-Ring
(Superseded to 11492293PGS)

$

$

Not available

17

Briggs & Stratton 11592293P

Anti Ext. Ring
(Superseded to 11592293PGS)

$6.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 11492294P

Washer
(Superseded to 11492294PGS)

$4.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 10792294P

Piston Guide
(Superseded to 10792294PGS)

$70.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 10892294P

Connecting Rod
(Superseded to 10892294PGS)

$59.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 11392294P

Pin
(Superseded to 11392294PGS)

$17.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 12092294P

Retaining Ring
(Superseded to 12092294PGS)

$6.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 12192294P

Crankshaft
(Superseded to 12192294PGS)

$385.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 12292294P

Roller Bearing
(Superseded to 12292294PGS)

$90.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 12992293P

O-Ring
(Superseded to 12992293PGS)

$16.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 22288

Screw 5/16" X 1"

$

$

Currently unavailable

27

Briggs & Stratton 22129

Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 12392293P

Gas Flange
(Superseded to 12392293PGS)

$3.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 12492294P

Oil Seal
(Superseded to 12492294PGS)

$41.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 12692294P

Screw
(Superseded to 12692294PGS)

$6.49

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

32

KIT 504 O-Rings

Note: Not Sold Separately

$

$

Not available

33

KIT 504 O-Ring

Note: Not Sold Separately

$

$

Not available

34

KIT 504 Packing Retainer

Note: Not Sold Separately

$

$

Not available

35

KIT 504 Packing

Note: Not Sold Separately

$

$

Not available

36

KIT 504 Head Ring

Note: Not Sold Separately

$

$

Not available

37

KIT 504 O-Rings

Note: Not Sold Separately

$

$

Not available

38

KIT 504 Packing

Note: Not Sold Separately

$

$

Not available

39

KIT 503 Oil Seals

Note: Not Sold Separately

$

$

Not available

40

Briggs & Stratton 11792294P

Washer
(Superseded to 11792294PGS)

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 10192293P

Capscrew
(Superseded to 10192293PGS)

$34.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 11692294P

Capscrew
(Superseded to 11692294PGS)

$11.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 11892294P

Washer
(Superseded to 11892294PGS)

$3.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 10092294P

Pump Head
(Superseded to 10092294PGS)

$

$

Not available

45

KIT 501 O-Ring

Note: Not Sold Separately

$

$

Not available

46

KIT 501 Cap Screw

Note: Not Sold Separately

$

$

Not available

47

Briggs & Stratton 10192294P

Screw
(Superseded to 10192294PGS)

$6.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 12492293P

Washer
(Superseded to 12492293PGS)

$4.49

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

50

KIT 502 Valve Assy

Note: Not Sold Separately

$

$

Not available

51

KIT 500 O-Ring

Note: Not Sold Separately

$

$

Not available

52

KIT 500 Valve Seat

Note: Not Sold Separately

$

$

Not available

53

KIT 500 Valve

Note: Not Sold Separately

$

$

Not available

54

KIT 500 Spring

Note: Not Sold Separately

$

$

Not available

55

KIT 500 Valve Cage Not Sold Separately

$

$

Not available

Briggs & Stratton 50190

Flat Washer
(Superseded to 50190GS)

Note: (Not Shown)

$3.99

$

In Stock, only 1 left!

0

Briggs & Stratton 50092294P

Valve Kit
(Superseded to 50092294PGS)

Note: Includes item No.(s) 51, 52, 53, 54, 55, Will service 3 cylinders

$167.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 50192294P

Cap
(Superseded to 50192294PGS)

Note: Includes item No.(s) 45, 46, Will service 3 cylinders

$117.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 50292294P

Valve Seat Kit

Note: Includes item No.(s) 51, 52, 53, 54, 55, Will service 1 cylinder

$

$

Currently unavailable

Briggs & Stratton 50392294P

Oil Seals
(Superseded to 50392294PGS)

Note: Includes item No. 39, Will service 3 cylinders

$42.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 50492294P

O-Ring Kit
(Superseded to 50492294PGS)

Note: Includes item No.(s) 33, 34, 37, 38, 35, 36, Will service 1 cylinder

$120.99

$

Usually ships in 2-12 days

0
