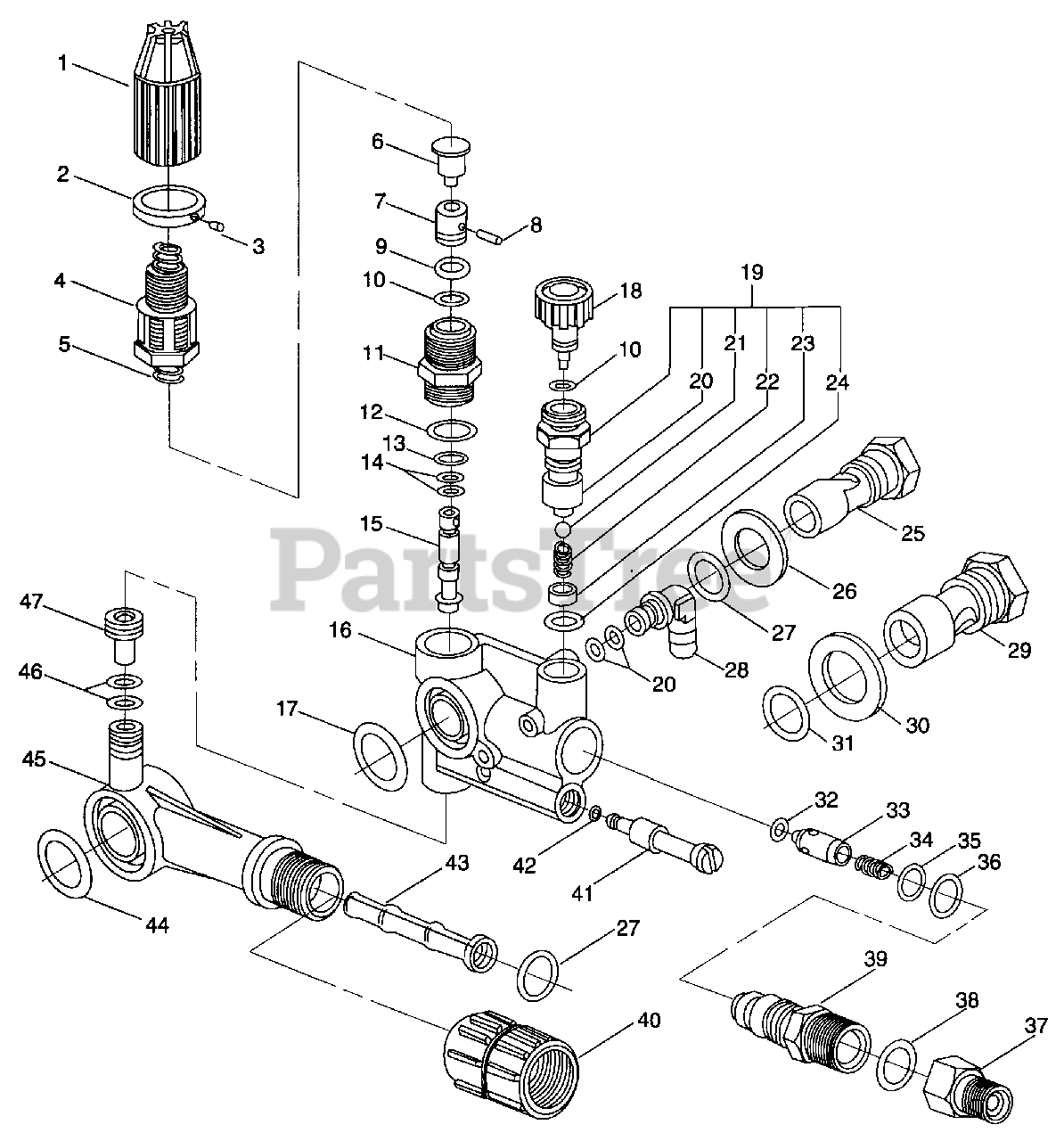

A 2701 - Briggs & Stratton Pressure Washer Pumps Pump #87628 Unloader And Service Kits Parts Diagram

Pressure Washer Pumps

Pump #87628 Unloader And Service Kits Parts Diagram

  • Title

Briggs & Stratton 91383

Complete Unloader
(Superseded to 91383GS)

$223.99

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 96737

Knob
(Superseded to 96737GS)

$11.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 96738

Ring Nut
(Superseded to 96738GS)

$11.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 96740

Set Screw
(Superseded to 96740GS)

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 96739

Spring Guide
(Superseded to 96739GS)

$45.99

$

Usually ships in 2-12 days

0

$

$

Not available

$

$

Currently unavailable

7

Briggs & Stratton 10691383

Upper Piston
(Superseded to 10691383GS)

$65.99

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

9

Briggs & Stratton 89361

O-Ring
(Superseded to 89361GS)

Note: Not Sold Separately

$50.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 89361

O-Ring
(Superseded to 89361GS)

Note: Not Sold Separately

$50.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 10791383

Piston Guide
(Superseded to 10791383GS)

$48.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 89361

O-Ring
(Superseded to 89361GS)

Note: Not Sold Separately

$50.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 89361

O-Ring
(Superseded to 89361GS)

Note: Not Sold Separately

$50.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 89361

O-Ring
(Superseded to 89361GS)

Note: Not Sold Separately

$50.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 10891383

Lower Piston
(Superseded to 10891383GS)

$78.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 10991383

Body
(Superseded to 10991383GS)

$148.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 89361

O-Ring
(Superseded to 89361GS)

Note: Not Sold Separately

$50.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 96741

Knob
(Superseded to 96741GS)

$13.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 11191383

Check Valve
(Superseded to 11191383GS)

$91.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 89361

O-Ring
(Superseded to 89361GS)

Note: Not Sold Separately

$50.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 89361

Stainless Ball
(Superseded to 89361GS)

Note: Not Sold Separately

$50.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 89361

Valve Spring
(Superseded to 89361GS)

Note: Not Sold Separately

$50.99

$

Usually ships in 2-12 days

0

23

Connector

Note: Not Sold Separately

$

$

Not available

24

Briggs & Stratton 89361

O-Ring
(Superseded to 89361GS)

Note: Not Sold Separately

$50.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 10191383

3/8" Fitting
(Superseded to 226B2327GS)

$54.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 10091383

Washer
(Superseded to 10091383GS)

$5.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 89361

O-Ring
(Superseded to 89361GS)

$50.99

$

Usually ships in 2-12 days

0

$

$

Not available

29

Briggs & Stratton 10391383

1/2" Fitting
(Superseded to 10391383GS)

$37.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 10291383

Washer
(Superseded to 10291383GS)

$5.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 89361

O-Ring
(Superseded to 89361GS)

Note: Not Sold Separately

$50.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 12291383

O-Ring
(Superseded to 12291383GS)

$1.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 12191383

Trap Valve
(Superseded to 12191383GS)

$13.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 12091383

Spring
(Superseded to 12091383GS)

$15.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 11991383

O-Ring
(Superseded to 11991383GS)

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 11891383

O-Ring
(Superseded to 11891383GS)

$4.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 11491383

Outlet
(Superseded to 11491383GS)

$35.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 11391383

O-Ring
(Superseded to 11391383GS)

$4.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 11791383

Injector
(Superseded to 11791383GS)

$78.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 11591383

Connector
(Superseded to 11591383GS)

$32.99

$

In Stock, only 1 left!

0

$

$

Not available

42

Briggs & Stratton 89361

O-Ring
(Superseded to 89361GS)

Note: Not Sold Separately

$50.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 89361

Inlet Filter
(Superseded to 89361GS)

Note: Not Sold Separately

$50.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 89361

O-Ring
(Superseded to 89361GS)

Note: Not Sold Separately

$50.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 89646

Suction
(Superseded to 89646GS)

$76.99

$

In Stock, only 1 left!

0

46

Briggs & Stratton 89361

O-Ring
(Superseded to 89361GS)

Note: Not Sold Separately

$50.99

$

Usually ships in 2-12 days

0

47

Valve Seat Part

Note: Not Available

$

$

Not available

Briggs & Stratton 89361

Service Kit O-Rings
(Superseded to 89361GS)

Note: Includes item No.(s) 10, 13, 14, 17, 46, 24, 21, 22

$50.99

$

Usually ships in 2-12 days

0
