A 2701 - Briggs & Stratton Pressure Washer Pumps Pump #87628 (2200PSI) 3.0GPM Parts Diagram

Pressure Washer Pumps

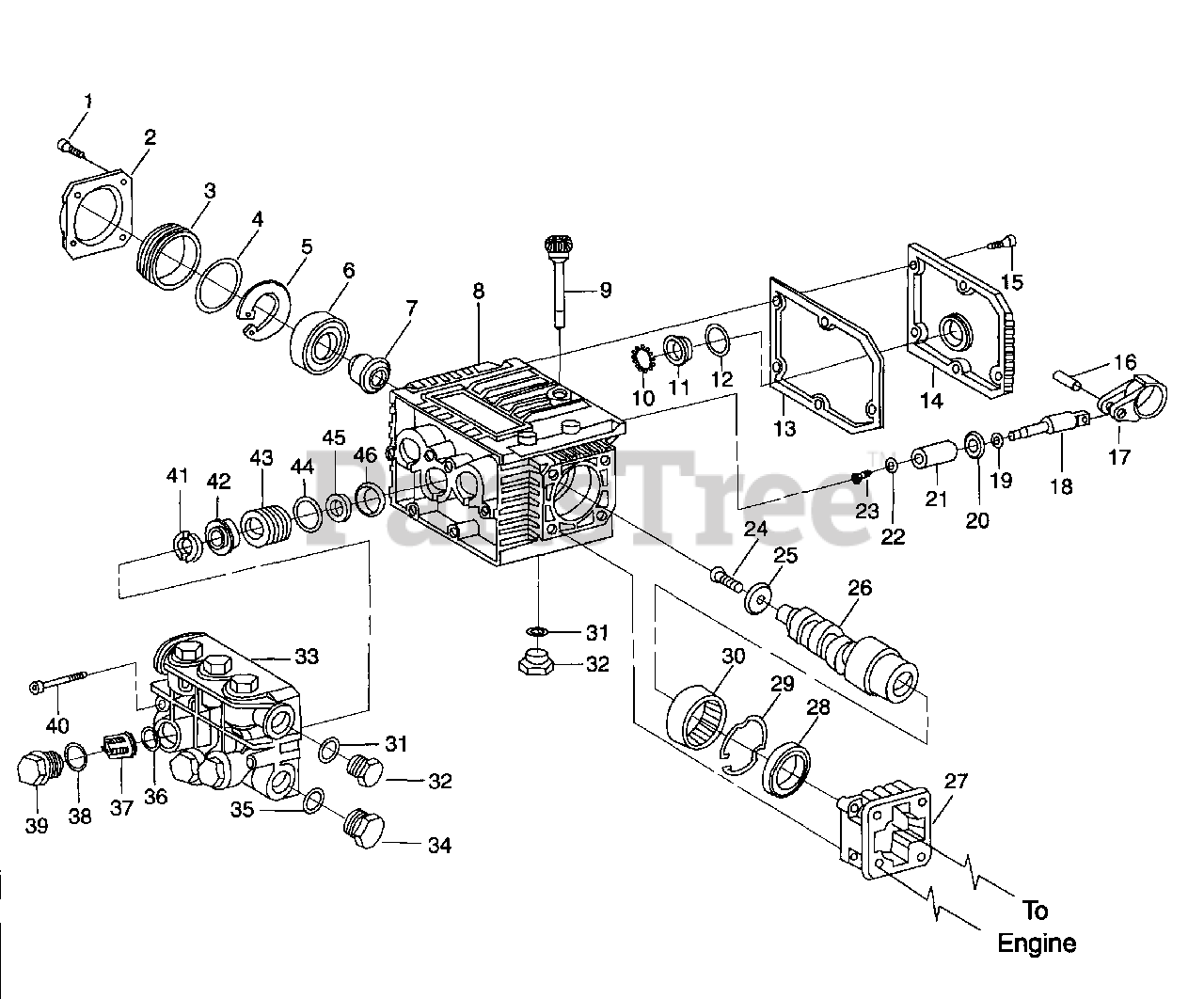

Pump #87628 (2200PSI) 3.0GPM Parts Diagram

  • Title

Briggs & Stratton 87628

Complete Pump Assy.

$

$

Not available

1

Briggs & Stratton 12087822P

Bolt
(Superseded to 12087822PGS)

$3.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 10687628P

Side Cover
(Superseded to 10687628PGS)

$11.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 10787628P

Shaft Side
(Superseded to 10787628PGS)

$5.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 10787822P

O-Ring
(Superseded to 10787822PGS)

$5.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 10887628P

Circlip
(Superseded to 10887628PGS)

$5.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 10987628P

Bearing
(Superseded to 10987628PGS)

$89.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 10887822P

Bushing
(Superseded to 10887822PGS)

$33.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 10987822P

Pump Body
(Superseded to 10987822PGS)

$368.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 11287628P

Dipstick
(Superseded to 11287628PGS)

$28.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 12287628P

Snap Ring
(Superseded to 12287628PGS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 12187628P

Oil Indicator
(Superseded to 12187628PGS)

$5.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 12087628P

O-Ring
(Superseded to 12087628PGS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 11487822P

Rear Cover Gasket
(Superseded to 11487822PGS)

$12.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 11987628P

Rear Cover
(Superseded to 11987628PGS)

$62.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 17293360P

Screw

$

$

Not available

16

Briggs & Stratton 11287822P

Piston Guide
(Superseded to 11287822PGS)

$10.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 12387628P

Con Rod

$

$

Currently unavailable

18

Briggs & Stratton 11787628P

Piston Guide
(Superseded to 11787628PGS)

$11.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 11687628P

Spacer
(Superseded to 11687628PGS)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 11587628P

O-Ring
(Superseded to 192914GS)

$24.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 11487628P

Piston
(Superseded to 11487628PGS)

$142.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 11187822P

Copper Washer
(Superseded to 11187822PGS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 11087822P

Screw
(Superseded to 11087822PGS)

$6.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 12587822P

Bolt
(Superseded to 12587822PGS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 12487822P

Washer
(Superseded to 12487822PGS)

$6.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 12487628P

Shaft 3GPM 3/4"
(Superseded to 12487628PGS)

$

$

Not available

27

Briggs & Stratton 12787628P

Mounting Flange
(Superseded to 12787628PGS)

$86.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 12187822P

Seal Ring
(Superseded to 12187822PGS)

$63.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 12687628P

Snap Ring
(Superseded to 12687628PGS)

$24.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 12587628P

Ring Bearing
(Superseded to 12587628PGS)

$82.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 10887627P

O-Ring
(Superseded to 134B2327GS)

$4.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 10487628P

Cap Fitting
(Superseded to 10487628PGS)

$11.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 10287628P

Pump Head (Brass)

$

$

Currently unavailable

34

Briggs & Stratton 10387628P

Cap Fitting
(Superseded to 10387628PGS)

$18.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 11787822P

O-Ring
(Superseded to 137B2327GS)

$5.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 10387822P

O-Ring
(Superseded to 10387822PGS)

$4.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 10287822P

Complete Valve
(Superseded to 10287822PGS)

$21.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 10187822P

O-Ring
(Superseded to 100B2327GS)

$5.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 10187628P

Valve Cap

$

$

Not available

40

Briggs & Stratton 10087822P

Head Bolt
(Superseded to 10087822PGS)

$6.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 10487822P

Support Ring
(Superseded to 10487822PGS)

$10.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 10587822P

Packaging Gasket
(Superseded to 10587822PGS)

$55.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 10587628P

Piston Guide
(Superseded to 10587628PGS)

$36.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 10687822P

O-Ring
(Superseded to 10687822PGS)

$3.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 10393360P

Packaging Seal Gasket
(Superseded to 10393360PGS)

$13.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 16593360P

Piston Oil Seal
(Superseded to 16593360PGS)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 50087628P

Valves
(Superseded to 193955GS)

Note: Includes item No.(s) 37, 36

$159.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 50187628P

Water Seals
(Superseded to 50187628PGS)

Note: Includes item No.(s) 41, 42, 44, 45

$130.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 12687822P

Oil Seals
(Superseded to 12687822PGS)

Note: Includes item No.(s) 46, 4, 13, 28

$75.99

$

Usually ships in 2-12 days

0
