A 100 C (37A-100C129) - Cub Cadet Work Fun Runner Wheels, Rear Parts Diagram

Work Fun Runner

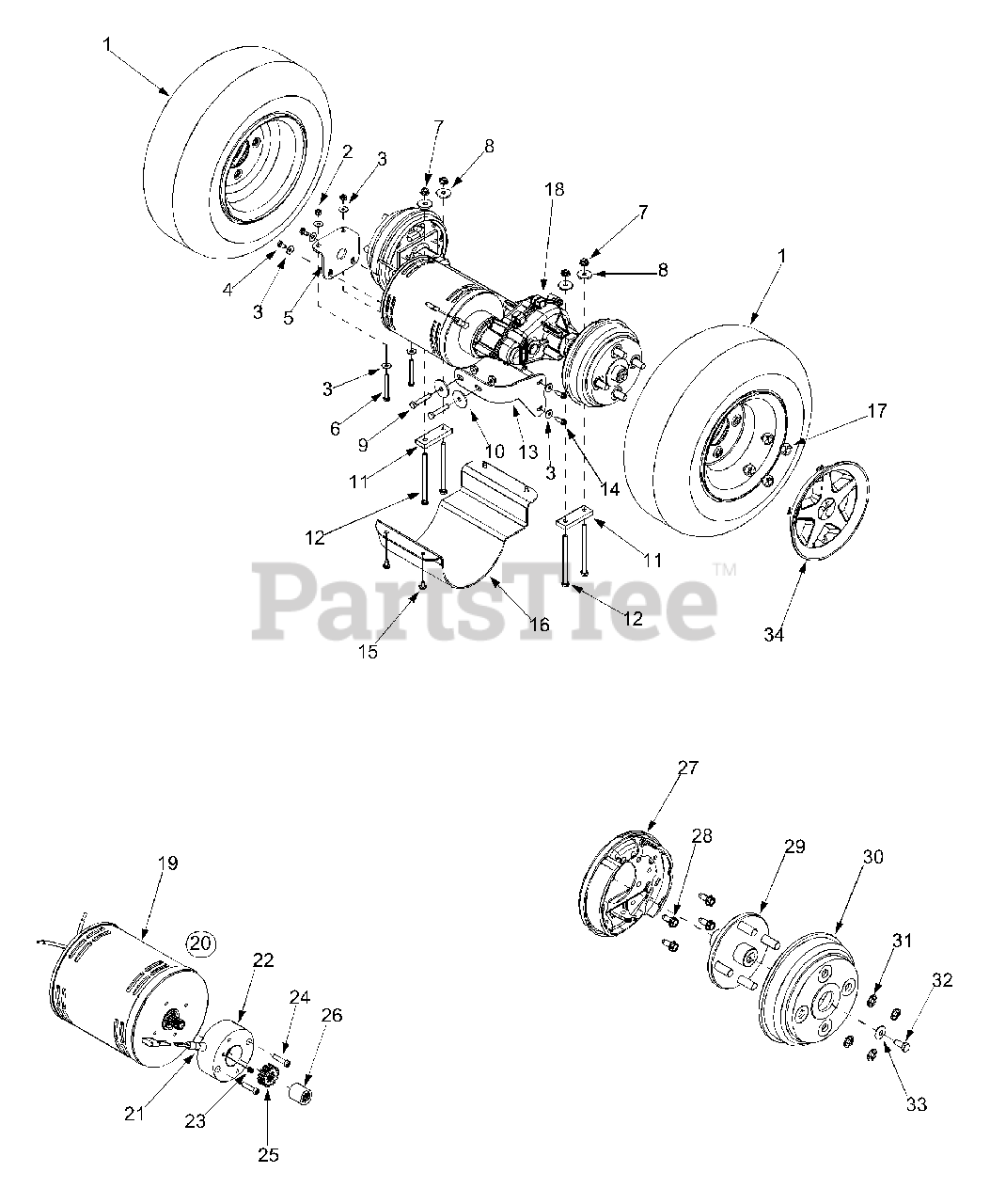

Wheels, Rear Parts Diagram

  • Title
1

Cub Cadet 634-0207

Rear Wheel Assembly

$

$

Not available

2

Cub Cadet 712-0291

Hex Nut 1/4-20

$4.49

$

In Stock, Qty 8

0

3

Cub Cadet 736-0270

Flat Washer .265 ID x .750 OD

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3296

Hex Cap Screw 1/4-20 x .750

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet 707-0173

Motor Support Bracket

$

$

Not available

6

Cub Cadet 710-0641

Hex Cap Screw 1/4-20 x 2.25

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0231

Flat Washer .344 ID x 1.25 OD

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3180

Hex Cap Screw 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-3070

Flat Washer .344 ID x 1.5 OD

$

$

Not available

11

Cub Cadet 707-0156

Transmission Mounting Strap

$

$

Not available

12

Cub Cadet 710-3195

Hex Cap Screw 5/16-18 x 4.50

$7.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 707-0133

Transmission Torque Bracket

$

$

Not available

14

Cub Cadet 710-0642

Hex Washer Screw 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0599

Hex Washer Screw 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 707-0172

Motor Shield

$

$

Not available

17

$

$

Not available

18

Cub Cadet 618-0381

Transmission Assembly

$

$

Not available

19

Cub Cadet 724-0255

48V Electric Motor

$

$

Not available

20

Cub Cadet 618-0588

Motor Speed Sensor Assembly

$

$

Not available

21

Cub Cadet 724-0257

RPM Sensor

$

$

Not available

22

Cub Cadet 718-0789

Motor Spacer

$

$

Not available

23

Cub Cadet 710-1842

Set Screw 1/4-20 x .38
(Superseded to 710-1842A)

$5.49

$

In Stock, only 2 left!

0

24

Cub Cadet 710-3276

Screw 1/4-20

$

$

Not available

25

$

$

Not available

26

Cub Cadet 718-0785

Motor Spline Coupling

$

$

Not available

27

Cub Cadet 661-0041

Brake Shoe Assembly - RH

$

$

Not available

Cub Cadet 661-0042

Brake Shoe Assembly - LH

$

$

Not available

28

Cub Cadet 710-1260

Hex Washer Screw 5/16-18 x .750
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 618-0562

Hub Stud Assembly

$

$

Not available

30

Cub Cadet 761-0350

Brake Drum

$

$

Not available

31

Cub Cadet 712-0701

Nut Spacer .50

$

$

Not available

32

Cub Cadet 710-0627

Hex Cap Screw 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 731-2372

Hubcap

Note: (If Equipped)

$

$

Currently unavailable
