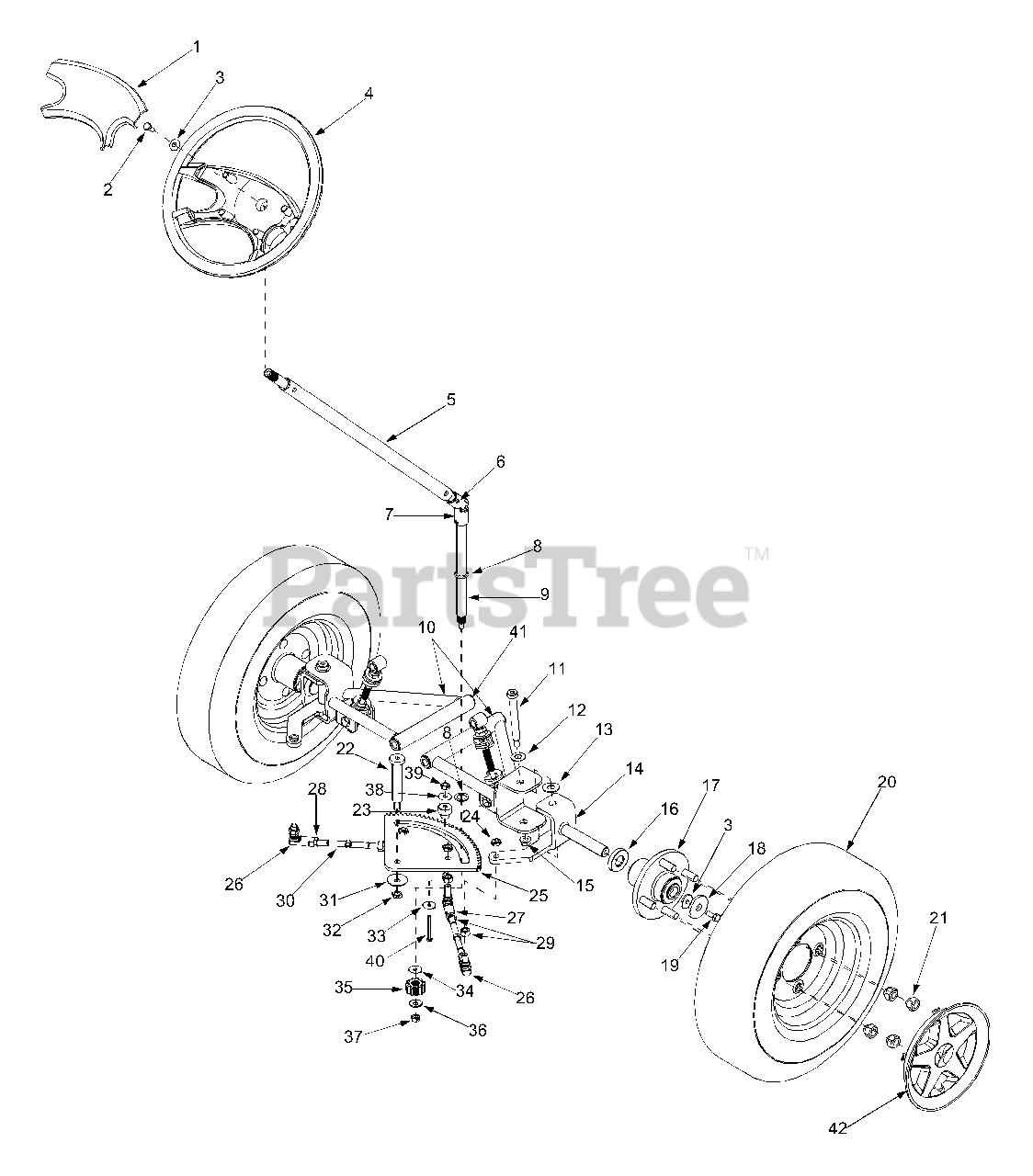

A 100 C (37A-100C129) - Cub Cadet Work Fun Runner Steering Parts Diagram

Work Fun Runner

Steering Parts Diagram

  • Title

1

Cub Cadet 731-2343

Steering Wheel Cap

$

$

Not available

2

Cub Cadet 710-0643

Hex Cap Screw 5/16-18 x 1.0

$6.99

$

In Stock, Qty 5

0

3

Cub Cadet 736-0159

Bell Washer

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 731-2342

Steering Wheel

$

$

Not available

5

Cub Cadet 611-0139

Shaft Assembly

$

$

Not available

6

Cub Cadet 715-0151

Spiral Pin

$

$

Not available

7

Cub Cadet 723-0487

U-Joint Coupling

$

$

Not available

8

Cub Cadet 741-0736

Flange Bearing .625 ID x .750 OD
(Superseded to 741-1142A)

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 711-1533

Lower Steering Shaft
(Superseded to 711-1664)

$

$

Not available

10

Cub Cadet 649-0045

Front Arm Assembly - RH

$

$

Not available

Cub Cadet 649-0046

Front Arm Assembly - LH

$

$

Not available

11

Cub Cadet 738-1152

Shoulder Screw .497 ID x 3.50 Lg

$

$

Not available

12

Cub Cadet 736-0253

Bell Washer

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 736-3084

Flat Washer .510 ID x 1.12 OD

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 607-0003

Front Axle Assembly - LH

$

$

Not available

Cub Cadet 607-0004

Front Axle Assembly - RH

$

$

Not available

15

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 750-1281

Axle Spacer .780 ID x 1.625 OD

$

$

Not available

17

Cub Cadet 607-0002

Wheel Assembly Hub

$

$

Not available

18

Cub Cadet 736-0346

Flat Washer .330 ID x 2.00 OD

$

$

Not available

19

Cub Cadet 710-0627

Hex Cap Screw 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 634-0206

Front Wheel Assembly

$

$

Not available

21

Cub Cadet 712-3076

Lug Nut

$

$

Not available

22

Cub Cadet 738-0998

Shoulder Screw 3/8-24 x .625

$

$

Not available

23

Cub Cadet 750-1268

Shoulder Spacer .26 ID x .875 OD

$

$

Not available

24

Cub Cadet 712-0262

Hex Lock Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 717-1739

Gear Segment

$

$

Not available

26

Cub Cadet 723-0351

Ball Joint 3/8-24
(Superseded to 923-0351)

$44.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 723-0156

Ball Joint 3/8-24
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-0312

Jam Nut 3/8-24
(Superseded to 712-0312A)

$3.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 13

0

30

Cub Cadet 711-1529

Tie Rod 3/8-24 x 5.5

$

$

Not available

31

Cub Cadet 736-0356

Bell Washer .39 ID x 1.38 OD
(Superseded to 936-0356)

$

$

Not available

32

Cub Cadet 712-0262

Hex Lock Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0512

Flat Washer .281 ID x .875 OD

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 736-0337

Flat Washer.625 ID x 1.0 OD

$4.49

$

In Stock, Qty 9

0

35

Cub Cadet 748-0290

Steering Pinion Gear
(Superseded to 948-0290)

$

$

Not available

36

Cub Cadet 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 712-0237

Hex Lock Nut 5/16-24

$4.99

$

In Stock, only 4 left!

0

38

Cub Cadet 736-0211

Flat Washer .285 ID x .25 OD

$6.99

$

In Stock, Qty 7

0

39

Cub Cadet 712-0291

Hex Lock Nut 1/4-20

$4.49

$

In Stock, Qty 8

0

40

Cub Cadet 710-0564

Hex Cap Screw 1/4-20 x 2.75

$6.99

$

In Stock, only 3 left!

0

41

Cub Cadet 741-1120

Flange Bearing .501ID x .626 OD

$

$

Not available

42

Cub Cadet 731-2372

Hubcap

Note: (If Equipped)

$

$

Currently unavailable
