A 100 C (37A-100C129) - Cub Cadet Work Fun Runner Floor Panel Parts Diagram

Work Fun Runner

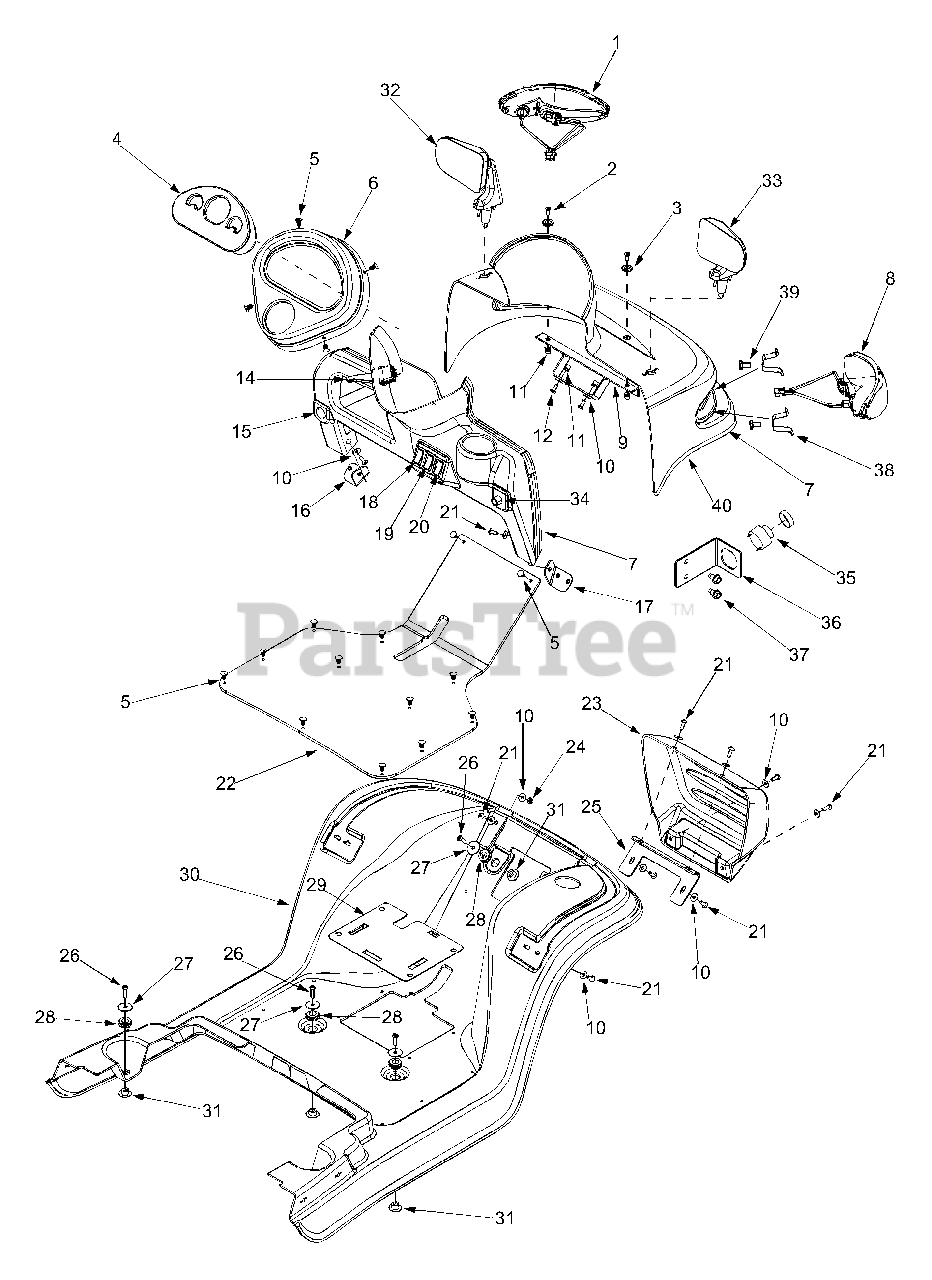

Floor Panel Parts Diagram

  • Title

1

Cub Cadet 625-0058

Headlight lamp Assembly - LH

$

$

Not available

2

Cub Cadet 710-1815

Cap Screw 1/4-20 x .750

$

$

Not available

3

Cub Cadet 736-0742

Shoulder Spacer .265 ID x

$

$

Not available

4

Cub Cadet 725-1764

Instruction Panel

$

$

Not available

5

Cub Cadet 726-0465

Retainer Clip

$4.99

$

In Stock, Qty 16

0

6

Cub Cadet 731-2350

Dash Cap Panel

$

$

Not available

7

Cub Cadet 631-0208

Dash Assembly - Silver

$

$

Not available

Cub Cadet 631-0210

Dash Assembly - Green

$

$

Not available

8

Cub Cadet 625-0057

Headlight Lamp Assembly - RH
(Superseded to 925-0057)

$

$

Not available

9

Cub Cadet 707-0129

Upper Dash Support

$

$

Not available

10

Cub Cadet 736-0342

Flat Washer .283 ID x .75 OD

$7.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 750-1261

Inset Screw 1/4-20

$

$

Not available

12

Cub Cadet 710-0751

Hex Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 725-1767

Directional Switch

$

$

Not available

15

Cub Cadet 725-2003

Outlet Power Assembly 12V

$42.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 707-0127

Lower Dash Support - LH

$

$

Not available

17

Cub Cadet 707-0128

Lower Dash Support - RH

$

$

Not available

18

Cub Cadet 725-1463

Hazard Switch

$

$

Not available

19

Cub Cadet 725-1766

Headlight Switch

$

$

Not available

20

Cub Cadet 725-1770

Horn Switch

$

$

Not available

21

Cub Cadet 710-0255

Screw 1/4-20 x .750
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 735-0682

Floor Mat

$

$

Not available

23

Cub Cadet 731-2331

Front Bumper Panel

$

$

Not available

24

Cub Cadet 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 17

0

25

Cub Cadet 707-0160

Front Bumper Bracket

$

$

Not available

26

Cub Cadet 710-0166

Screw 1/4-20 x 1.0
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

27

Cub Cadet 736-0211

Flat Washer .285 ID x 1.25 OD

$6.99

$

In Stock, only 3 left!

0

28

Cub Cadet 735-0679

Rubber Grommet

$

$

Not available

29

Cub Cadet 707-0170A

Access Panel

$

$

Not available

30

Cub Cadet 731-2330A

Floor Panel - Silver

$

$

Not available

Cub Cadet 731-2344A

Floor Panel - Green

$

$

Not available

31

Cub Cadet 750-1265

Shoulder Spacer .380 ID x .645 OD

$

$

Not available

32

Cub Cadet 731-2481

Side Mirror - LH

Note: (If Equipped)

$

$

Not available

33

Cub Cadet 731-2482

Side Mirror - RH

Note: (If Equipped)

$

$

Not available

34

Cub Cadet 725-1765

Key Switch

$

$

Not available

Cub Cadet 925-2019

Key, Master

$

$

Not available

35

Cub Cadet 725-2007

Horn

$

$

Not available

36

Cub Cadet 707-0178

Horn Bracket

$

$

Not available

37

Cub Cadet 710-0599

Hex Washer Screw 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 726-3057A

Headlight Clip

$

$

Not available

39

Cub Cadet 710-3013

Hex Cap Screw 1/4-20 x .500

$4.99

$

In Stock, Qty 11

0

40

Cub Cadet 631-0214

Plastic Trim

$

$

Not available

Cub Cadet 629-1078

Key Switch Wire Harness

Note: (Not Shown)

$

$

Not available
