A 100 C (37A-100C129) - Cub Cadet Work Fun Runner Batteries & Charger Parts Diagram

Work Fun Runner

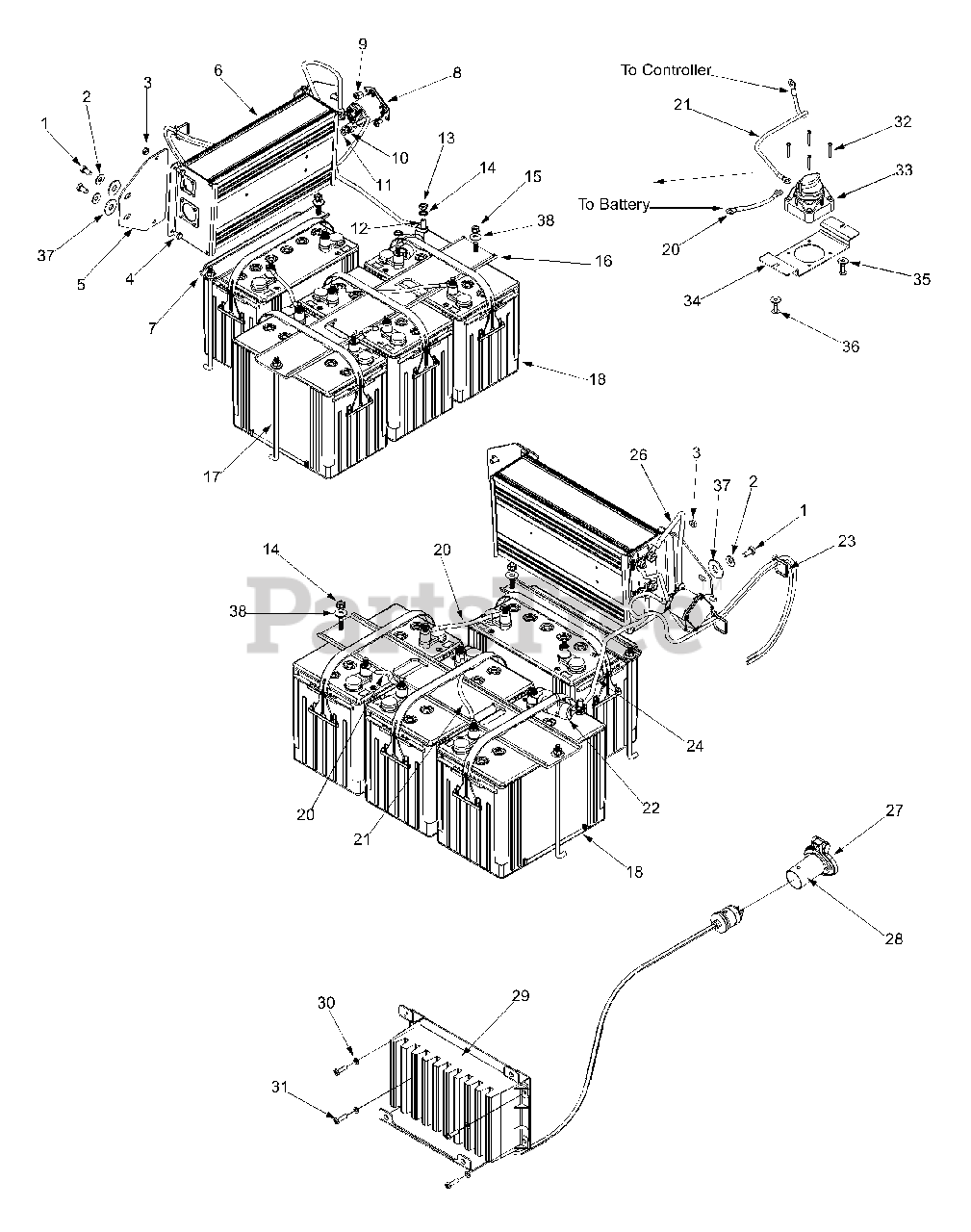

Batteries & Charger Parts Diagram

  • Title
1

Cub Cadet 710-0627

Hex Cap Screw 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 736-0264

Washer .330 ID x .630 OD

$6.99

$

In Stock, only 1 left!

0

3

Cub Cadet 712-0291

Hex Lock Nut 1/4-20

$4.49

$

In Stock, Qty 8

0

4

Cub Cadet 710-3013

Hex Cap Screw 1/4-20 x .50

$4.99

$

In Stock, Qty 11

0

5

Cub Cadet 707-0149

Controller Mounting Plate

$

$

Not available

6

Cub Cadet 625-0059C

Motor Controller Assembly

$

$

Not available

7

Cub Cadet 707-0148

RR Battery Holddown Plate

$

$

Not available

8

Cub Cadet 725-1464

Relay 100 amp

$

$

Not available

9

Cub Cadet 710-0286

Machine Screw 1/4-20 x .500

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-0607

External Lock Washer 5/16

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0709

Hex Nut 5/16-18

$

$

Not available

12

Cub Cadet 710-0696

Hex Cap Screw 3/8-24 x .875

$6.99

$

In Stock, only 2 left!

0

13

Cub Cadet 712-0711

Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0148

External Lock Washer

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0265

Sems Nut 5/16-18

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 707-0140

Battery Holddown Plate

$

$

Not available

17

Cub Cadet 747-1266

L-Style Hook Bolt 5/16-18

$

$

Not available

18

$

$

Not available

20

Cub Cadet 629-1074

Battery Harness Assembly

$

$

Not available

21

Cub Cadet 629-1076

Battery Harness Assembly

$

$

Not available

$

$

Not available

23

Cub Cadet 726-0469

Cable Tie

$

$

Not available

24

Cub Cadet 629-1075

Battery Wire Harness

$

$

Not available

26

Cub Cadet 629-1085

Relay Harness Assembly

$

$

Not available

27

Cub Cadet 729-1110

Plug Housing

$

$

Not available

28

Cub Cadet 729-1109

Plug Cover

$

$

Not available

29

Cub Cadet 725-1763

Battery Charger

$

$

Not available

30

Cub Cadet 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 710-0166

Machine Screw 1/4-20
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

32

Cub Cadet 710-1874

Screw #6-32 x 1.25

$

$

Not available

33

Cub Cadet 725-2050

Battery Reset Switch

$

$

Not available

34

Cub Cadet 707-0191

Switch Plate

$

$

Not available

35

Cub Cadet 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 710-0946

Machine Screw 1/4-20 x .625

$3.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 750-1325

Shoulder Spacer .317 ID x .385 OD

$

$

Not available

38

Cub Cadet 736-0159

Washer .349 ID x .879 OD

$4.49

$

In Stock, Qty 20+

0
