679cc Engine

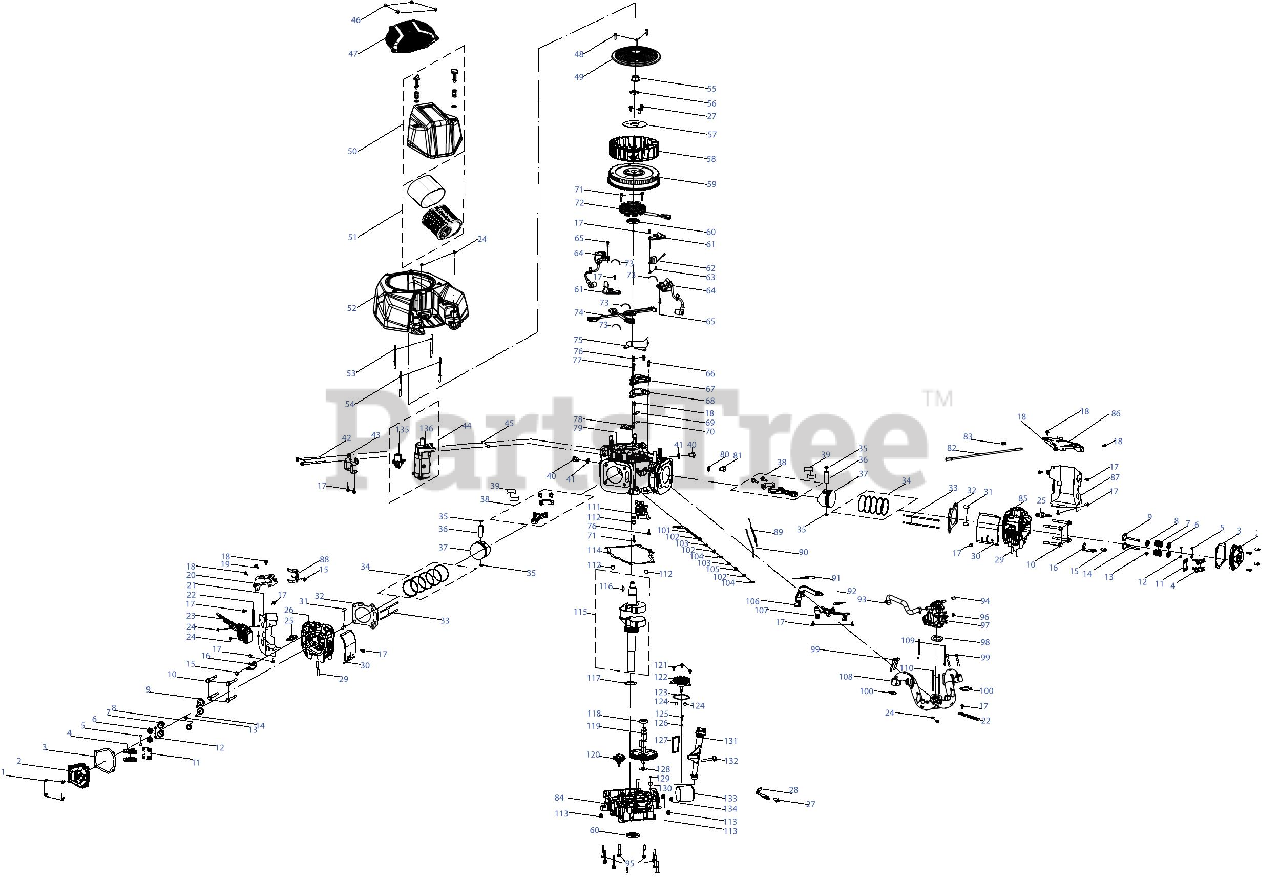

9Q78XU Engine Assembly Parts Diagram

  • Title
1

Cub Cadet 710-05316

Bolt, M6x22

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet 951-15352

Valve Cover

$19.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 951-15576

Gasket, Valve Cover

$9.99

$

In Stock, only 4 left!

0

4

Cub Cadet 951-11981

Rocker Arm Assembly
(Superseded to 951-11981A)

$40.99

$

In Stock, only 1 left!

0

5

Cub Cadet 951-12081

Valve Adjust Cap, Exhaust
(Superseded to 951-12269)

$6.49

$

In Stock, Qty 6

0

6

Cub Cadet 951-14911

Valve Spring Seat

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 951-15356

Valve Spring

$5.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 951-12077

Valve Spring Seat
(Superseded to 951-12077A)

$3.99

$

In Stock, only 2 left!

0

9

Cub Cadet 951-15373

Intake Vavle

$21.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-06507

Bolt, M10x1.25x87

$7.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 951-11965A

Rocker Arm Base
(Superseded to 951-11965B)

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 951-14912

Valve Locker
(Superseded to 951-14912A)

$3.49

$

In Stock, only 2 left!

0

13

Cub Cadet 951-11964

Intake Valve Seal
(Superseded to 951-11964A)

$11.99

$

In Stock, only 2 left!

0

14

Cub Cadet 951-15374

Exhaust Valve

$24.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-06593

Bolt, M8x16

$3.99

$

Usually ships in 3-6 days

0

16

$13.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-04915

Bolt, M6x12

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-04914

Bolt, M6x10

$4.49

$

In Stock, only 3 left!

0

19

Cub Cadet 710-06604

Bolt, M6x10

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 907-06783

Guard, Right

$11.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 907-06597

Cylinder Head Baffle

$21.99

$

Usually ships in 3-6 days

0

$3.99

$

Usually ships in 3-6 days

0

23

$99.99

$

Usually ships in 3-6 days

0

24

$6.99

$

In Stock, Qty 20+

0

25

Cub Cadet 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

26

Cub Cadet 951-15804

Cylinder Head

$259.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-06506

Bolt, M8x20

$4.99

$

Usually ships in 3-6 days

0

28

$6.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-04911

Stud, M8x34

$4.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 715-04097

Pin, 12x20

$6.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 921-04967

Gasket, Cylinder Head

$14.99

$

Usually ships in 3-6 days

0

33

$6.99

$

In Stock, only 2 left!

0

34

Cub Cadet 951-05422

Piston Ring Set

$27.99

$

In Stock, only 1 left!

0

35

$4.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 911-06733

Piston Pin

$6.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 951-05376

Connecting Rod Assembly

$124.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 951-15587

Connecting Rod Bearing

$14.99

$

In Stock, only 1 left!

0

40

Cub Cadet 710-06605

Earth Bolt

$5.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 736-05220

Washer, 14x1.5x22

$4.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 710-06522

Bolt, M8x110

$4.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 907-06785

Starter Relay Support

$10.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 925-06907

Electric Starter

$459.99

$

Usually ships in 3-6 days

0

45

$5.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 712-04276

Nut, M6
(Superseded to 712-04276A)

$6.49

$

In Stock, Qty 12

0

47

Cub Cadet 931-11691

Fix Shroud

$26.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 710-05303

Self-tappling Screw, ST5.5x25

$3.99

$

In Stock, only 2 left!

0

$9.99

$

In Stock, Qty 7

0

50

Cub Cadet 931-05508

Air Filter Cover Assembly

$28.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 937-05094

Air Filter Element

$28.99

$

In Stock, Qty 11

0

52

Cub Cadet 931-05532

Blower Housing

$79.99

$

In Stock, only 1 left!

0

$6.99

$

Usually ships in 3-6 days

0

$6.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 912-05102

Nut, M20x1.5

$8.49

$

Usually ships in 3-6 days

0

56

Cub Cadet 936-05110

Washer, 20.5x5x40

$6.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 951-15370

Cooling Fan Plate

$9.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 931-11868

Cooling Fan

$29.99

$

Usually ships in 3-6 days

0

59

$334.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 937-05067

Oil Seal, 38x58x8

$15.99

$

In Stock, only 3 left!

0

61

Cub Cadet 951-15386

he Trigger Support

$6.99

$

Usually ships in 3-6 days

0

62

$24.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 710-06517

Bolt, M5x12

$3.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 951-15387

Ignition Module

$159.99

$

In Stock, only 1 left!

0

65

Cub Cadet 710-06516

Bolt, M5x20

$3.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 710-06292

Bolt, M6x22

$5.49

$

Usually ships in 3-6 days

0

67

Cub Cadet 951-15810

Breather Cover

$18.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 951-15811

Gasket, Breather Cover

$9.99

$

Usually ships in 3-6 days

0

69

$6.49

$

Usually ships in 3-6 days

0

70

Cub Cadet 951-15398

Breather Valve

$5.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 710-04919

Bolt, M6x25

$4.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 951-15586

Charging Coil

$99.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 725-06031

Tape, L=150mm

$2.49

$

Usually ships in 3-6 days

0

74

Cub Cadet 925-06895

Wire Harness

$99.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 951-15437

Wire Harness Bracket

$4.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 710-04968

Bolt, M6x16

$6.99

$

In Stock, only 3 left!

0

77

Cub Cadet 710-04943

Bolt, M6x28

$4.49

$

In Stock, only 2 left!

0

78

Cub Cadet 951-15401

Breather Filter Screen

$5.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 951-15803

Crankcase
(Superseded to 951-15803A)

$643.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 736-05221

Washer, 10.5x1.5x18

$4.49

$

Usually ships in 3-6 days

0

81

Cub Cadet 710-06607

Bolt, M10x1x10

$4.49

$

Usually ships in 3-6 days

0

82

Cub Cadet 951-15213

Temperature Sensor

$37.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-15212

Temperature Sensor Clip

$6.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 951-15360

Crankcase Cover

$99.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 951-15805

Cylinder Head

$259.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 907-06601

Shroud, Left

$5.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 907-06596

Cylinder Head Baffle

$21.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 951-15460

Fuel pipe bracket

$7.49

$

Usually ships in 3-6 days

0

89

Cub Cadet 932-05473

Idle Spring

$7.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 951-15332

Throttle Linkage

$6.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 932-05531

Governor Spring

$8.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 932-05532

Governor Spring

$8.49

$

In Stock, only 1 left!

0

93

Cub Cadet 951-15404

Breather Hose

$11.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 951-12328

Intake Manifold Jacket

$3.99

$

In Stock, only 2 left!

0

95

Cub Cadet 710-06501

Bolt, M8x48

$5.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 931-12823

Throttle Linkage Lock Clamp

$5.49

$

Usually ships in 3-6 days

0

97

Cub Cadet 951-05310

Fuel Sprayer
(Superseded to 951-05310A)

$638.99

$

Usually ships in 3-6 days

0

98

Cub Cadet 921-04880

Gasket, Injector

$6.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 710-06505

Bolt, M8x50

$5.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 921-04914

Gasket, Intake Manifold

$9.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 951-15403

Governor Gear Shaft

$13.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 736-05188

Washer, 8.5x2x15.8

$3.49

$

Usually ships in 3-6 days

0

103

Cub Cadet 941-05216

Bearing, HK081210

$9.49

$

Usually ships in 3-6 days

0

104

Cub Cadet 714-04077

Cotter Pin

$6.49

$

In Stock, only 1 left!

0

105

Cub Cadet 951-12388

Oil Seal, 8x14x4

$4.49

$

Usually ships in 3-6 days

0

106

Cub Cadet 951-15331

Governor Lever

$9.99

$

Usually ships in 3-6 days

0

107

Cub Cadet 951-05380

Governor Gear Bracket Assembly

$28.99

$

Usually ships in 3-6 days

0

108

Cub Cadet 919-05175

Intake Manifold

$155.99

$

Usually ships in 3-6 days

0

109

Cub Cadet 710-06591

Stud, M6x35

$4.49

$

Usually ships in 3-6 days

0

110

Cub Cadet 710-06592

Stud, M6x46

$4.99

$

Usually ships in 3-6 days

0

111

Cub Cadet 951-15384

Lower Rocker Arm

$90.99

$

Usually ships in 3-6 days

0

112

$3.99

$

Usually ships in 3-6 days

0

113

Cub Cadet 951-11644

Earth Bolt

$10.99

$

In Stock, Qty 5

0

114

Cub Cadet 921-04887

Gasket, Crankcase

$23.99

$

In Stock, only 1 left!

0

115

Cub Cadet 951-15366

Crankshaft

$429.99

$

Usually ships in 3-6 days

0

116

Cub Cadet 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

117

Cub Cadet 736-05187

Washer, 38.5x1x54

$4.49

$

Usually ships in 3-6 days

0

118

Cub Cadet 941-05213

Bearing, 6003

$11.99

$

Usually ships in 3-6 days

0

119

$179.99

$

Usually ships in 3-6 days

0

120

Cub Cadet 951-05379

Governor Gear

$21.99

$

Usually ships in 3-6 days

0

121

Cub Cadet 710-05003

Bolt, M6x18

$4.49

$

In Stock, only 4 left!

0

122

$78.99

$

Usually ships in 3-6 days

0

123

Cub Cadet 921-04916

Gasket, Oil Pump

$6.49

$

Usually ships in 3-6 days

0

124

Cub Cadet 715-04088

Pin, 8x8
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

125

Cub Cadet 932-05534

Oil Pump Spring

$5.49

$

Usually ships in 3-6 days

0

126

Cub Cadet 951-15588

Steel Ball, 9.5

$3.99

$

Usually ships in 3-6 days

0

127

Cub Cadet 951-15383

Filter Screw

$11.99

$

Usually ships in 3-6 days

0

128

Cub Cadet 736-05199

Washer, 17.4x1x25.9

$4.49

$

Usually ships in 3-6 days

0

129

Cub Cadet 951-15589

O-Ring, 13.2x2.65

$3.99

$

Usually ships in 3-6 days

0

130

Cub Cadet 951-15590

Pin, 14x10x12.5

$3.99

$

Usually ships in 3-6 days

0

131

Cub Cadet 951-05450A

Dipstick
(Superseded to 951-05450B)

$33.99

$

Usually ships in 3-6 days

0

132

Cub Cadet 710-05234

Bolt, M6x55

$5.99

$

Usually ships in 3-6 days

0

133

Cub Cadet 951-11501

Oil Filter
(Superseded to 951-12690)

$17.99

$

In Stock, Qty 20+

0

134

Cub Cadet 951-12253

Connection Pipe

$7.99

$

Usually ships in 3-6 days

0

135

Cub Cadet 925-07500

Starter Relay

$89.99

$

Usually ships in 3-6 days

0

136

Cub Cadet 925-07499

Electric Starter

$391.99

$

In Stock, only 1 left!

0

Cub Cadet 952Z9Q78XU

Complete Engine

$1824.99

$

Usually ships in 3-6 days

0
