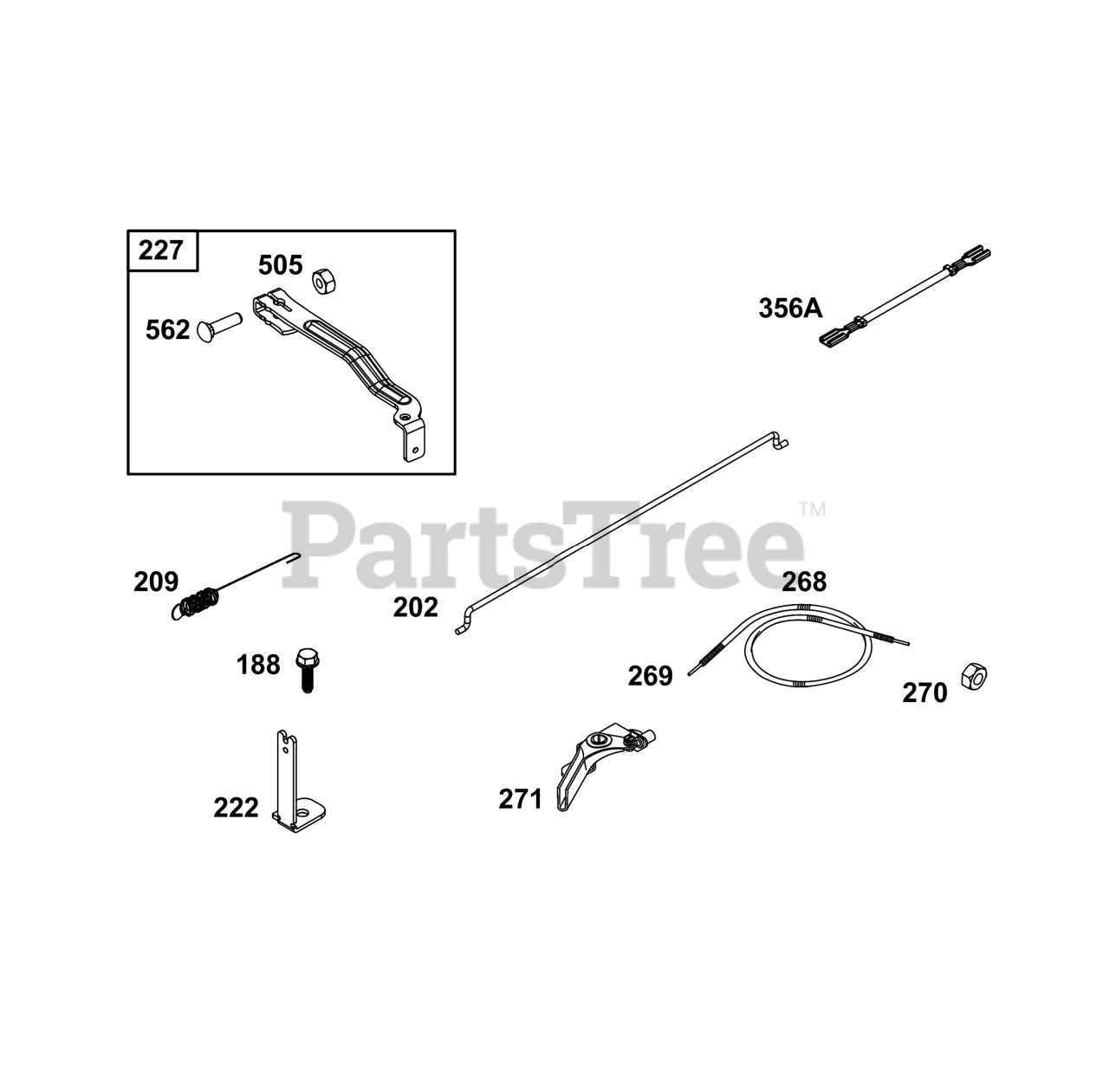

9P702-0299-F1 - Briggs & Stratton Vertical Engine Controls Group Parts Diagram

Vertical Engine

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 793480

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, only 2 left!

0

202

Briggs & Stratton 590517

LINK, Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 597377

SPRING, Governor

$7.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 596754

BRACKET, Control

$34.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 590520

LEVER, Governor Control

$14.99

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 691025

CASING, Control Wire

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

LEVER, Control

$45.99

$

Usually ships in 2-12 days

0

356A

WIRE, Stop

Note: (Part information located in Flywheel/Ignition/Starter Group.)

$

$

Not available

505

Briggs & Stratton 793515

NUT

Note: (Governor Control Lever)

$3.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 793514

BOLT

Note: (Governor Lever)

$7.49

$

Usually ships in 2-12 days

0
