9P702-0191-H5 - Briggs & Stratton Vertical Engine Flywheel, Ignition, and Starter Group Parts Diagram

Vertical Engine

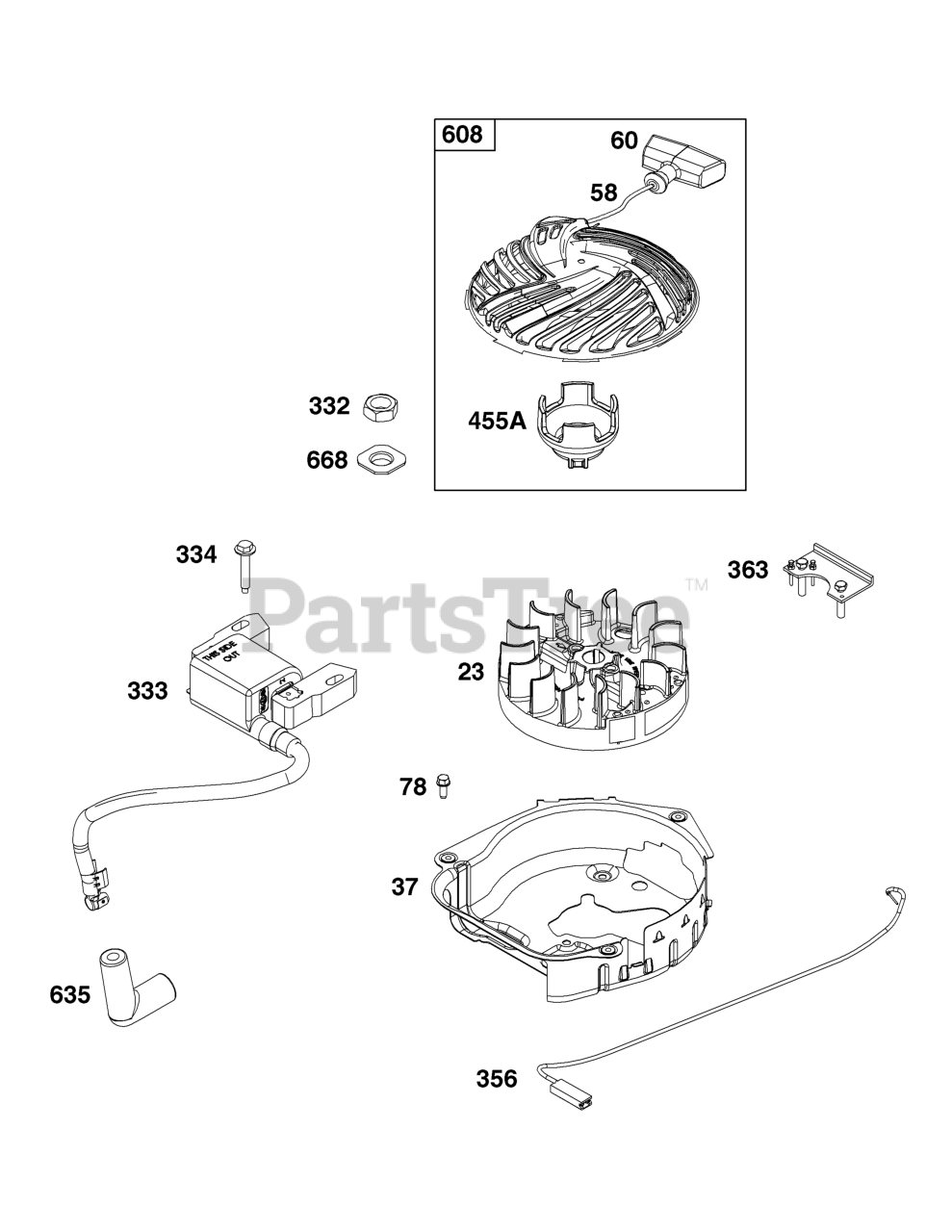

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 590544

FLYWHEEL

$82.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 594729

GUARD, Flywheel

$21.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 591108

ROPE, Starter

$7.99

$

In Stock, only 1 left!

0

60

Briggs & Stratton 691915

GRIP, Starter Rope

$6.49

$

In Stock, Qty 11

0

78

Briggs & Stratton 793480

SCREW

Note: (Flywheel Guard)

$3.99

$

In Stock, Qty 20+

0

332

Briggs & Stratton 690662

NUT

Note: (Flywheel)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 593872

ARMATURE, Magneto
(Superseded to 84005272)

$31.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 84002396

WIRE, Stop
(Superseded to 594509)

$4.49

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19619

PULLER, Flywheel

$116.99

$

Usually ships in 2-12 days

0

455A

Briggs & Stratton 593960

CUP, Flywheel

$11.99

$

In Stock, Qty 15

0

608

Briggs & Stratton 593959

STARTER, Rewind

$46.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

668

Briggs & Stratton 590546

SPACER

$3.99

$

In Stock, only 3 left!

0
